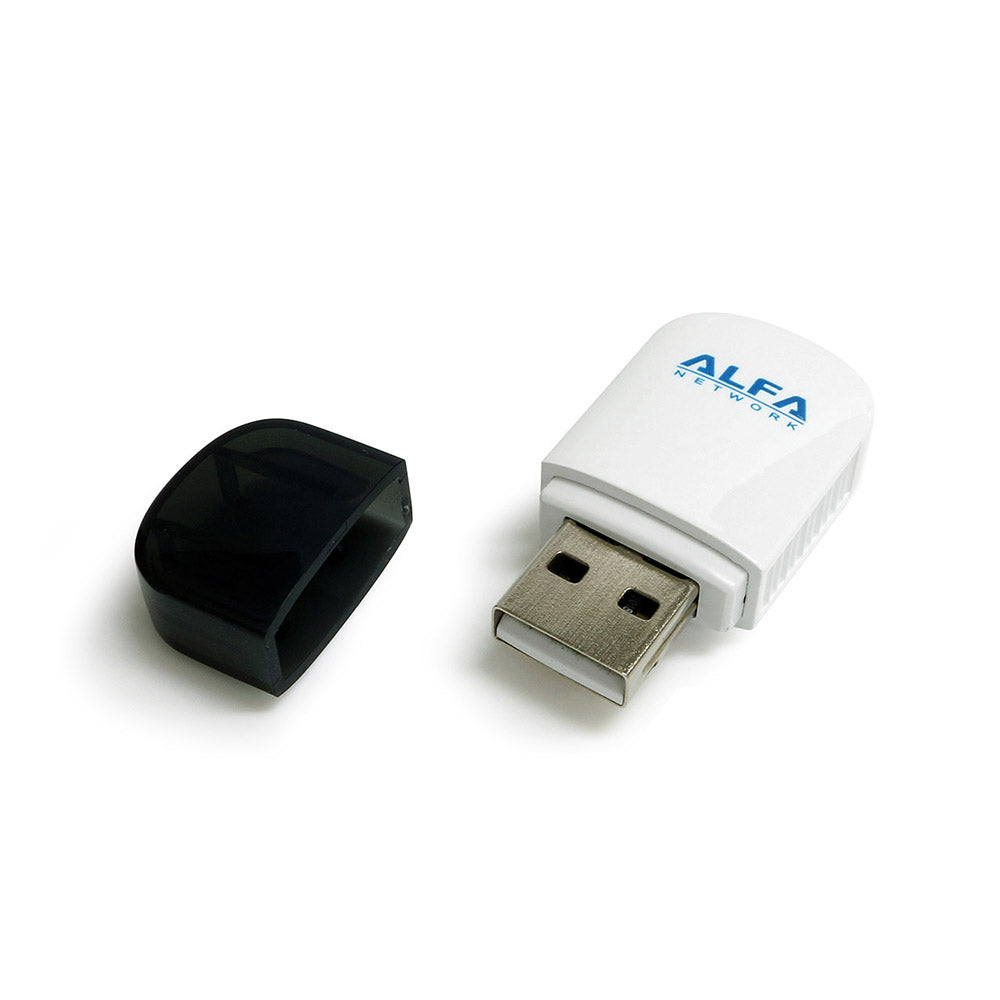

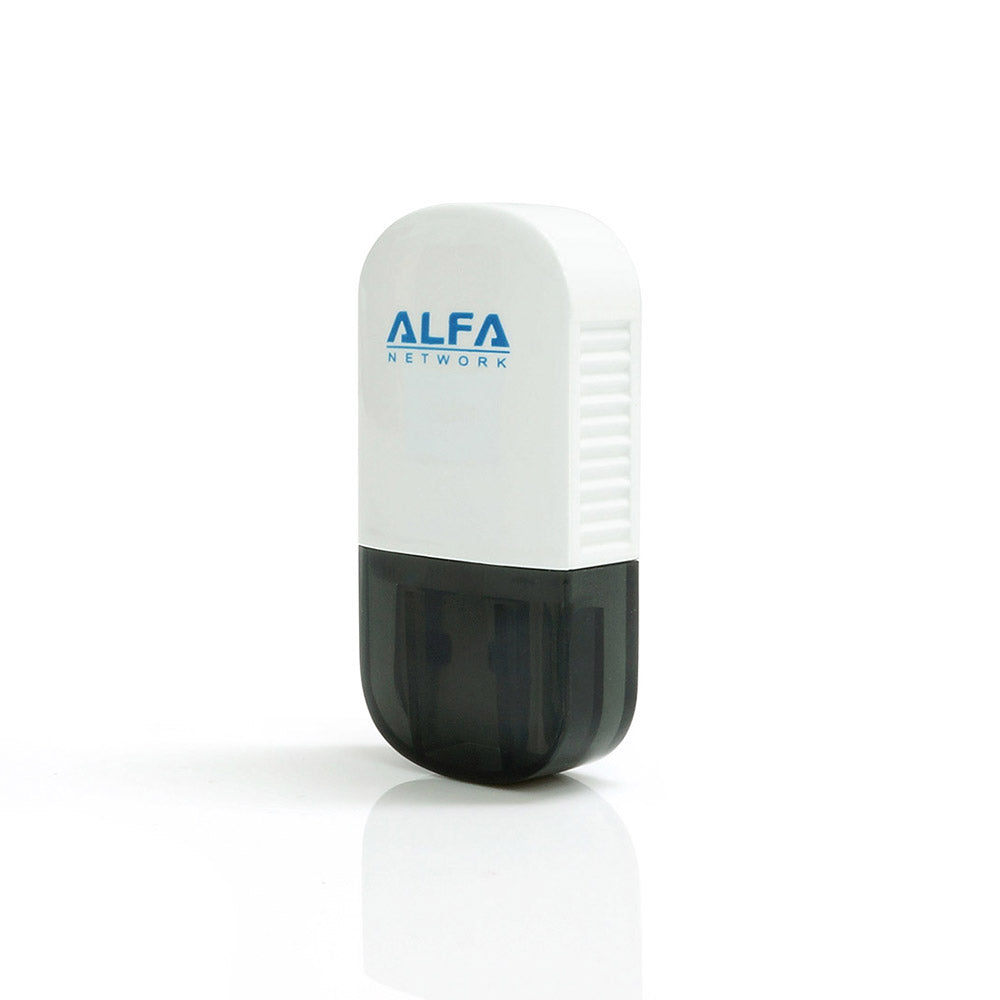

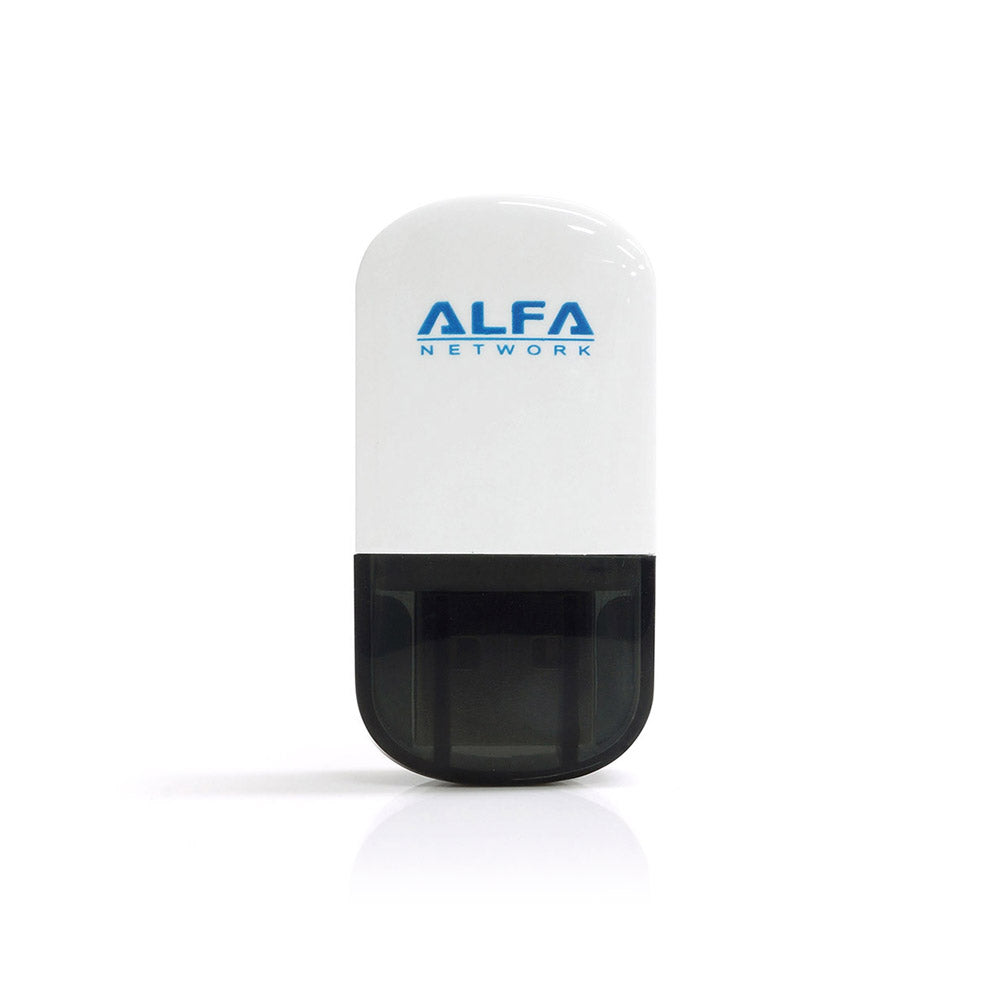

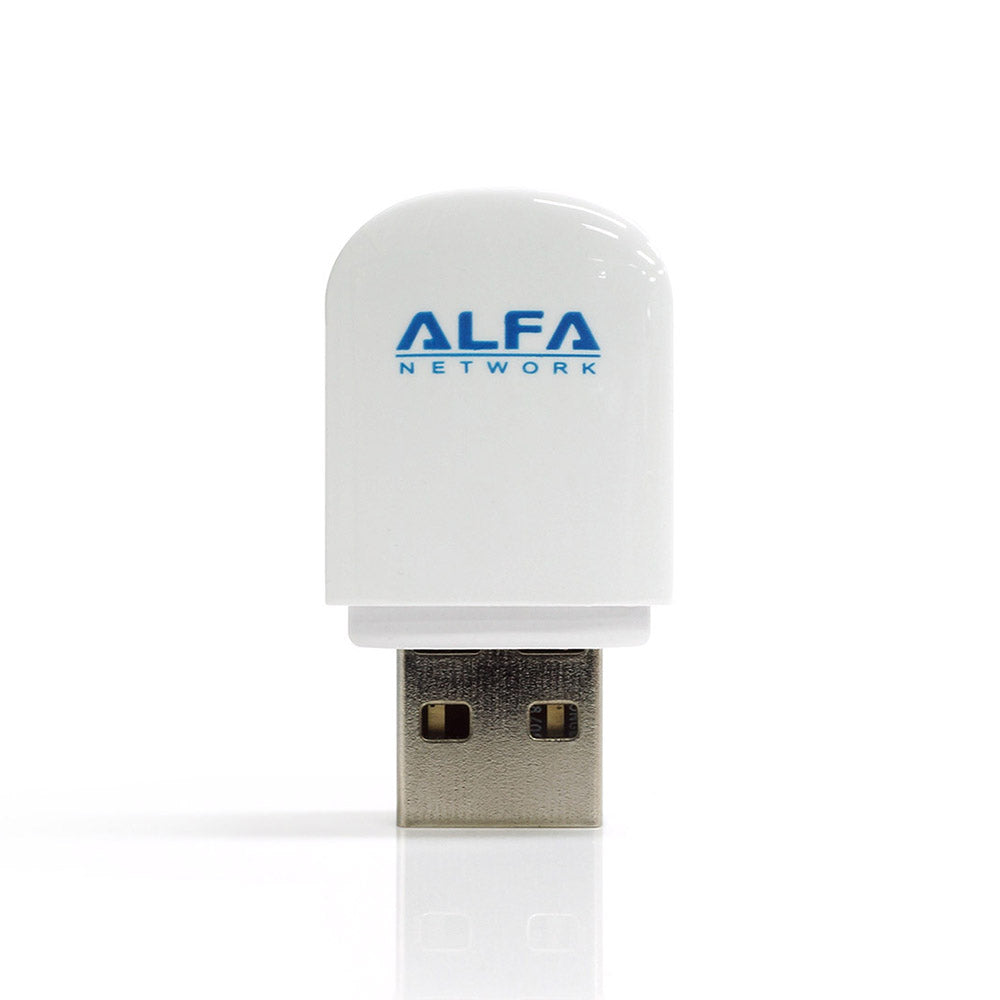

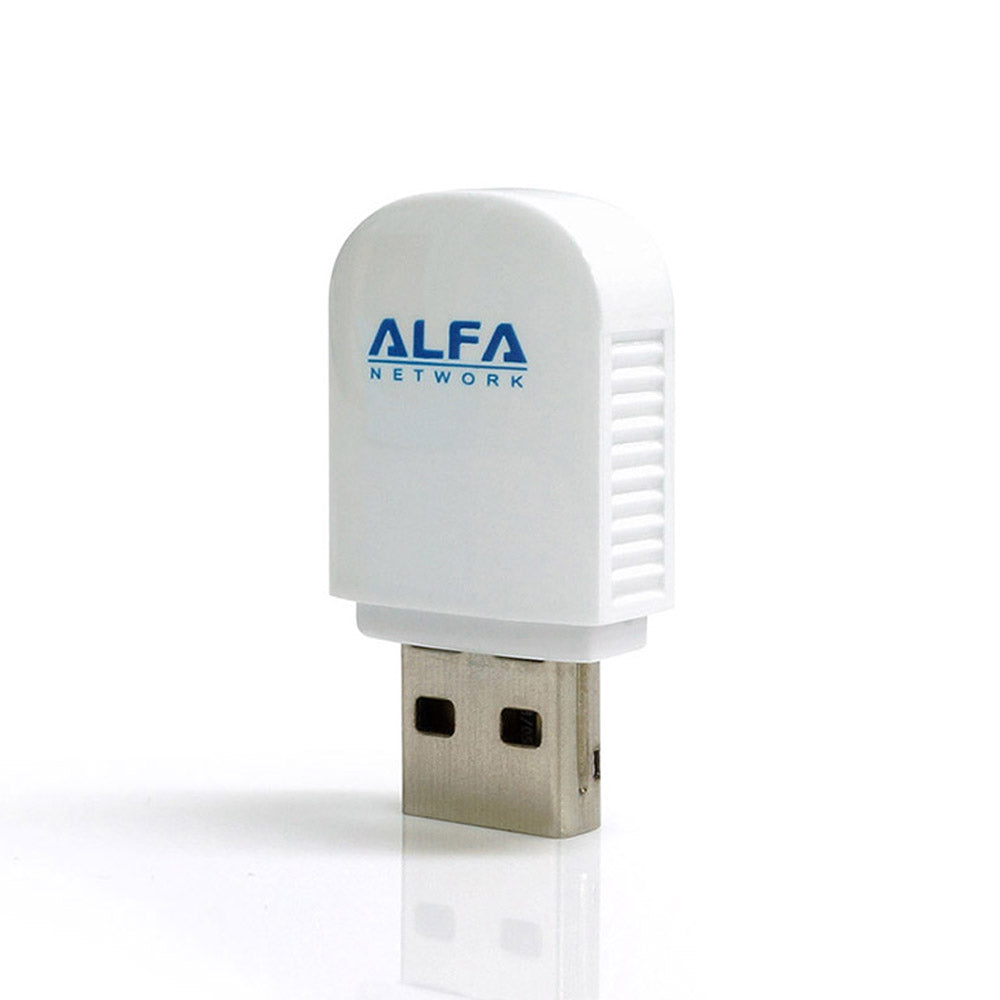

AWUS036EACS

AWUS036EACS

AWUS036EACS

802.11ac WiFi + BT USB Adapter

Key features

Dual-Band: alternative 11AC (5.8 G) and 11N (2.4 G) connections for TV shows, HD movies, streaming, and online gaming to avoid wireless interference.
High-Speed: 433 Mbps wireless speed at 5.8 GHz band or 150 Mbps speed at 2.4GHz band.
Soft AP: support Soft AP mode to create a Wi-Fi hotspot.
Mini & portable design: for easy carrying and convenient to use.

Specifications

Parameter	Value
Chipset	RTL8821CU
WiFi Standards	IEEE 802.11 a/b/g/n/ac Bluetooth 4.2
WiFi Frequency	WiFi: 2.412 GHz – 2.472 GHz 5.15 GHz – 5.825 GHz BT: 2.4 GHz
Data-Rate	802.11b: 11 Mbps 802.11g: 54 Mbps 802.11n: 150 Mbps 802.11ac: 433 Mbps
Antenna Gain	2 dBi
OS Support	Windows XP, Vista, 7, 8, 10 Linux
Output Power(Typical)	17 dBm
Security	WEP Encryption, WPA-PSK,WPA2-PSK, WPA/WPA2 64/128bit Encryption
Sensitivity	802.11b: -85 dBm@11 Mbps 802.11g: -69 dBm@54 Mbps 802.11n: -68 dBm@150 Mbps 802.11ac: -59 dBm@433 Mbps
Operating Temperature	-10 ° ~ 60 °C
Storage Humidity	5 % ~ 98 % (Non-condensing)
Dimension	40 x 20.5 x 10.5 mm
Weight	5.6 g
