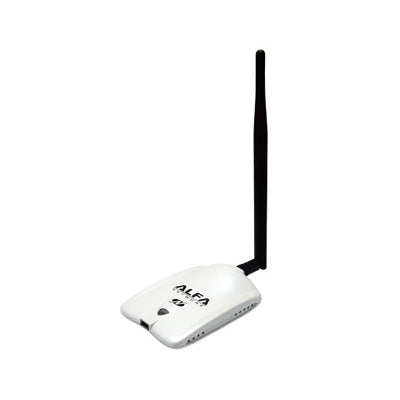

AWUS036NHR

802.11 b/g/n 2W Long-Range USB Adpater

Compatible with IEEE 802.11n,802.11b/g/n wireless standards
2.4GHz frequency band, MIMO (Multiple Input Multiple Output)
Complies with Universal Serial Bus Rev. 2.0 specifications
High speed transfer TX data rate up to 150 Mbps
Supports wireless data encryption with 64/128-bit WEP, WPA, WPA2, TKIP, AES
Wide Range coverage
Support software AP
Compliant with FCC Part 15.247 for US, ETS 300 328 for Europe
Supports driver for Windows 2000, XP 32/64, Vista 32/64, Windows 7
Mac (10.4.x/10.5.x/10.6.x) Power PC& PC.

Description

AWUS036NHR is the IEEE 802.11b/g/n Wireless USB adapter provides users to launch IEEE 802.11b/g/n wireless network at 150 Mbps in the 2.4GHz band, which is also compatible with IEEE 802.11b/g wireless devices at 54 Mbps. You can configure AWUS036NHR with ad-hoc mode to connect to other 2.4GHz wireless computers, or with Infrastructure mode to connect to a wireless AP or router for accessing to Internet.

AWUS036NHR includes a convenient Utility for scanning available networks and saving preferred networks that users usually connected with. Security encryption can also be configured by this utility.

Specifications

Standards	Wireless IEEE 802.11b/g/n
Data Rate	802.11b: 11 Mbps 802.11g: 54 Mpbs 802.11n: 150 Mpbs
OS Supported	Windows XP, Windows Vista, Windows 7 Mac 10.4, 10.5, and 10.6 Support S/W AP
Interface	USB 2.0 mini USB
Antenna Type	1 x 2.4GHz RP-SMA connector
Chipset	Realtek RTL8188RU
Antenna	5 dBi 2.4GHz Antenna
Frequency Range	2.412GHz ~ 2.483GHz
Channels	1 ~ 11 channels (North America) 1 ~ 13 channels (EU) 1 ~ 14 channels (Japan)
Output Power	802.11b: 33 dBm±2 802.11g: 32 dBm±2 802.11n(HT20): 32 dBm±2 802.11n(HT40): 33 dBm±2
Sensitivity	11b: -96dBm 11g: -92dBm 11n: -91dBm
Data Modulation Type	BPSK, QPSK, CCK and OFDM
Power	Voltage: 5V ± 5%
Security	WEP 64/128 802.11X support Wi-Fi Protected Access(WPA) WPA-PSK WPA2-PSK Cisco CCX support WAPI-PSK WAPI-PSK WAPI-CERT
Operating Temp	0℃ ~ 50℃
Storage	-10℃ ~ 65℃
Humidity	5% ~ 98% non-condensing
