AWUS4373

AWUS4373

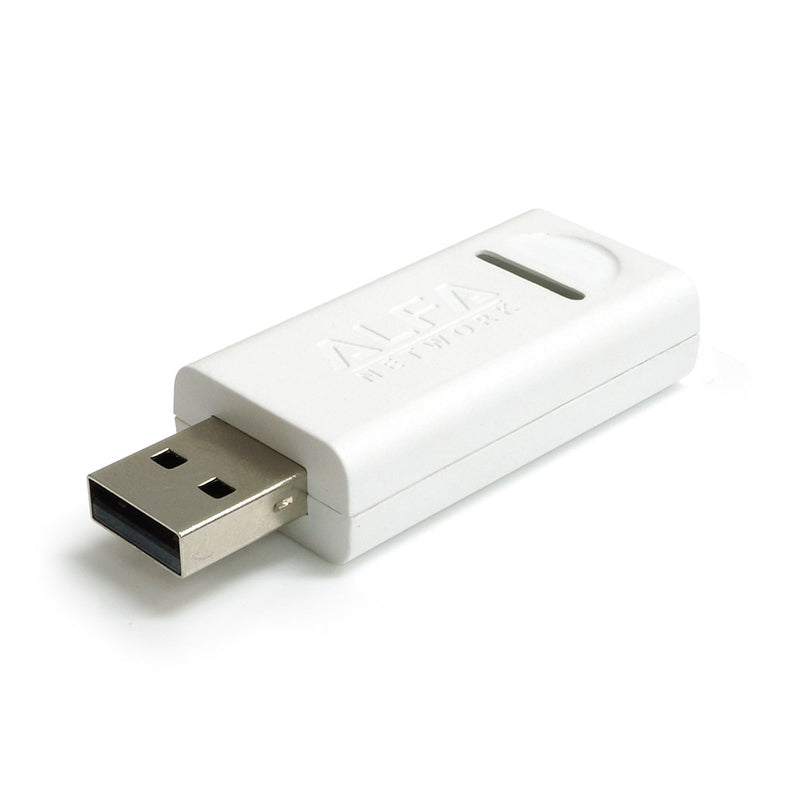

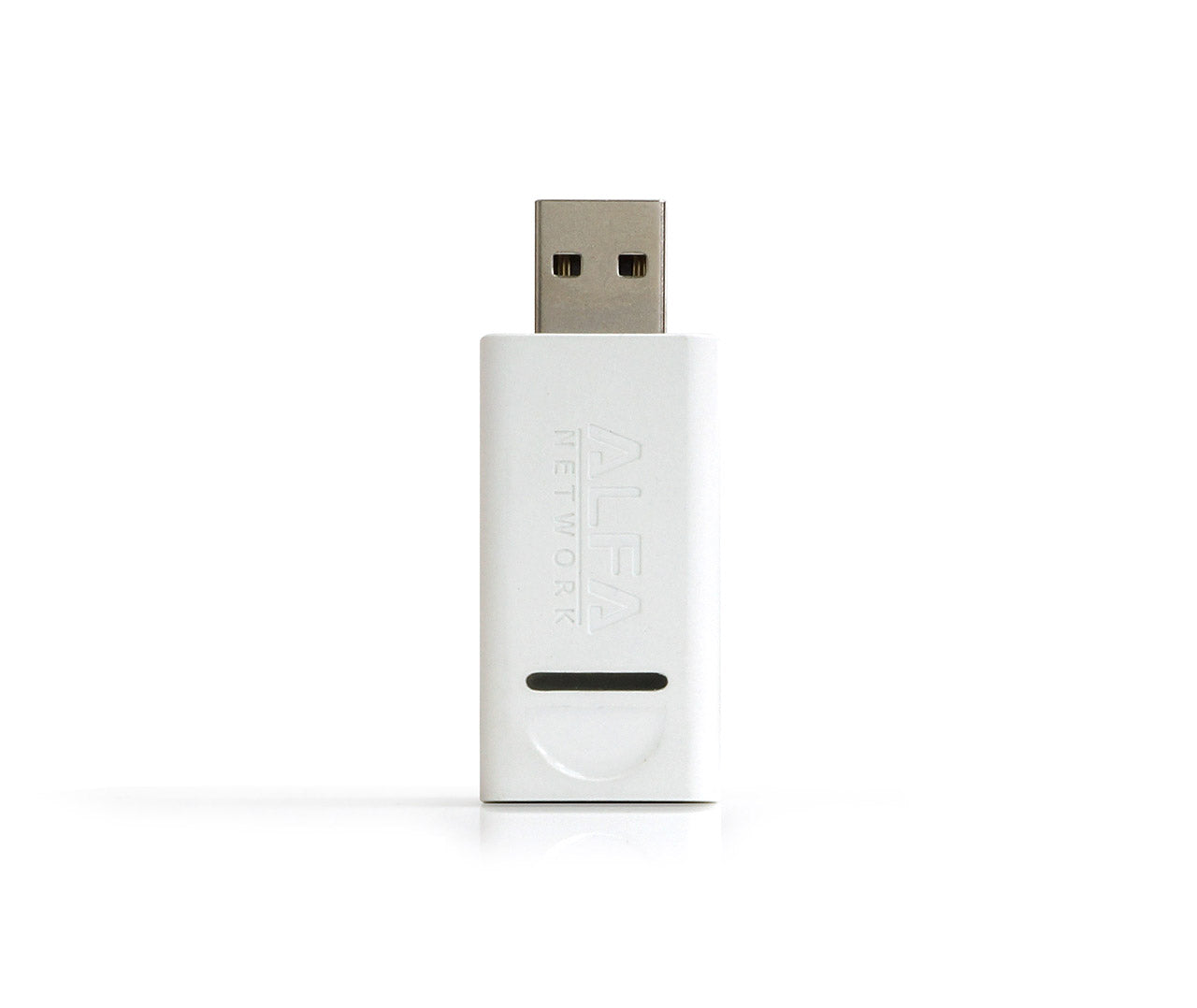

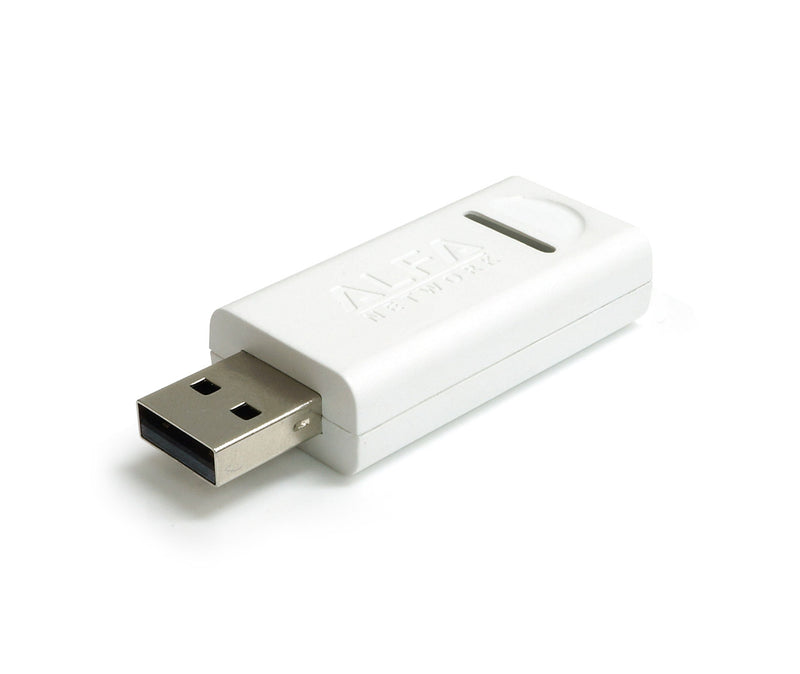

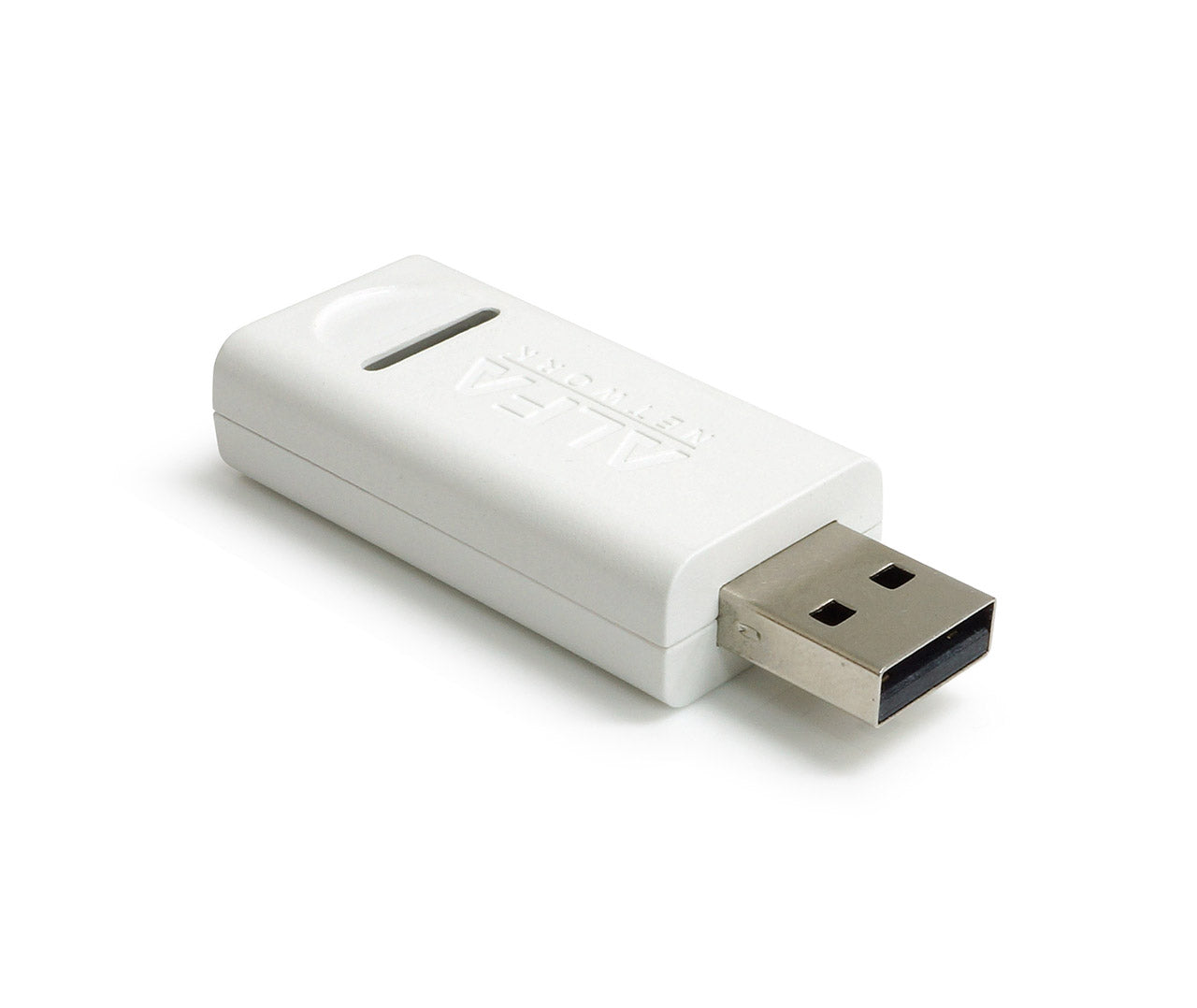

AWUS4373 is the Cypress CYW4373E WiFi 5 + Bluetooth v5.2 industrial USB adapter.

The AWUS4373 is the highest level of integration for embedded and IoT wireless systems with integrated single-stream IEEE 802.11a/b/g/n/ac and Bluetooth v5.2.
AWUS4373 includes a power management unit (PMU) which simplifies the system power topology and allows for direct operation from a mobile platform battery while maximizing battery life. AWUS4373 also implements highly sophisticated enhanced collaborative coexistence hardware mechanisms and algorithms, which ensure that WLAN and Bluetooth collaboration is optimized for maximum performance.



Key features

  1. Cypress CYW4373E chipset
  2. USB 2.0 Type-A connector
  3. Internal antenna design
  4. LED indicator
  5. Compact size
  6. Industrial temperature range



Specifications

Chipset

Cypress CYW4373E

Standards



WiFi IEEE 802.11 a/b/g/n/ac

Bluetooth 5.2

Interface

USB 2.0 Type-A

Antenna

Integrated

Frequency range



WLAN: 2.4 GHz / 5 GHz

Bluetooth: 2.4 GHz

Power

5V

Operating temperature

-40°C - 85°C (-40°F - 185°F)

Storage temperature

-40°C - 125°C (-40°F - 257°F)

Operating humidity

10% ~ 85% (non-condensing)

Dimensions

56.1 x 22.2 x 11.6 mm (2.2 x 0.9 x 0.46 inches)

Weight

10.6 g (0.02 lbs)
