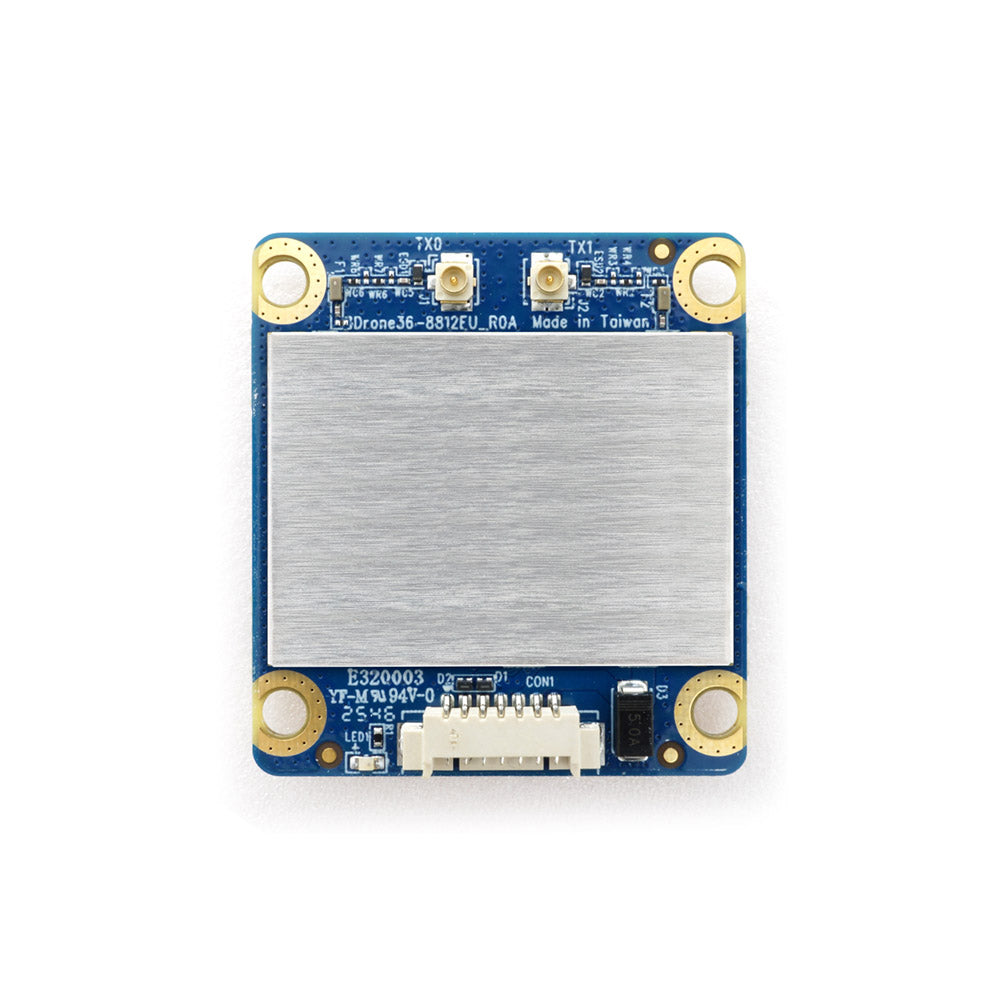

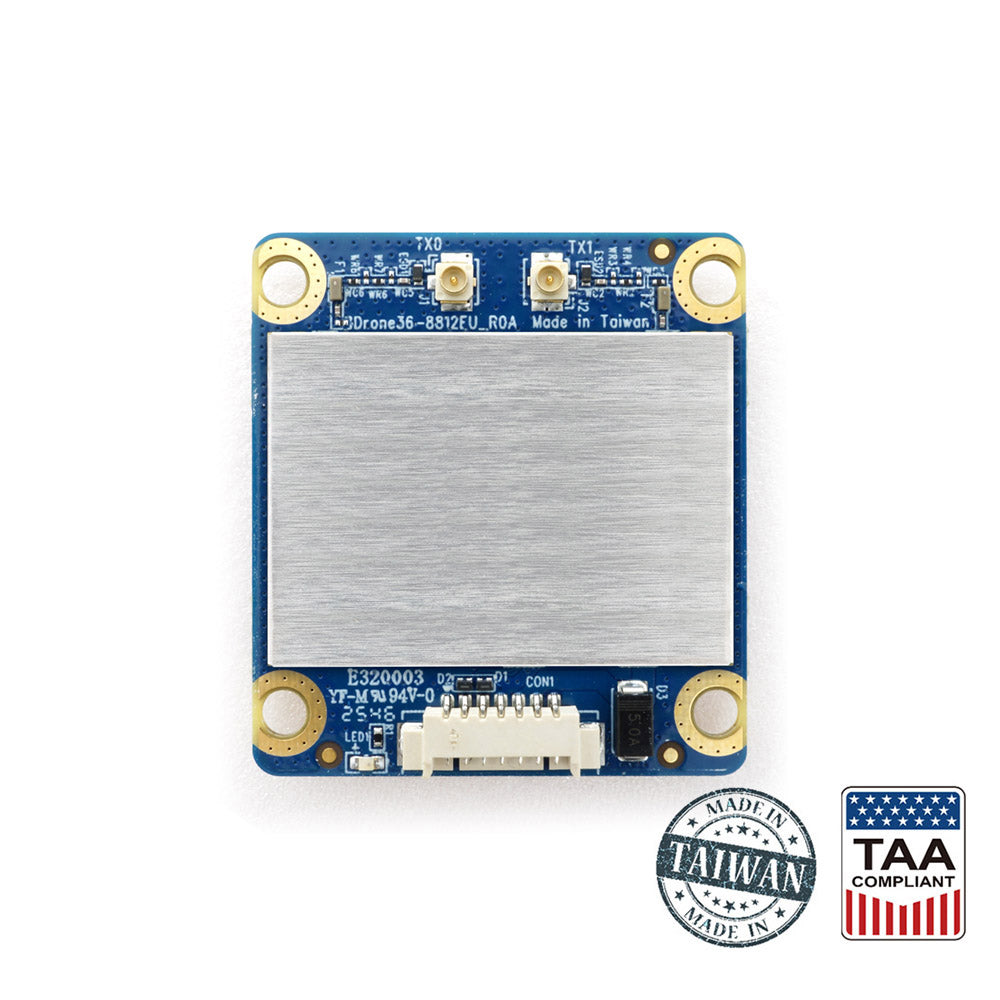

Drone36

Drone36 is a compact, high-power 5 GHz 802.11ac wireless module powered by Realtek RTL8812EU. Its built-in high-power FEM and 10 MHz narrow channel support help extend range and improve link robustness, making it an excellent choice for long-distance HD video transmission in IP surveillance, UAV/FPV, robotics, and remote monitoring deployments.

Key point

1. Chipset: RTL8812EU

2. RF Connector: IPEX

3. USB Connector: 7 Pins wafer pitch 1.25mm

4. Screw Hole: 3 mm

Technical Features:

Extended Range:
Built-in high-power Front-End Module (FEM) for superior signal penetration.
Narrow Bandwidth Support:
Supports 10 MHz narrowband channels to significantly extend WLAN communication
range.
High-Speed Transmission:
PHY rates up to 867 Mbps ensure smooth, high-definition video streaming.
UAV Optimized:
The ideal solution for long-range wireless video transmission in UAVs and IP camera
systems.

Specifications
