High-power WiFi4 outdoor AP/CPE platform with dual Ethernet, PoE support and USB 2.0

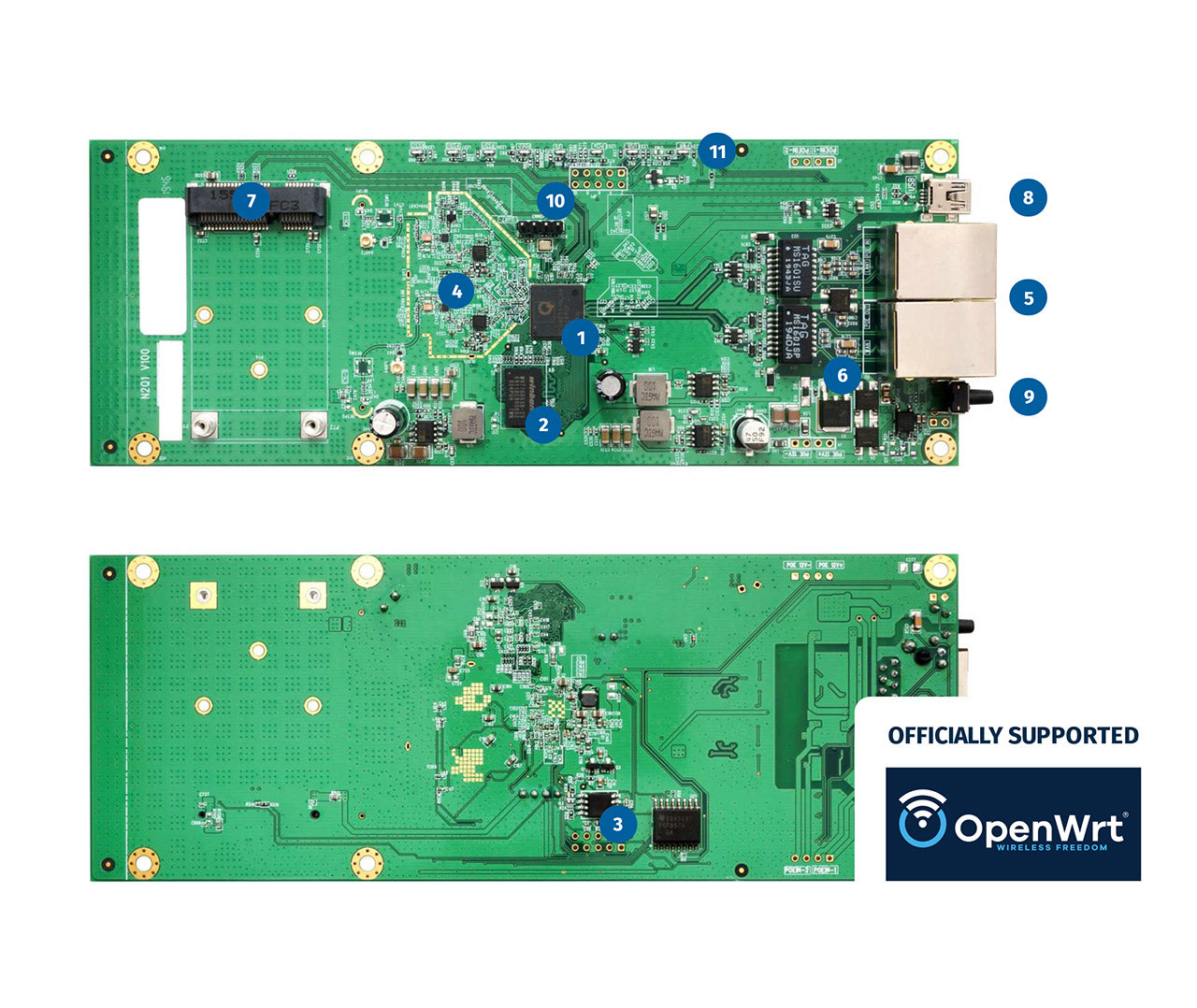

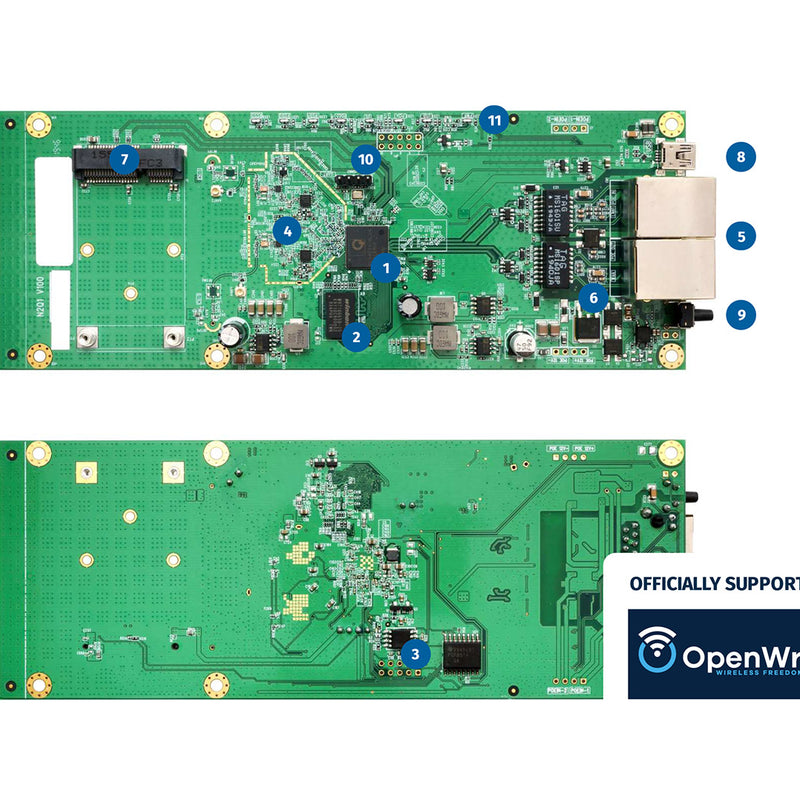

  1. Qualcomm™ QCA9531 (650 MHz single-core MIPS)
  2. 128 MB of DDR2 RAM
  3. 16, 32 or 64 MB of SPI NOR flash
  4. Integrated WiFi N300 2.4 GHz (up to 27 dBm)
  5. 2× Fast Ethernet with ESD protection
  6. Support for passive PoE input and pass-through (support for optional 802.3at/af standard module)
  7. 1× mini PCIe slot for high-power cards
  8. 1× USB 2.0 mini Type-B (host)
  9. 1× push-button
  10. 4-pin console and 10-pin LED headers
  11. 8× LED

N2Q PCBA is a high-power WiFi4 2.4 GHz AP/CPE outdoor board, equipped with mini PCIe, Ethernet with PoE support and USB 2.0

N2Q offers an integrated 802.11b/g/n WiFi radio (2.4 GHz, N300, up to 27 dBm) with IPEX/U.FL antenna connectors, dual Fast Ethernet with support for passive PoE input and output (pass-through), mini PCIe slot for second radio and USB 2.0.

With extra voltage for high-power 802.11a/ac WiFi modules in mini PCIe slot and USB 2.0 mini Type-B interface, this board is perfect for various outdoor applications.

Official OpenWrt support, web-based recovery and system serial console access make development extremely easy.

Parameter Value
SOC Qualcomm™ QCA9531 with 650 MHz single-core MIPS 24Kc CPU
RAM 128 MB of DDR2
Flash 16, 32 or 64 MB of SPI NOR flash
WiFi 802.11b/g/n 2T2R 2.4 GHz
2× IPEX/U.FL antenna connectors
USB 1× USB 2.0 mini Type-B (host)
Ethernet 2× Fast Ethernet with ESD protection
Expansion 1× mini PCIe for WiFi module (PCIe ×1, additional 4.2 V supply)
Pin headers 1× 4-pin system serial console (2.54 mm pitch)
1× 10-pin LED, 1× 2-pin push-button (2.54 mm pitch)
Button 1× push-button (reset)
LED 1× power/PoE IN (green)
1× USB (green)
1× PCIe (green)
1× WLAN (green)
1× PoE OUT (green)
3× signal level (red, orange, green)
Other External hardware watchdog
Software U-Boot with web-based firmware recovery support
Officially supported in OpenWrt (Linux Kernel 5.4)
Power supply Passive PoE (12~36 V DC) input and output (pass-through)
Support for optional 802.3at/af standard module
Mounting holes ∅ 3 mm, 64 × 176 mm, 64 × 126.5 mm
Dimensions 72 × 192 × 17 mm
Operating humidity 5 % ~ 95 % RH, non-condensing
Operating temperature -40 ° ~ 65 ° C
