Tube-2HQ_PCBA
Tube-2HQ_PCBA
High-power outdoor AP/CPE board with Fast Ethernet and PoE support Passive 24 V PoE

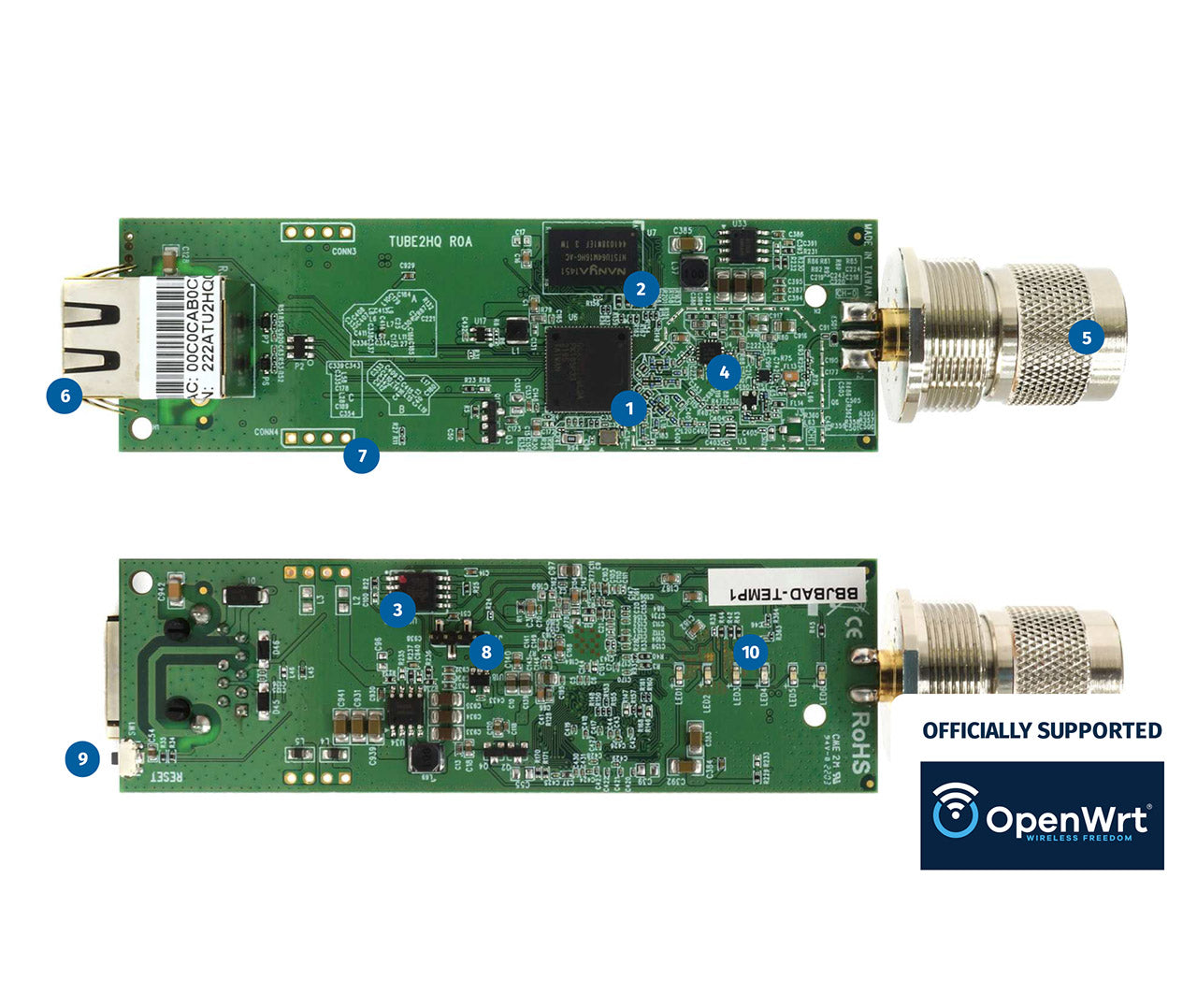

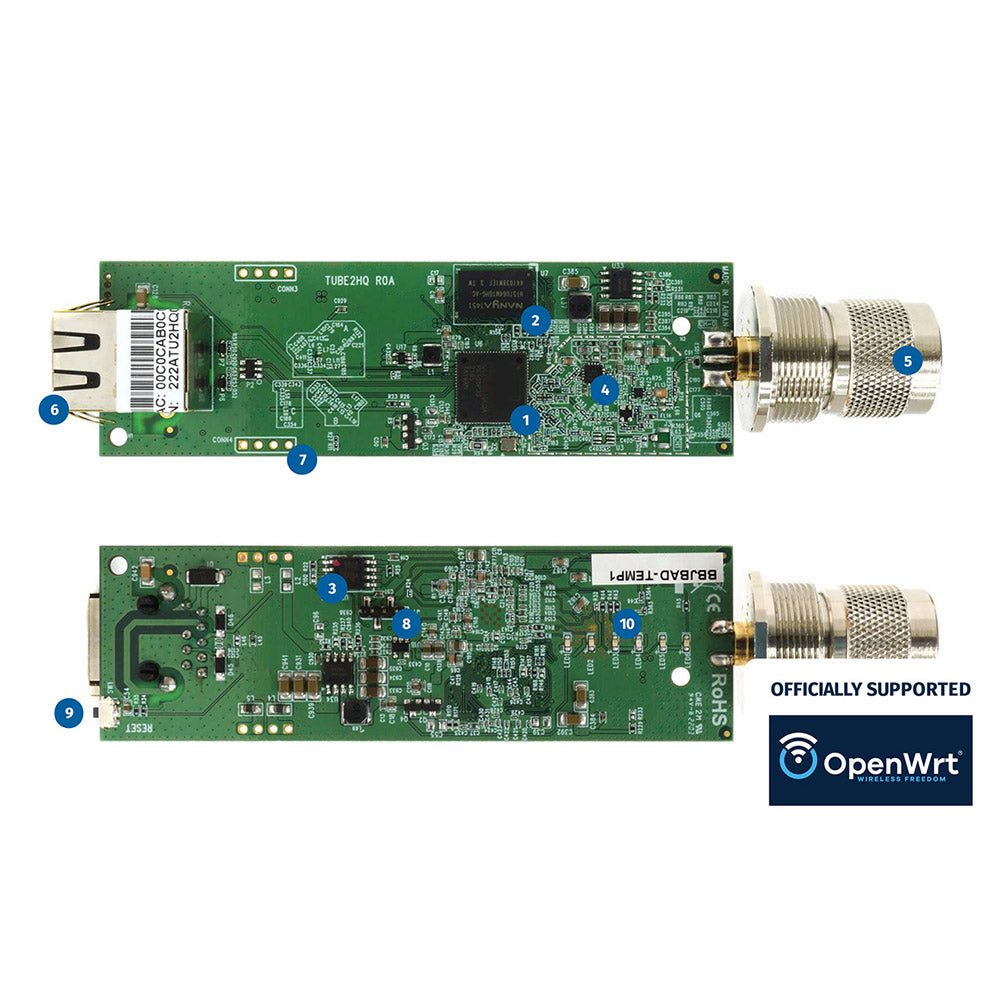

- (1) Qualcomm™ QCA9531 (650 MHz single-core MIPS)
- (2) 64 or 128 MB of DDR2 RAM
- (3) 16, 32 or 64 MB of SPI NOR flash
- (4) Integrated high-power 2.4 GHz WiFi (up to 27 dBm)
- (5) 1x Type-N (male) antenna connector
- (6) 1x Fast Ethernet with ESD protection
- (7) Support for optional 802.3at/af PoE module
- (8) 4-pin system console header
- (9) 1x push-button
- (10) 6x LED

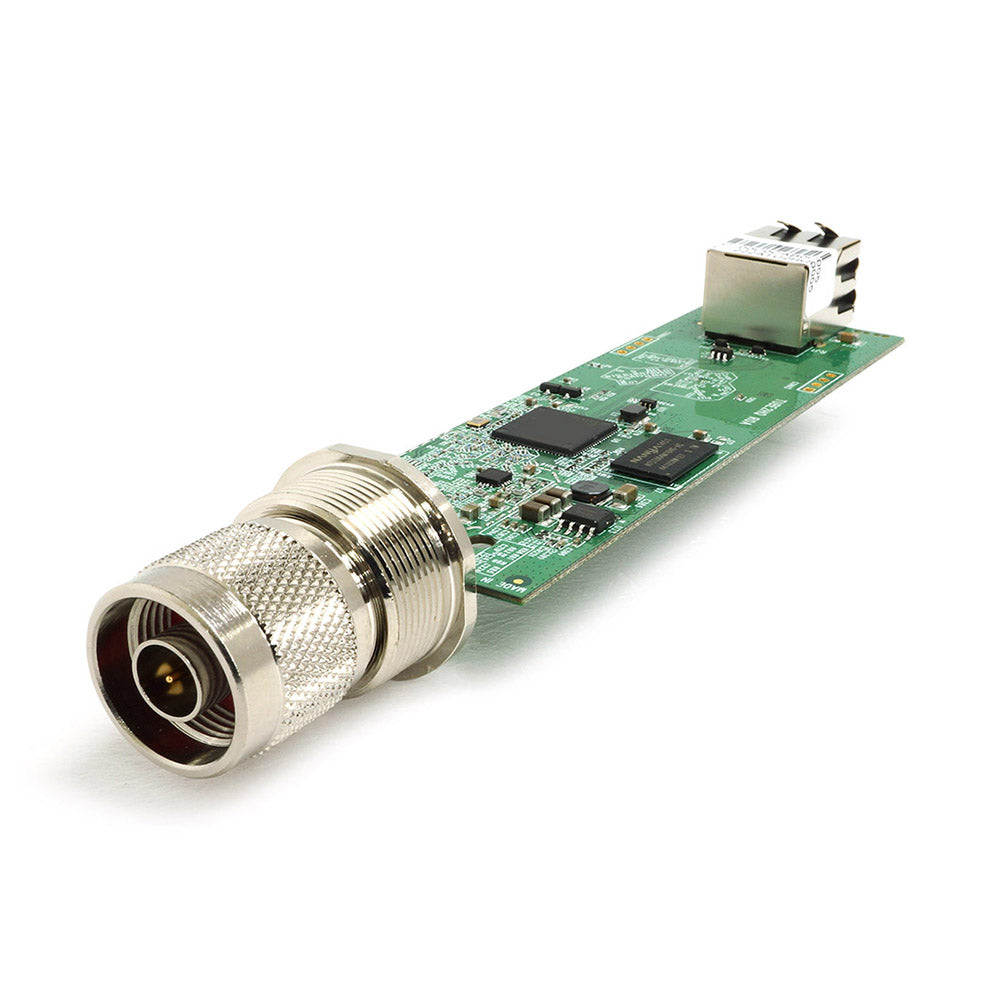

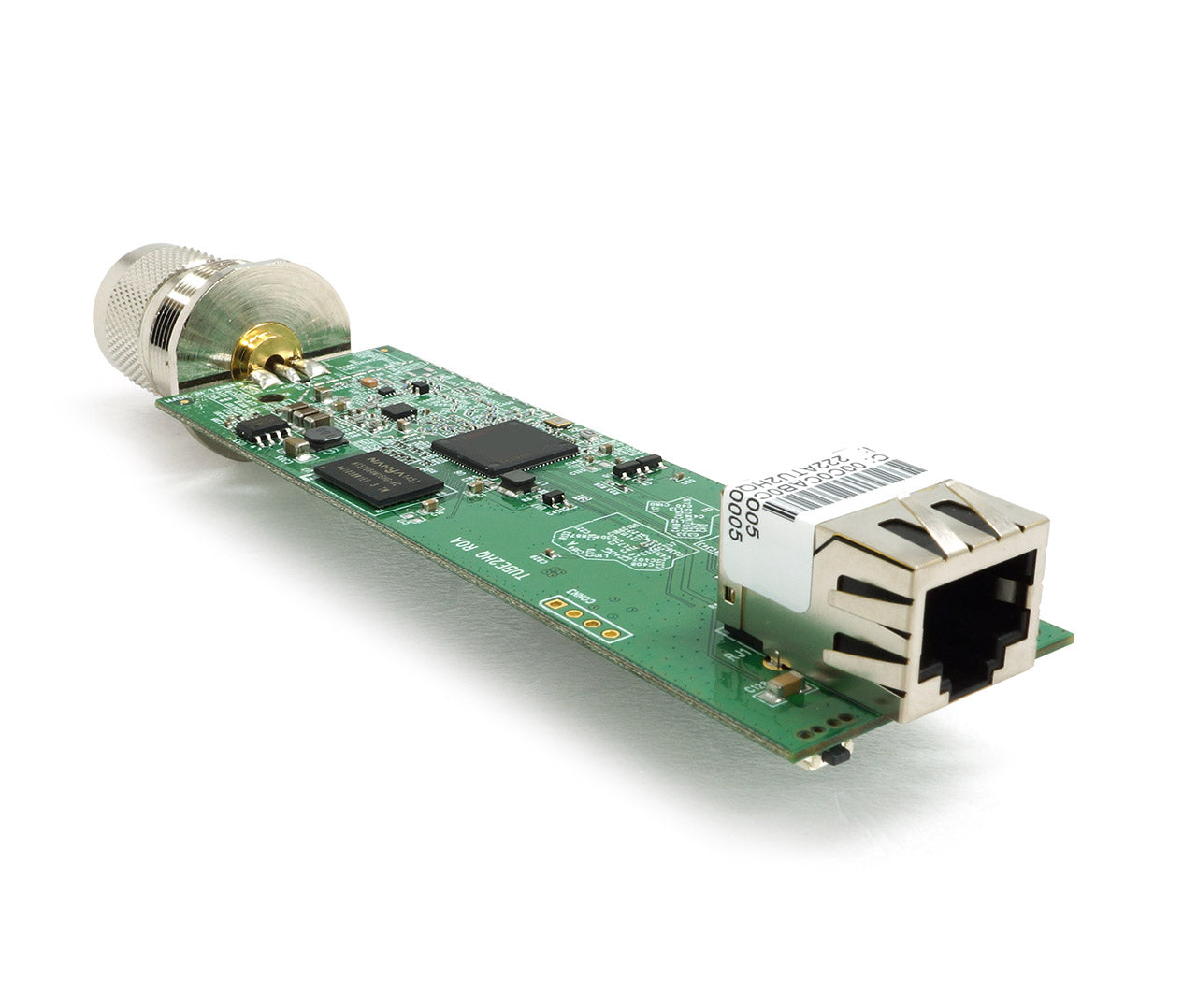

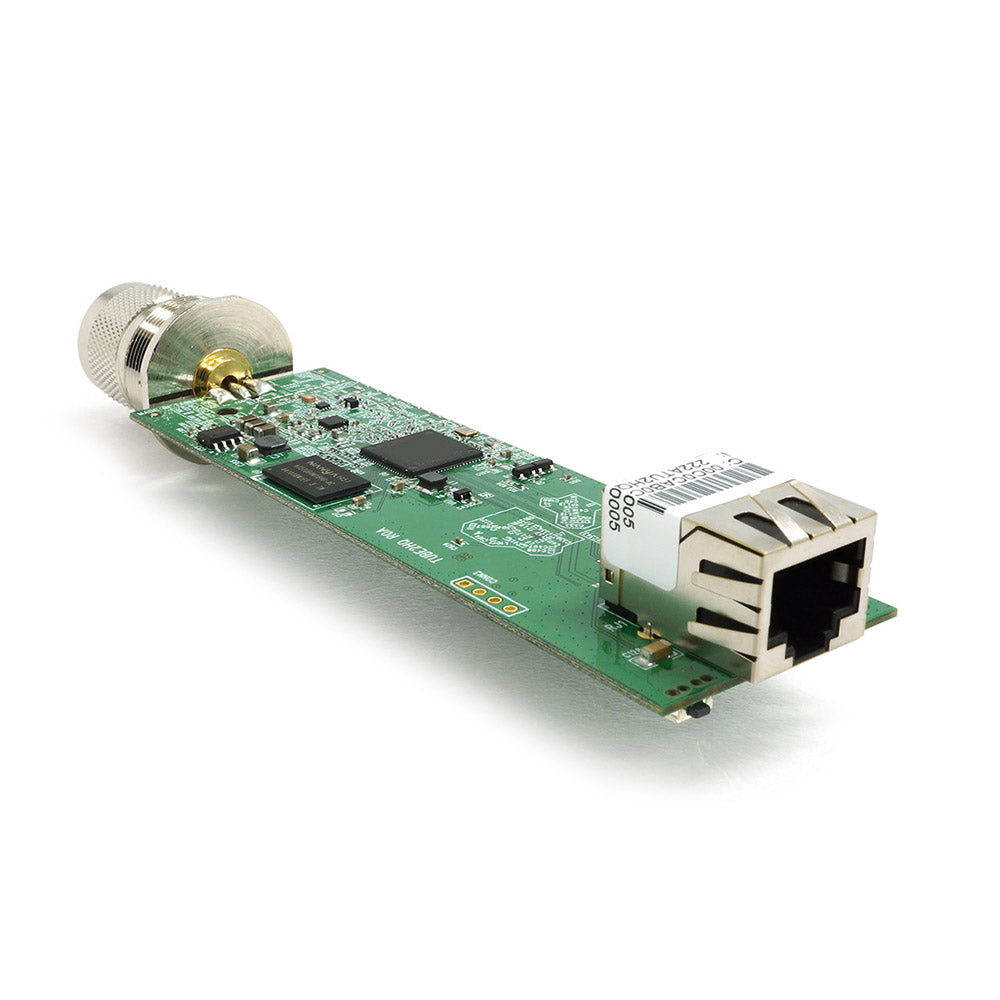

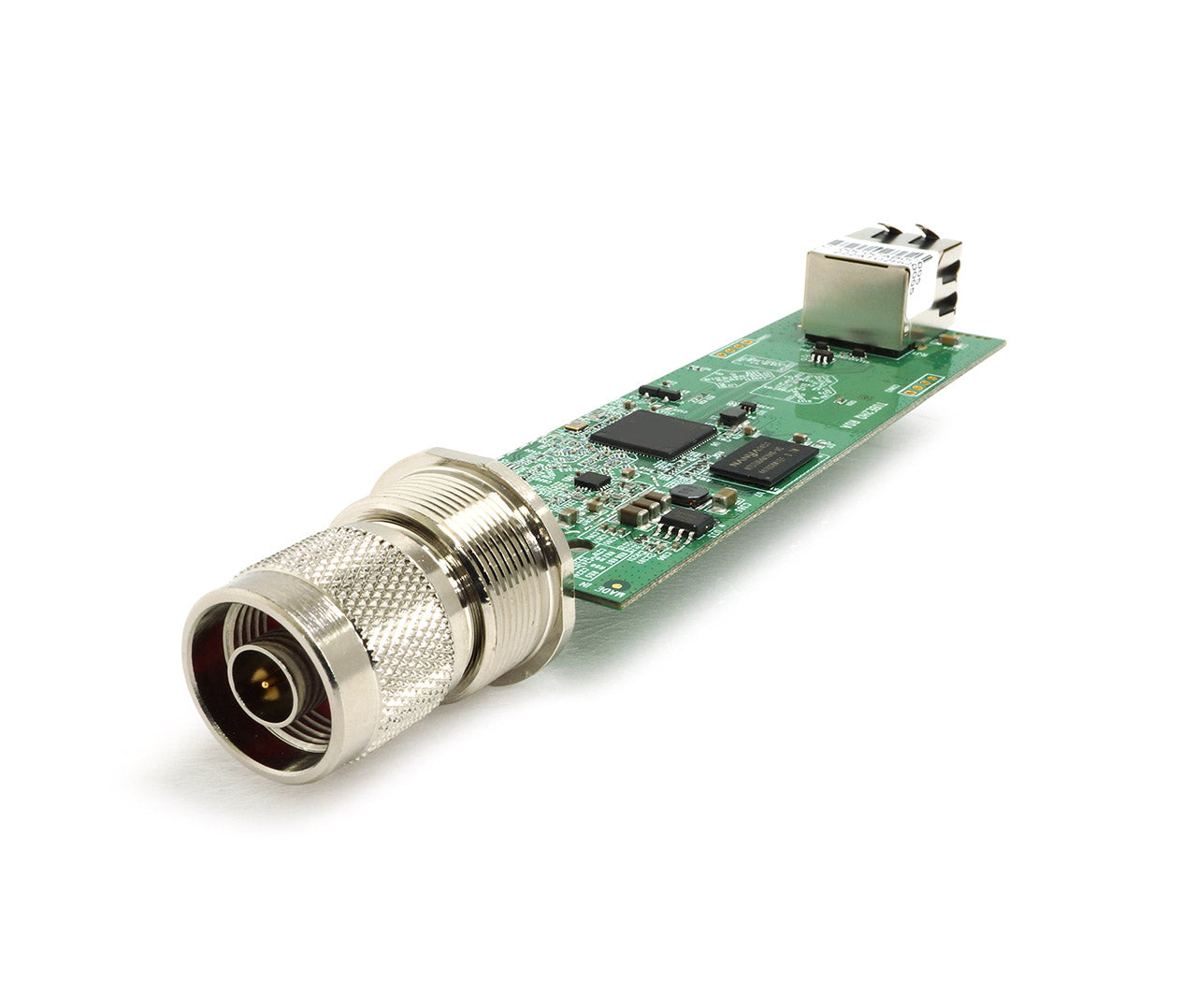

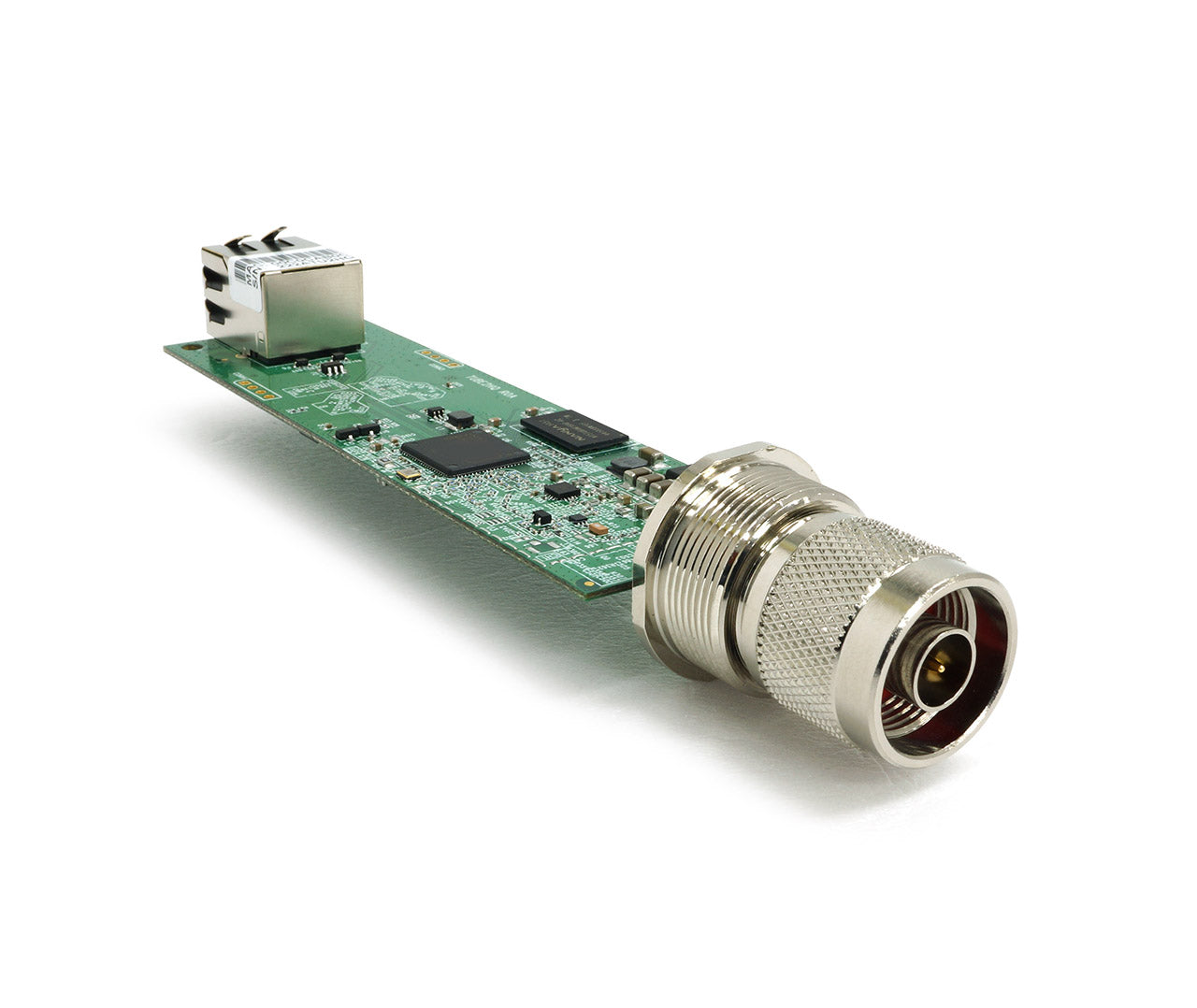

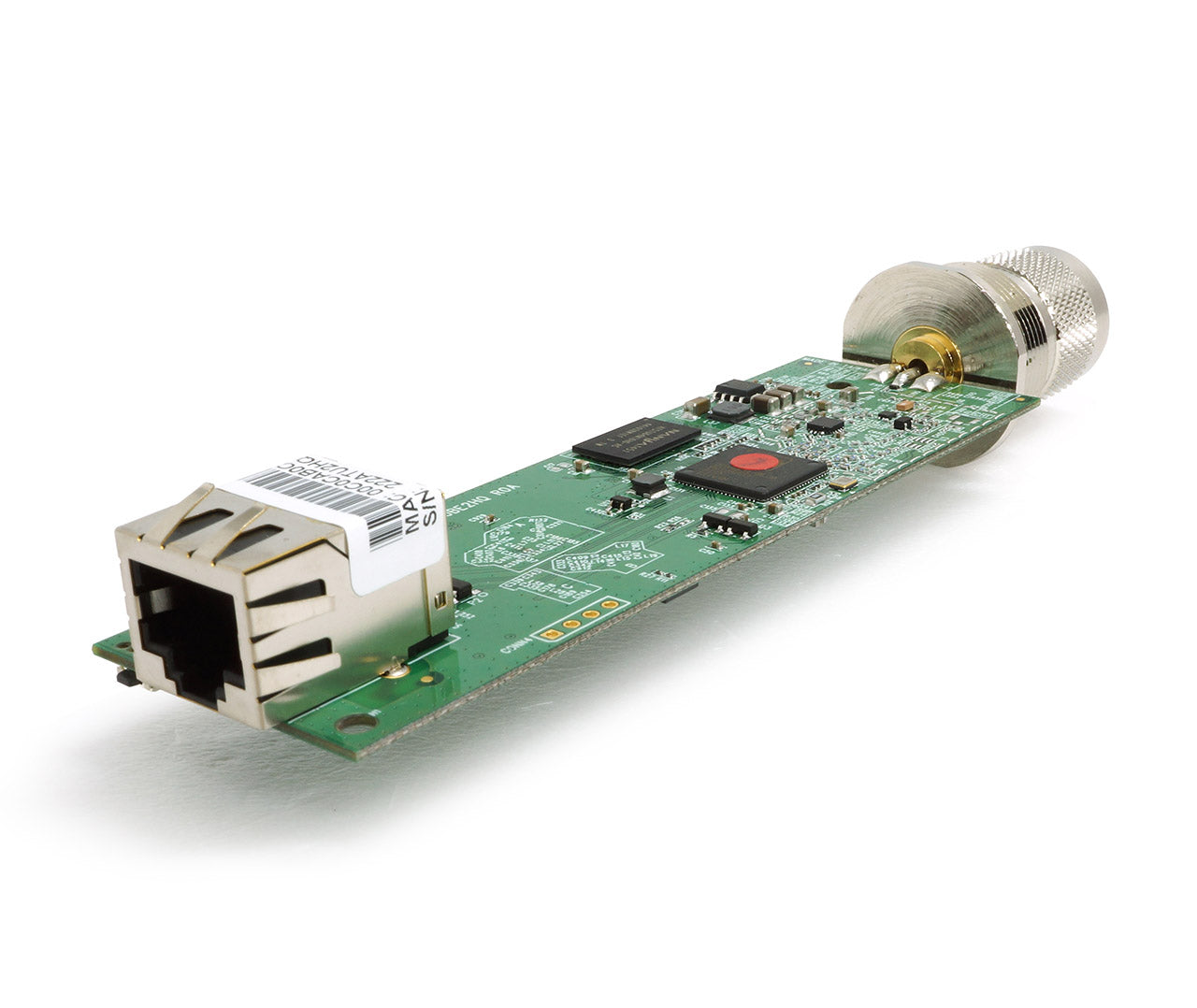

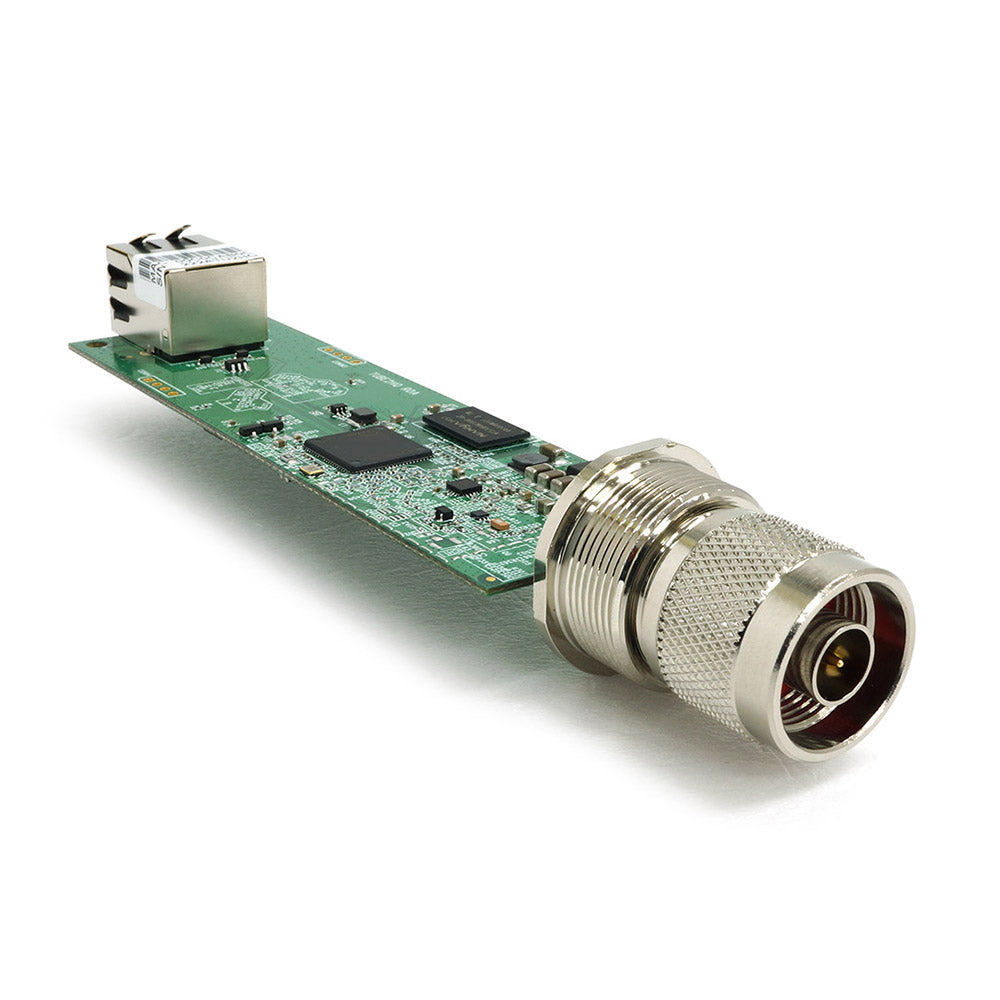

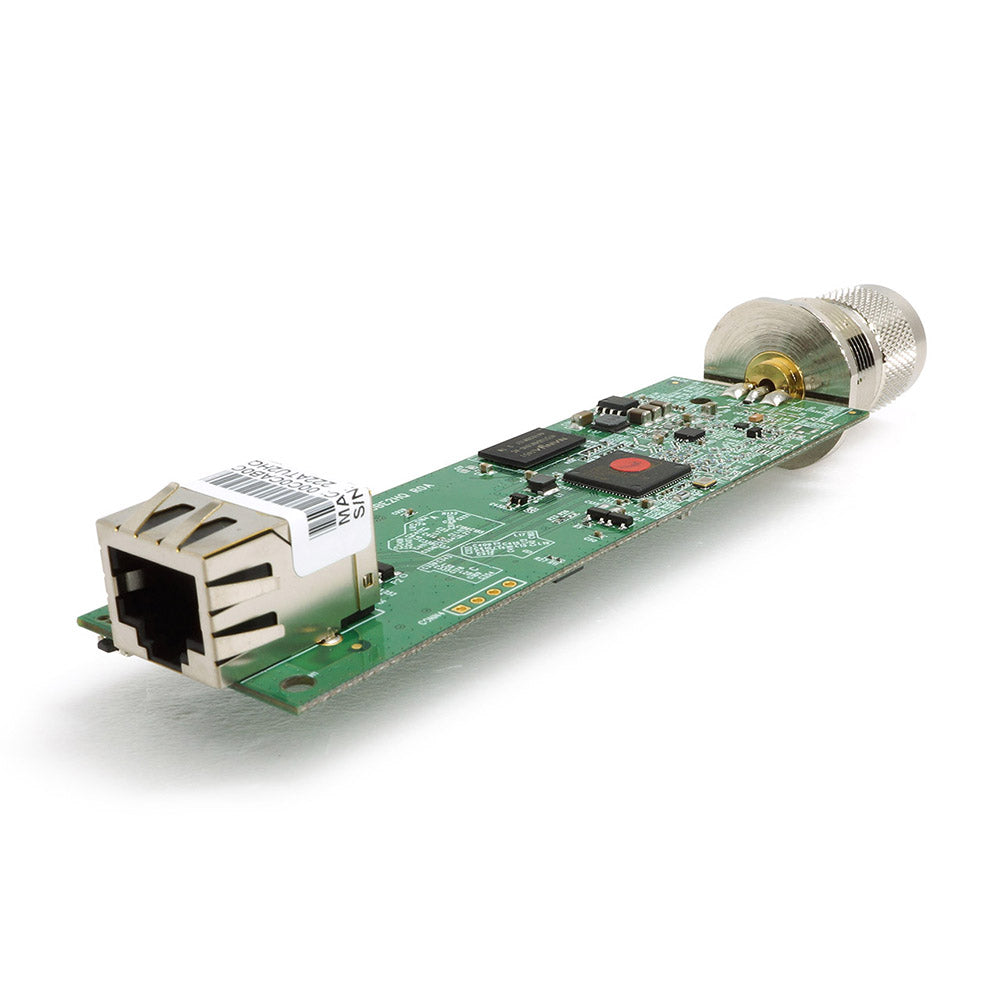

Tube-2HQ PCBA is a high-power 802.11n 2.4 GHz AP/CPE board, equipped with Fast Ethernet
Tube-2HQ offers an integrated 802.11b/g/n WiFi radio (2.4 GHz, up to 27 dBm TX power and 150 Mbps throughput) with type-N (male) antenna connector and Fast Ethernet with support for passive PoE input.
With additional module, this board can be also powered with a standard IEEE 802.3at/af PoE.
Official OpenWrt support, web-based recovery and system serial console access make development extremely easy.
General specifications
| Parameter | Value |
|---|---|
| SOC | Qualcomm™ QCA9531 with 650 MHz single-core MIPS 24Kc CPU |
| RAM | 128 MB of DDR2 |
| Flash | 16 MB of SPI NOR flash |
| WiFi | 802.11b/g/n 1T1R 2.4 GHz 1x Type-N (male) antenna connector |
| Ethernet | 1x Fast Ethernet with ESD protection |
| Pin headers | 1x 4-pin system serial console (2.00 mm pitch) |
| Button | 1x push-button (reset) |
| LED | 1x power/PoE input (blue) 1x LAN (blue) 4x signal level (red, orange, green, green) |
| Other | External hardware watchdog |
| Software | U-Boot with web-based firmware recovery support Officially supported in OpenWrt (Linux Kernel 5.10+) |
| Power supply | Passive PoE (24 V DC) input Support for optional 802.3at/af standard module |
| Dimensions | TBA |
| Operating humidity | TBA |
| Operating temperature | TBA |
