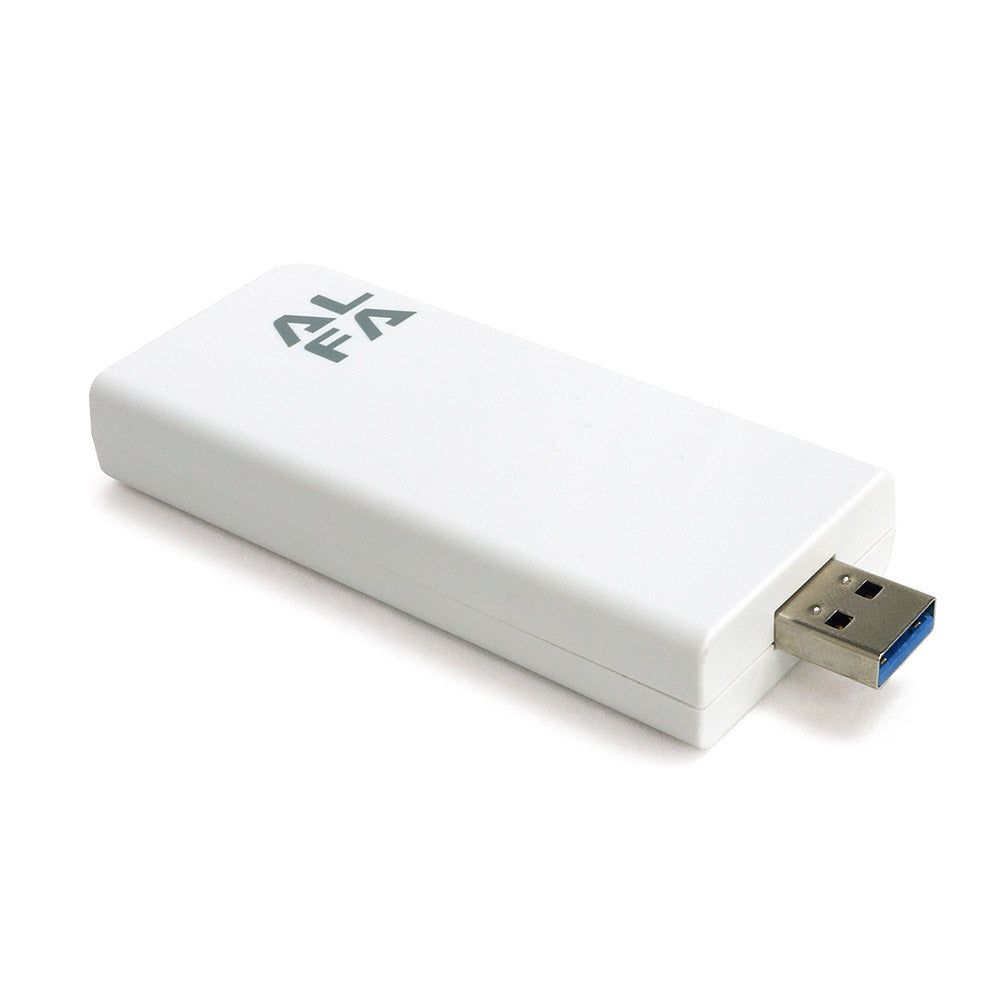

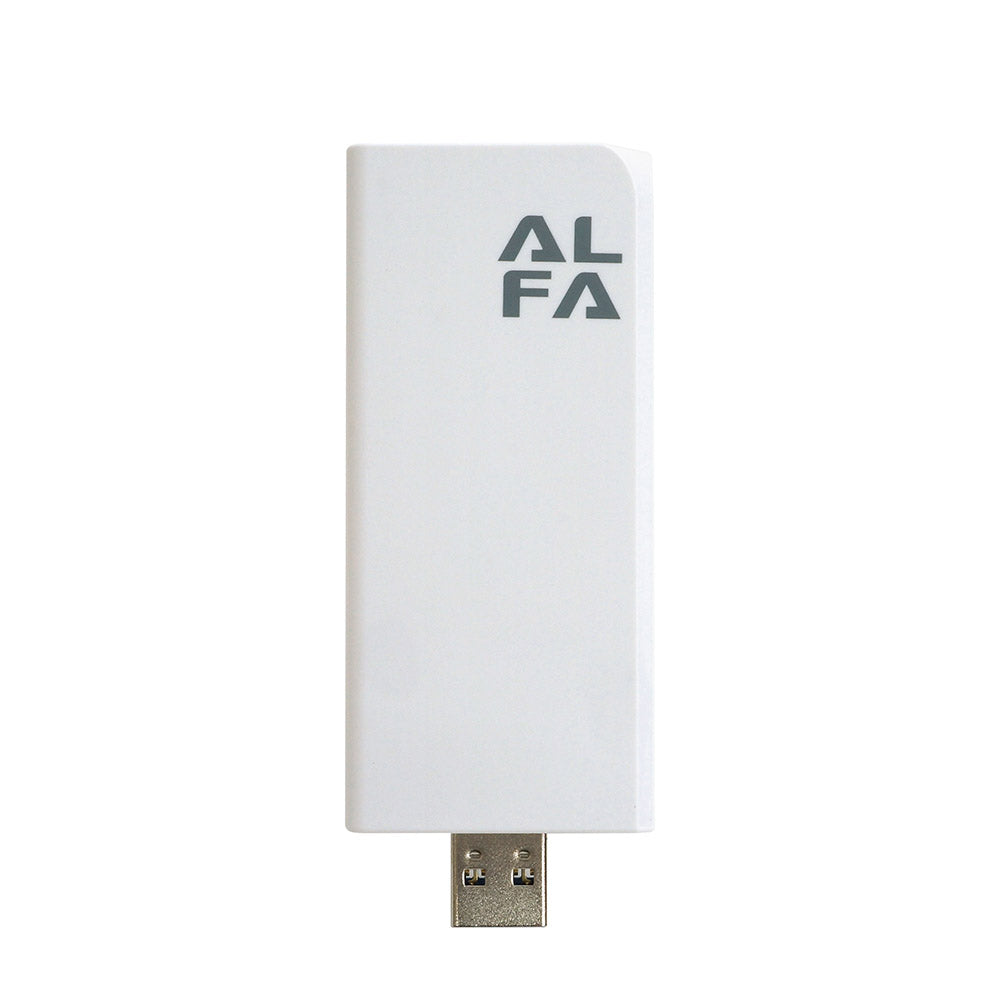

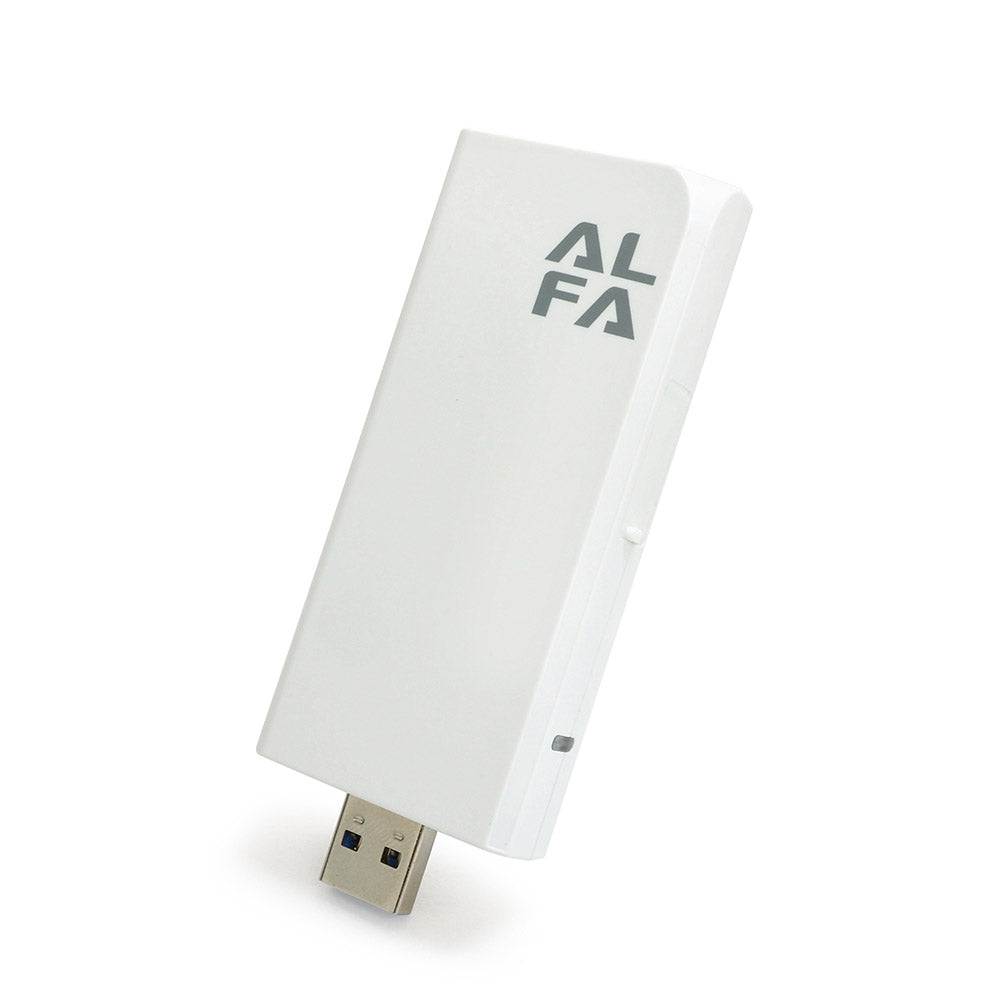

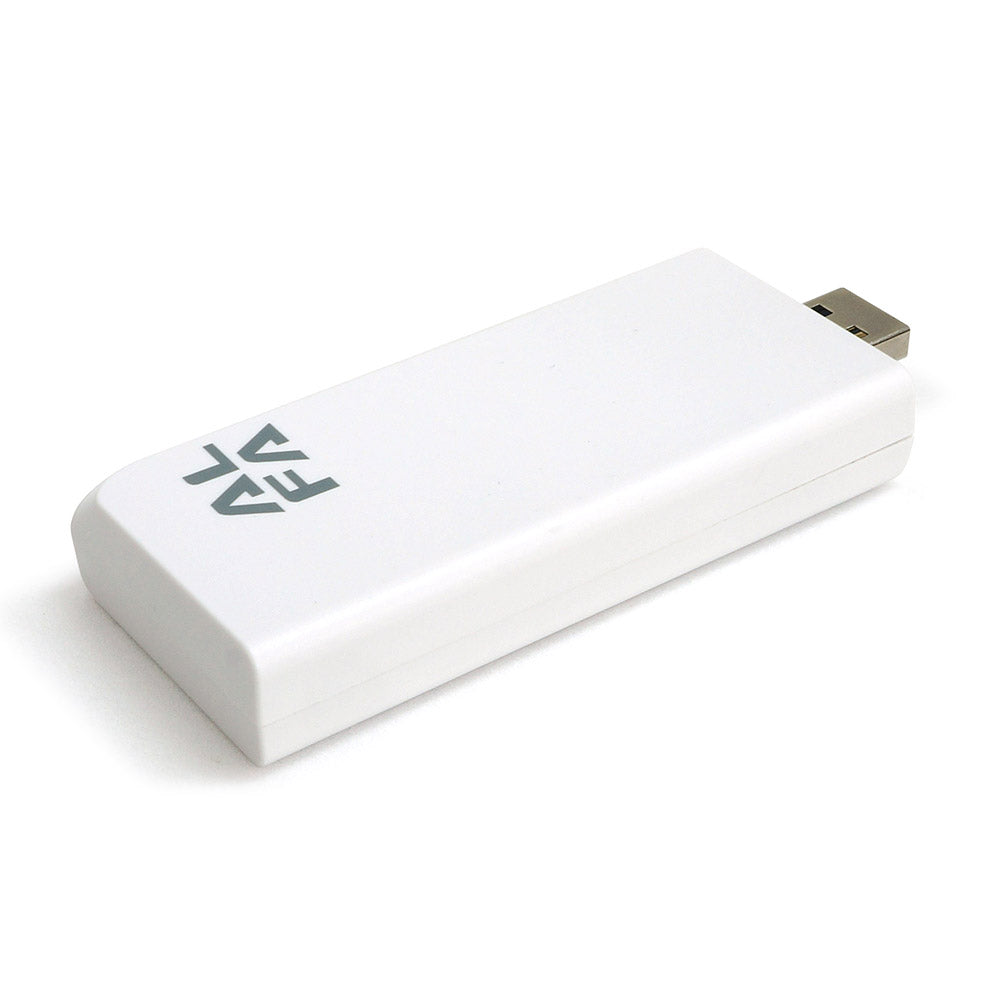

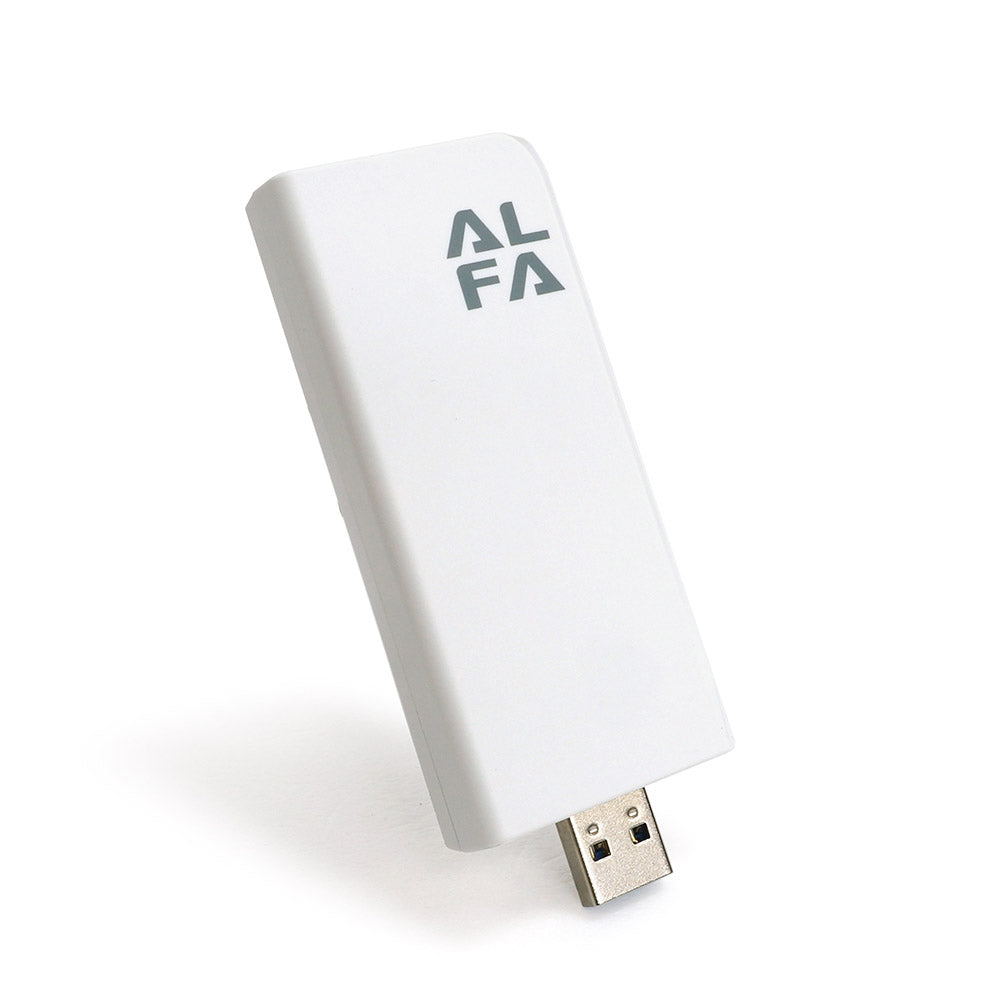

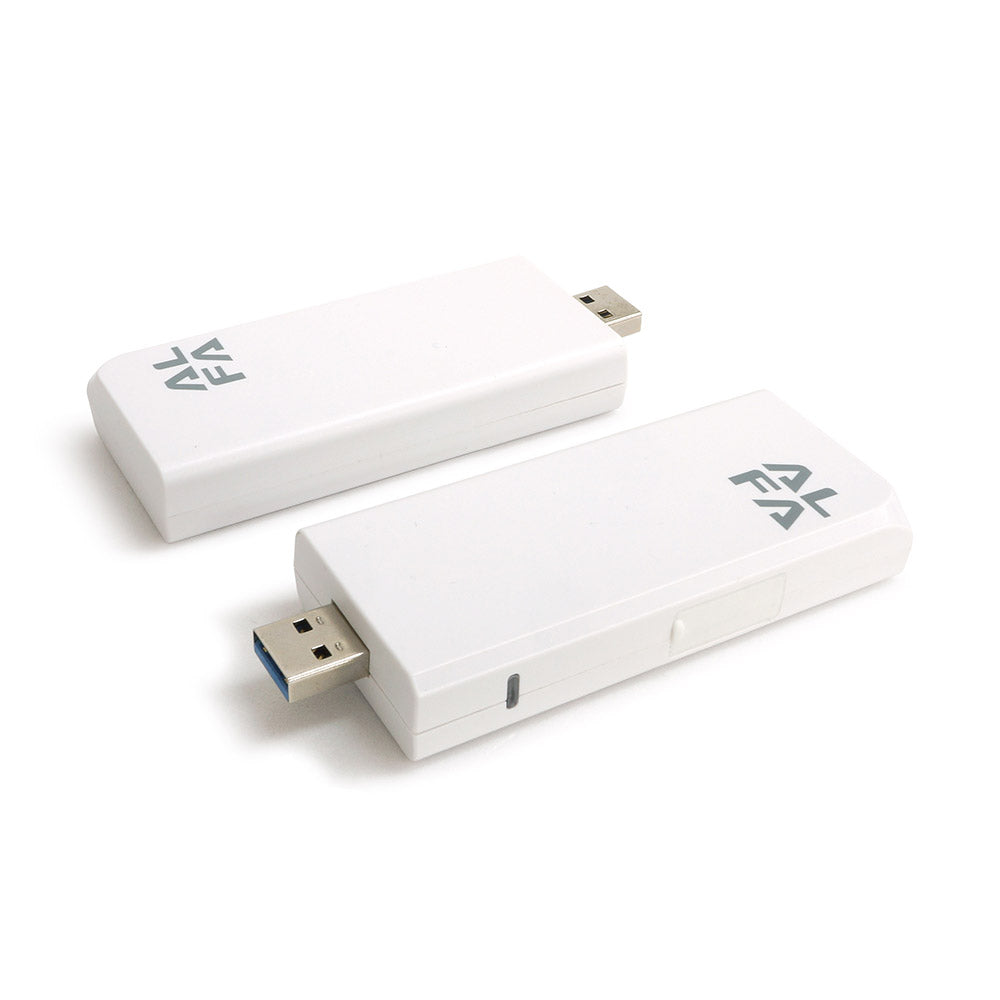

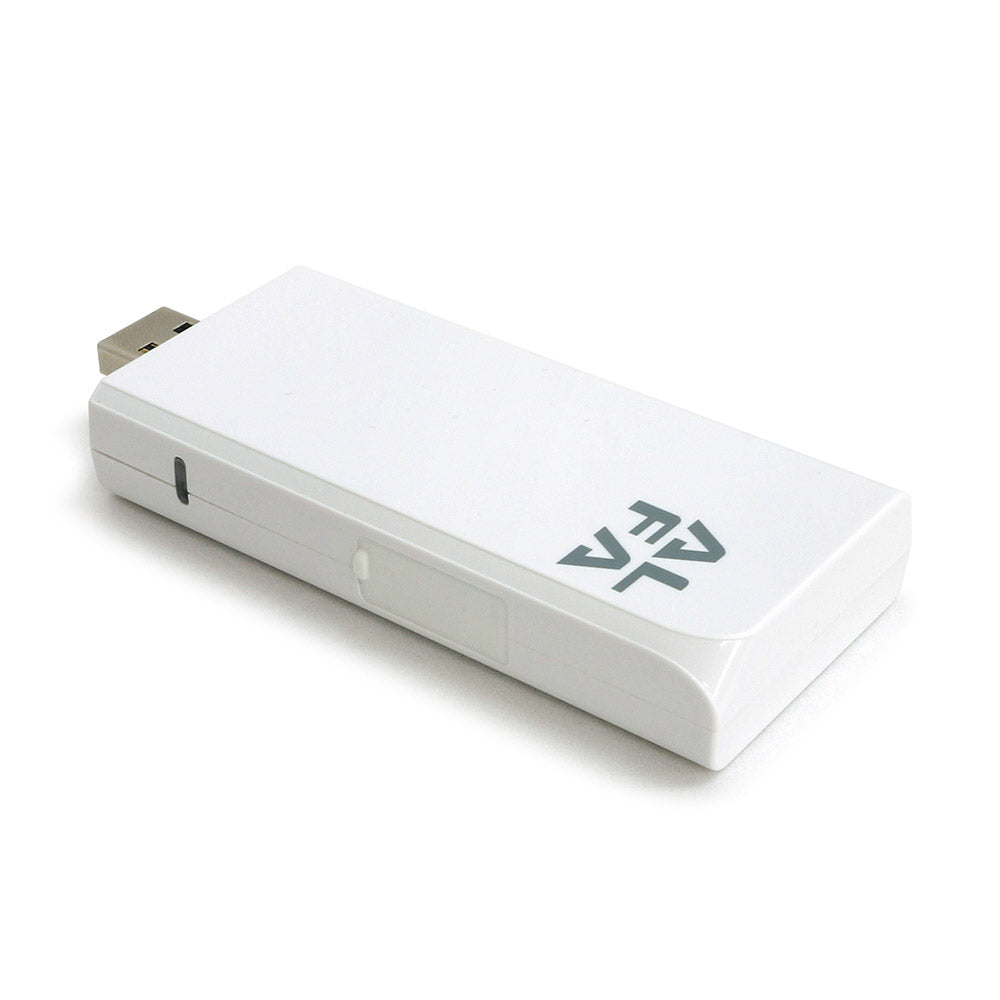

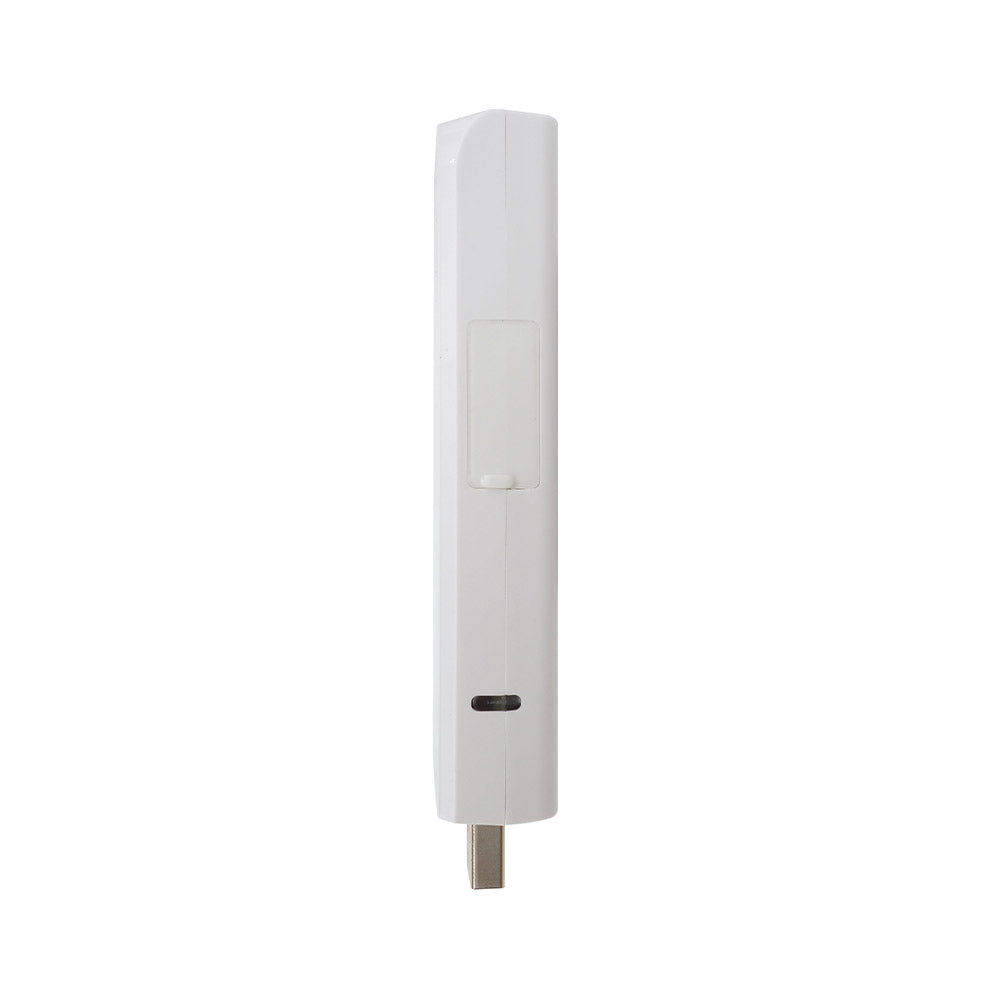

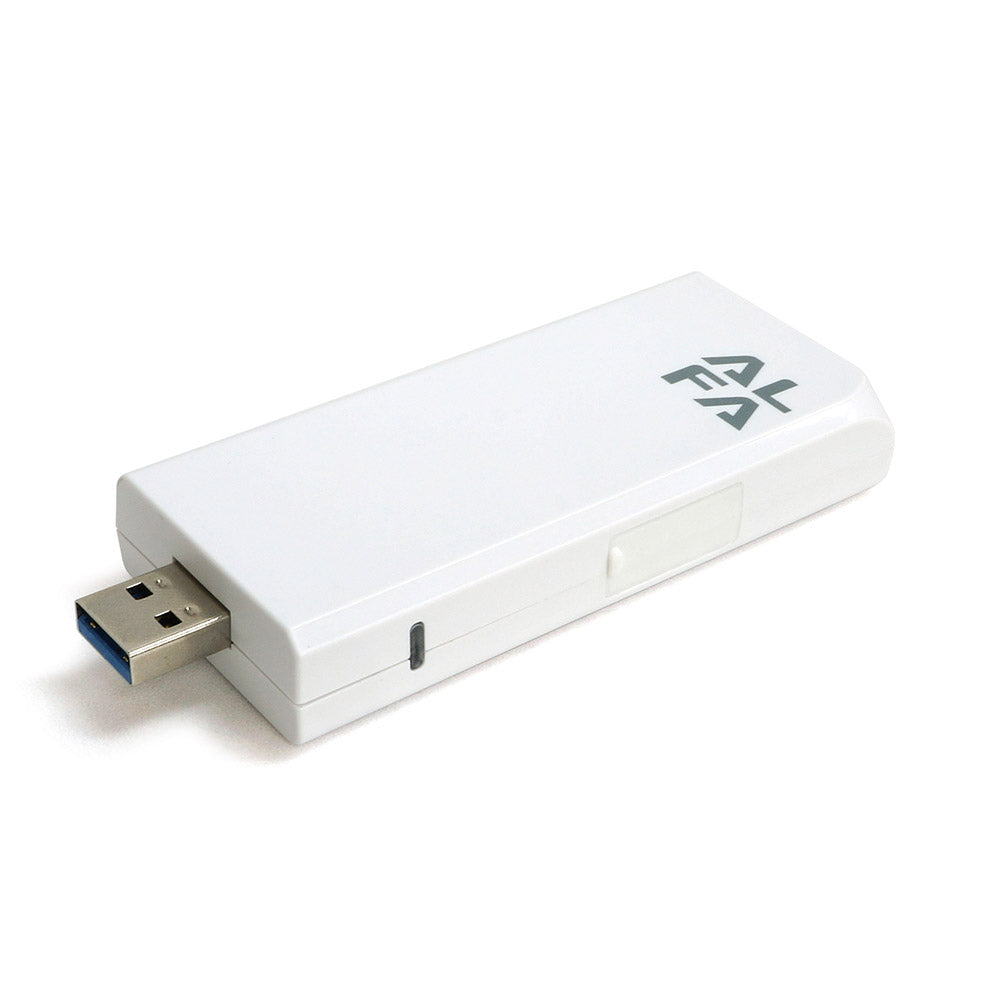

UA4G-C4

4G LTE Cat 4 USB Modem

Compact USB cellular connectivity for routers, gateways, embedded systems, and field-deployed devices.

LTE Cat 4: 150 Mbps DL / 50 Mbps UL

USB 3.0 Type-A

Nano SIM

Internal Antenna

Key Product Strengths

Wide cellular support: LTE-FDD, LTE-TDD, HSPA+, GSM/GPRS/EDGE for flexible deployment.
Fast integration: USB driver support for Windows, Linux, Android and AT command control.
Field-ready design: Integrated antenna, LED status indicator, Nano SIM slot and wide operating temperature.

Specifications

Cellular & GNSS
Embedded module	SIM7600-M2
Cellular network	3G / 4G, LTE MIMO 2x2
Data rate	LTE: 150 Mbps DL / 50 Mbps UL; HSPA+: 42 Mbps DL / 5.76 Mbps UL; WCDMA: 384 Kbps; EDGE: 236.8 Kbps; GPRS: 85.6 Kbps
LTE-FDD bands	B1 / B2 / B3 / B4 / B5 / B7 / B8 / B12 / B13 / B18 / B19 / B20 / B25 / B26 / B28 / B66
LTE-TDD bands	B34 / B38 / B39 / B40 / B41
WCDMA / GSM	WCDMA: B1 / B2 / B4 / B5 / B6 / B8 / B19; GSM: 850 / 900 / 1800 / 1900 MHz

Cellular & GNSS
Interface	USB 3.0 Type-A
Antenna	Internal antenna

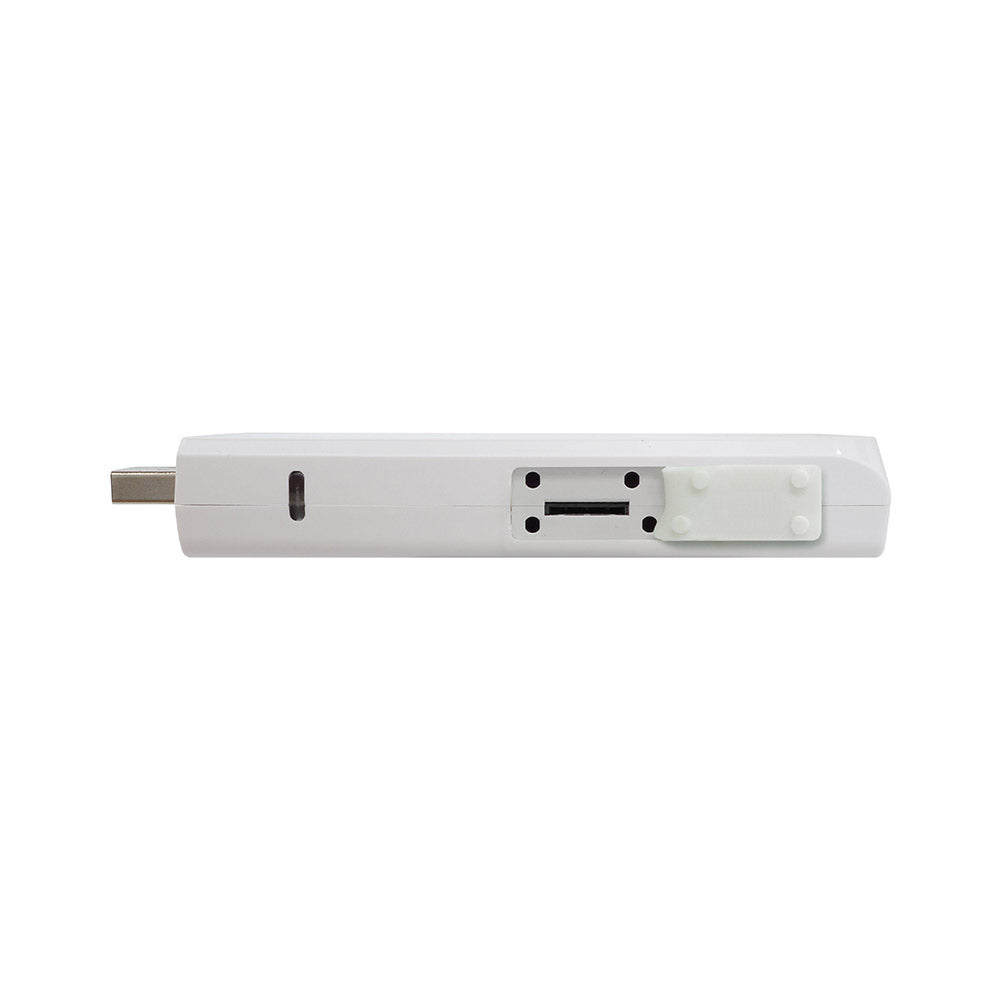

SIM slot	Push-push Nano SIM
LED	Power / Link status indicator
Operating systems	Windows 7 / 8 / 10 / 11; Linux; Android
Operating temp.	-40°C to 85°C
Power consumption	7W (Maximum draw during data transmission or network registration)
Size	96.8 x 38.4 x 14.4 mm
Weight	50g
