UA5G-8230G

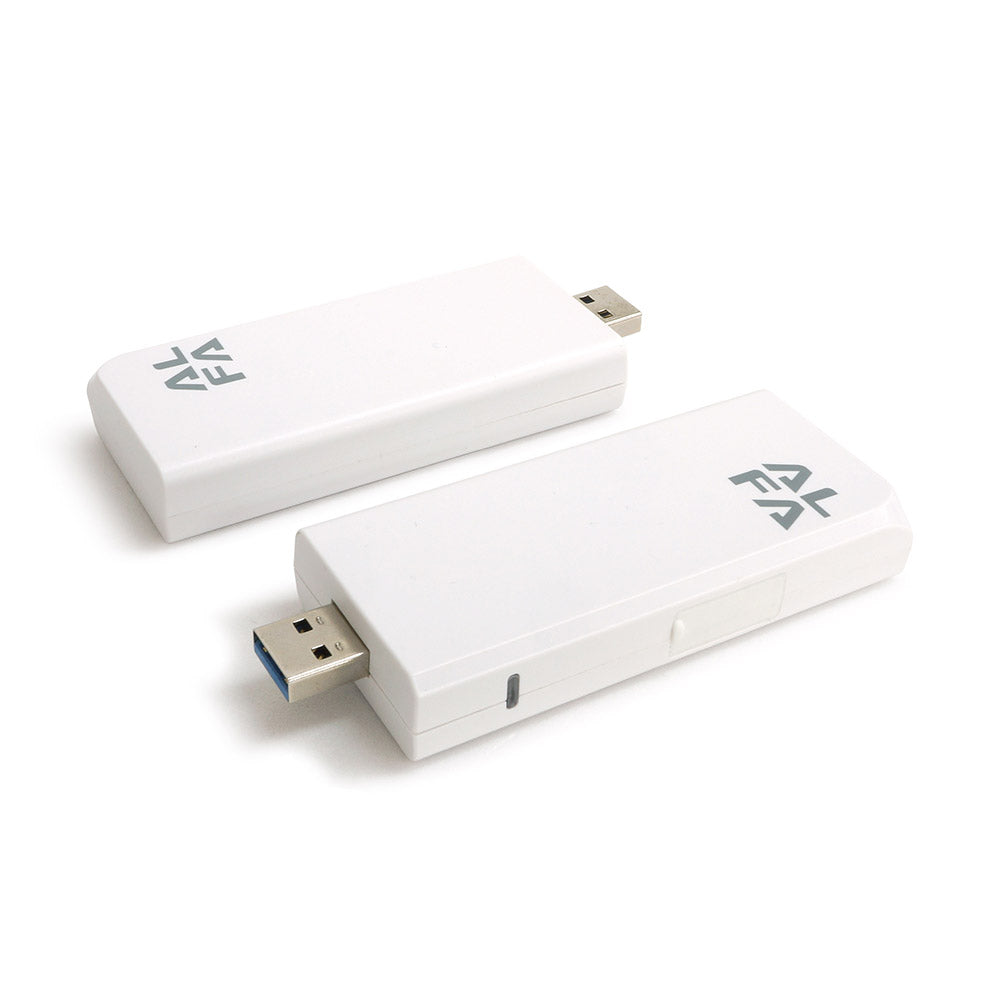

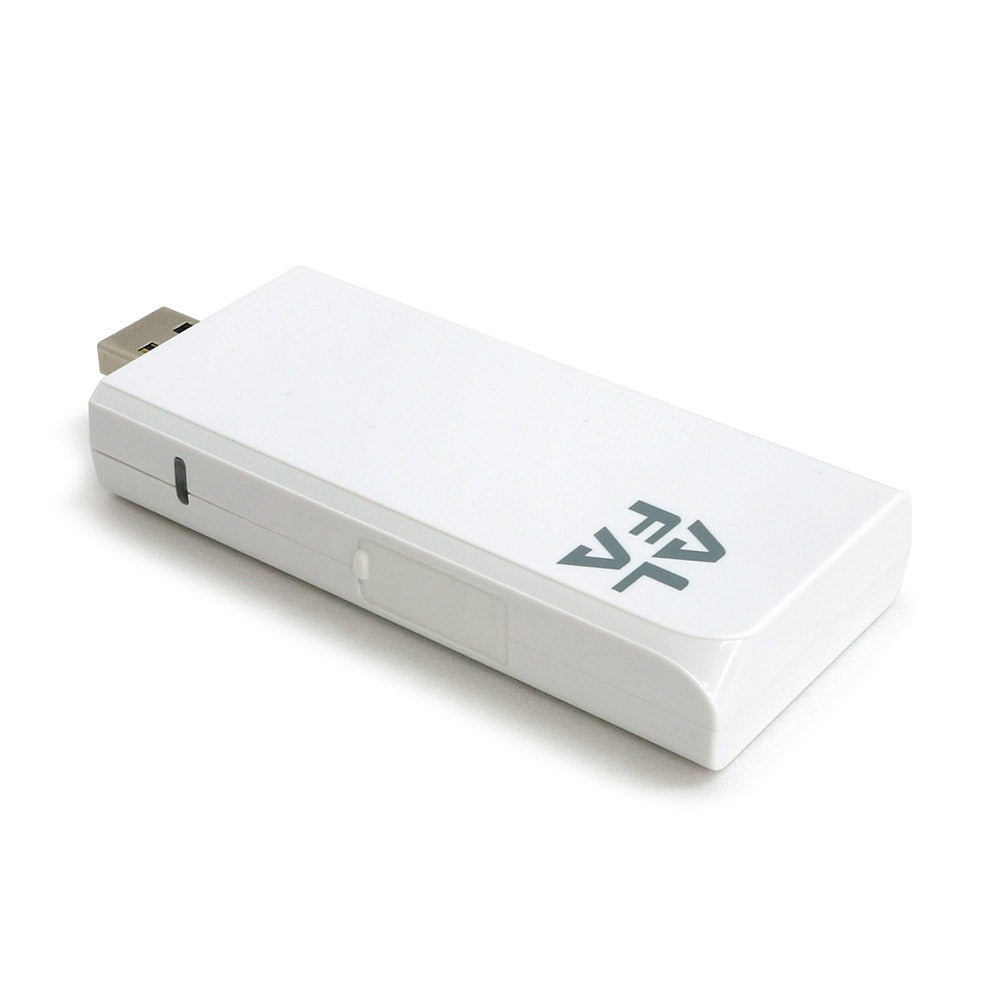

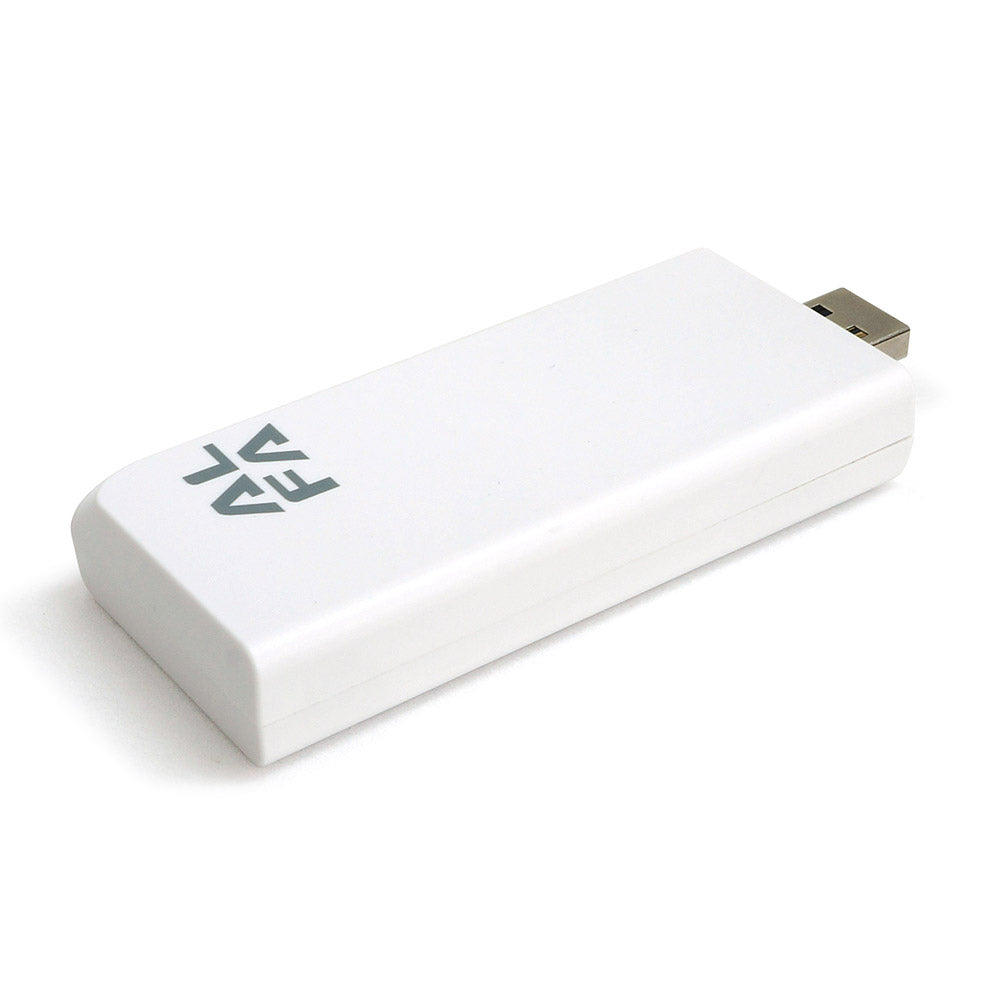

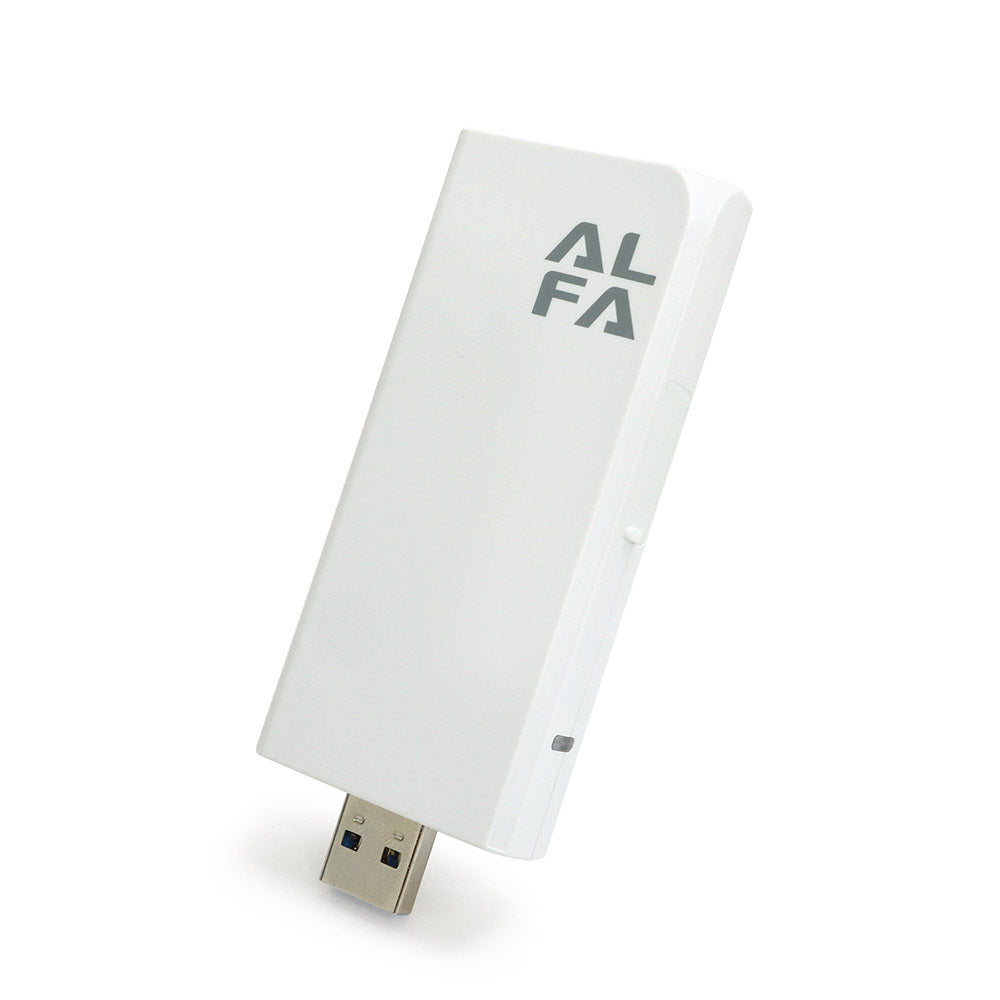

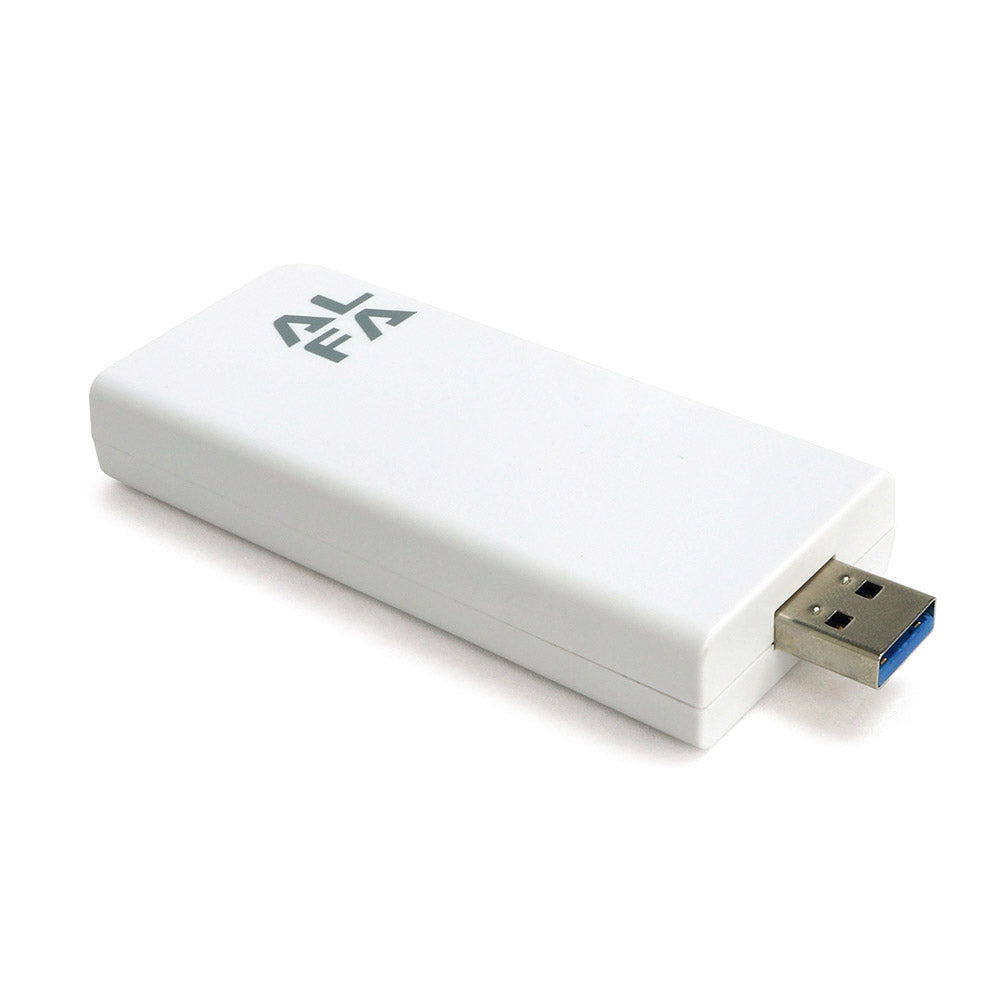

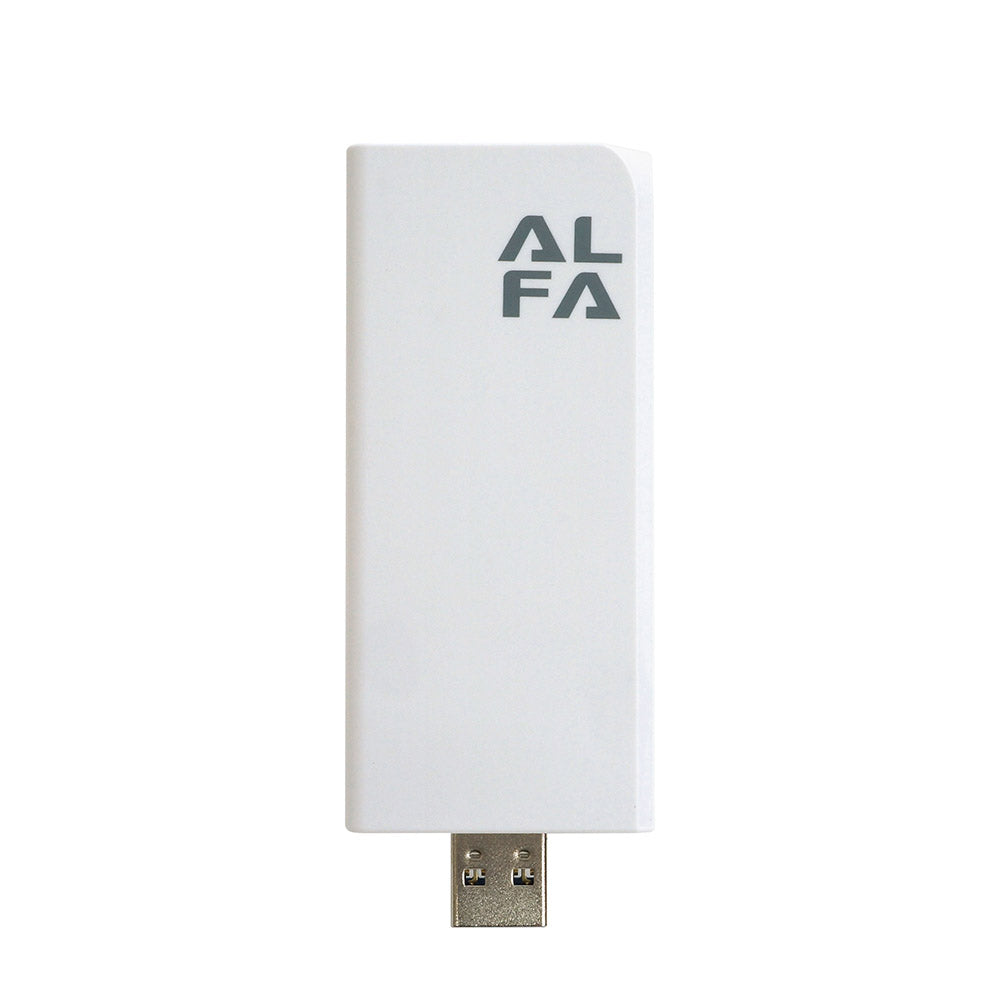

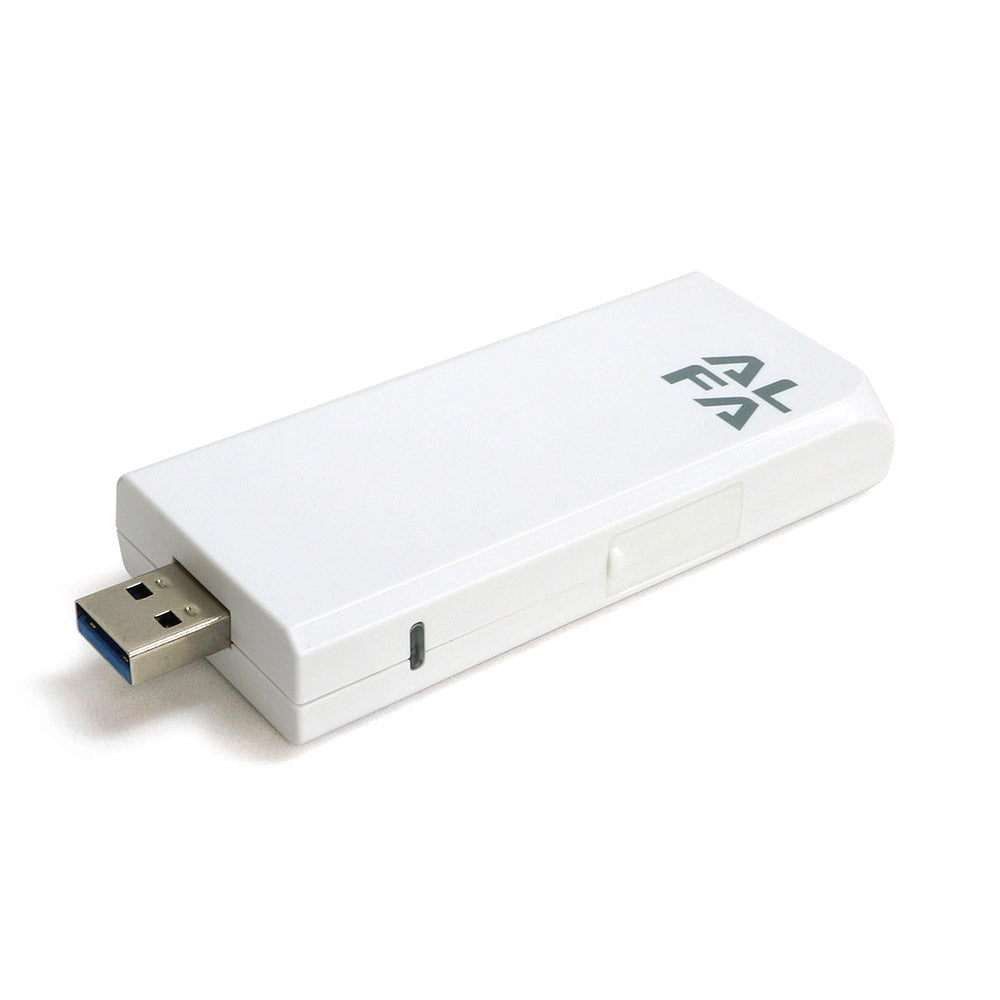

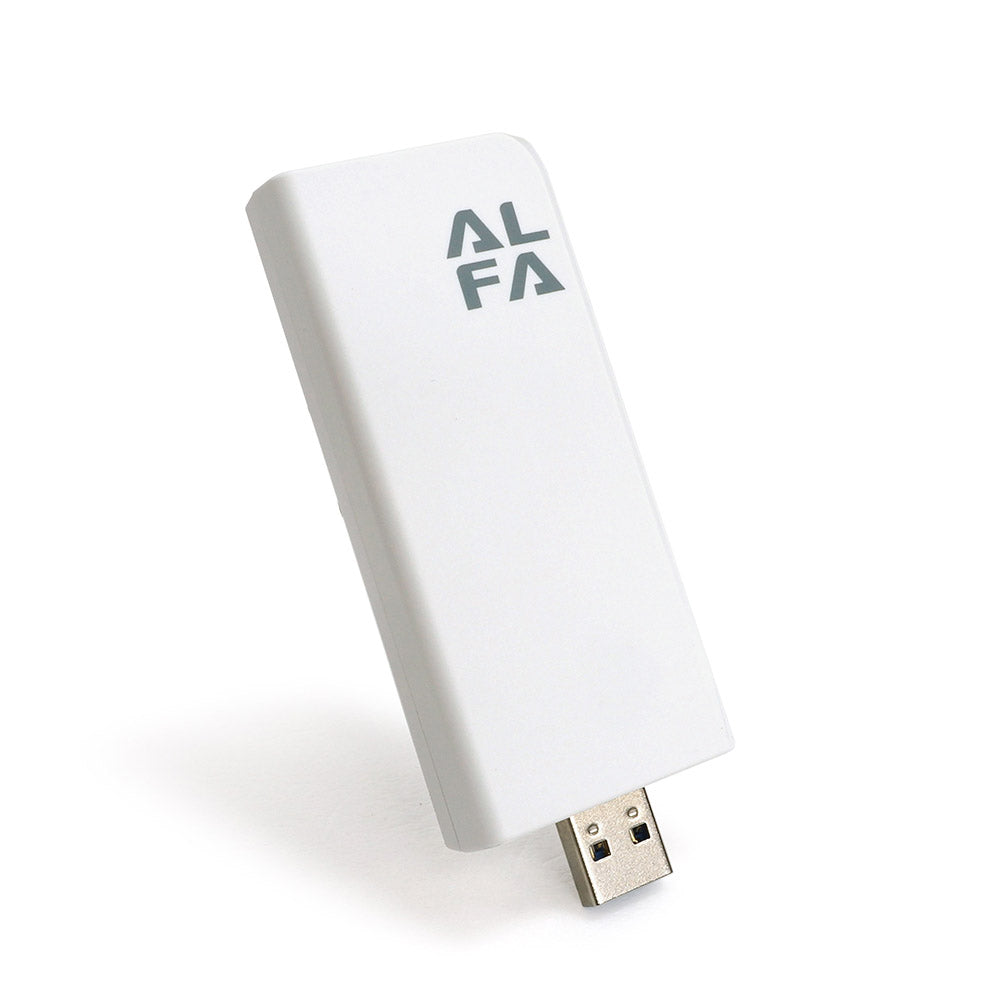

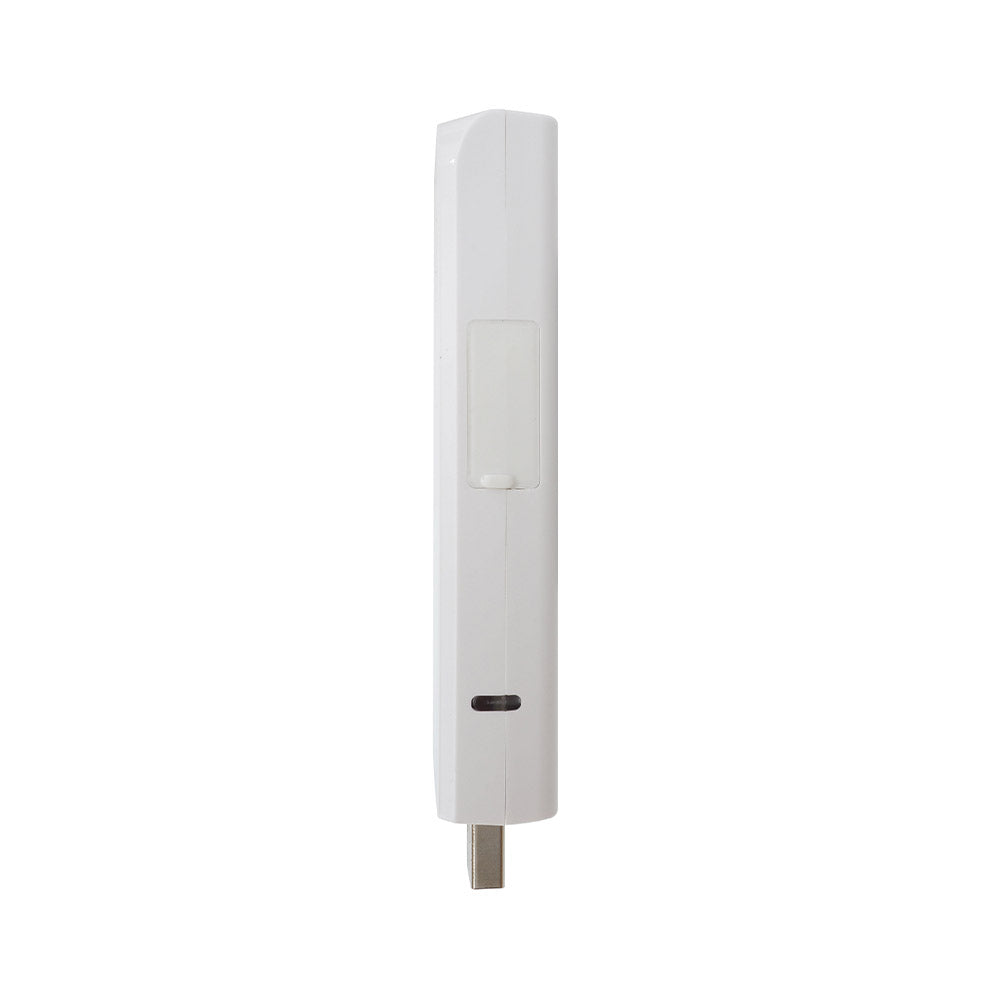

UA5G-8230G – The RedCap USB Modem Others Don’t Offer
UA5G-8230G supports 5G NR RedCap with full LTE-FDD and LTE-TDD, all packed into a compact, easy-to-use USB modem.
Powered by the SIMCom SIM8230G module and equipped with a high-gain internal antenna, it keeps your system connected even in areas with weak signal strength.
It also comes with nano SIM slots and widely compatible USB-A connector, making it a perfect fit for PCs, industrial machines, embedded systems, and more.

Key features

Built-in SIMCOM SIM8230G-M2 5G modem
USB Type-A interface
LED Indicator
Integrated high-gain 5G NR/LTE antenna

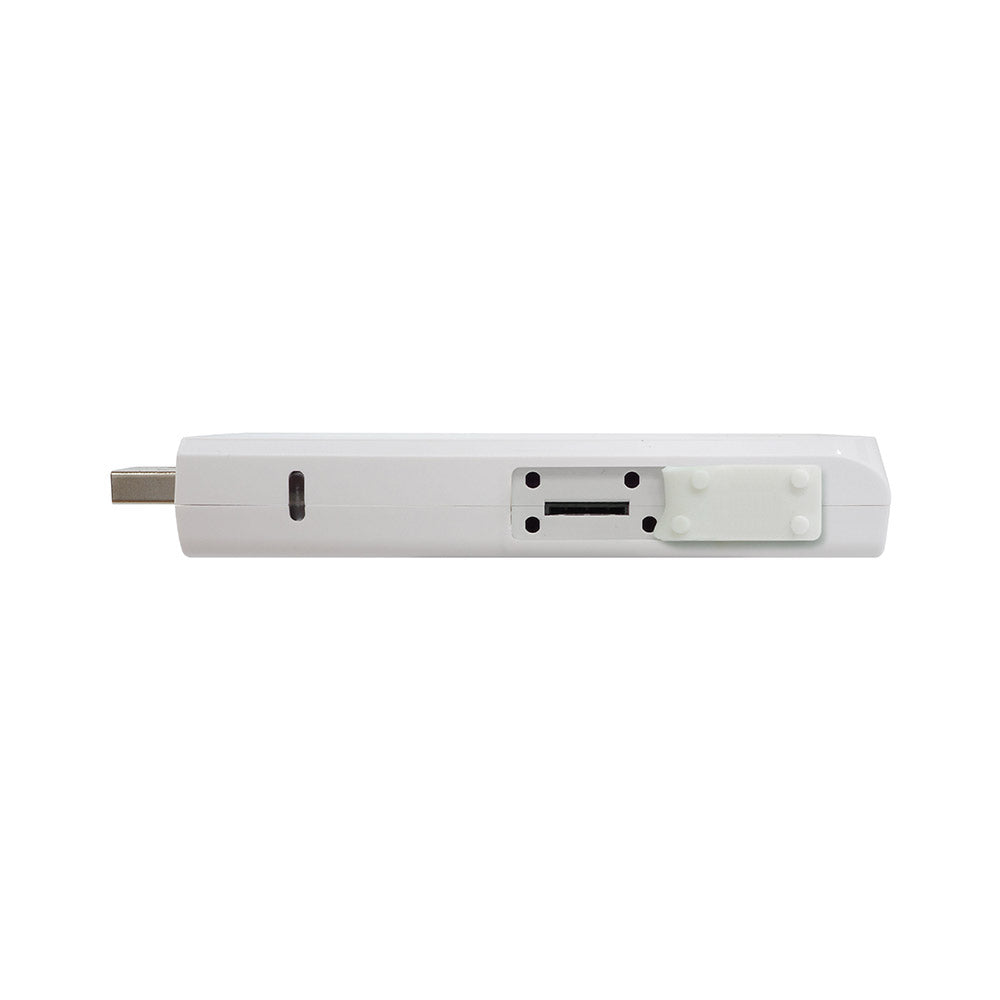

Nano SIM slot

Specifications

Embedded module	SIMcom SIM8230G-M2
Cellular network	5G NR SA LTE-FDD LTE-TDD
Data transfer	5G NR SA: 220 Mbps (Downlink) / 120 Mbps (Uplink) LTE: 200 Mbps (Downlink) / 75 Mbps (Uplink)
Frequency bands	5G SA: n1/n2/n3/n5/n7/n8/n12/n13/n14/n18/n20/n25/n26/n28/n30/n38/ n40/n41/n48/n66/n70/n71/n77/n78 LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/ B28/B30/B66/B71 LTE-TDD: B34/B38/B39/B40/B41/B42/B43/B48
Interface	USB Type-A with USB 2.0 backward compatibility
Antenna	Internal Antenna
Button	1x push-button (modem reset)
Switch	1x slide switch (SIM select)
LED	1x modem status 1x micro SIM 1x mini SIM 1x power
Power consumption	Standby mode: 4.2 mA Connected mode: avg. 400 mA; max. 615 mA
Operating temperature	-25° C ~ 75° C
Dimensions	90 x 48 x 21 mm
Weight	60 g
Supported OS	Microsoft Win7/ Win8/ Win10/ Win11 Linux/ Android
Package	1x UC5G-8230G 1x QIG
