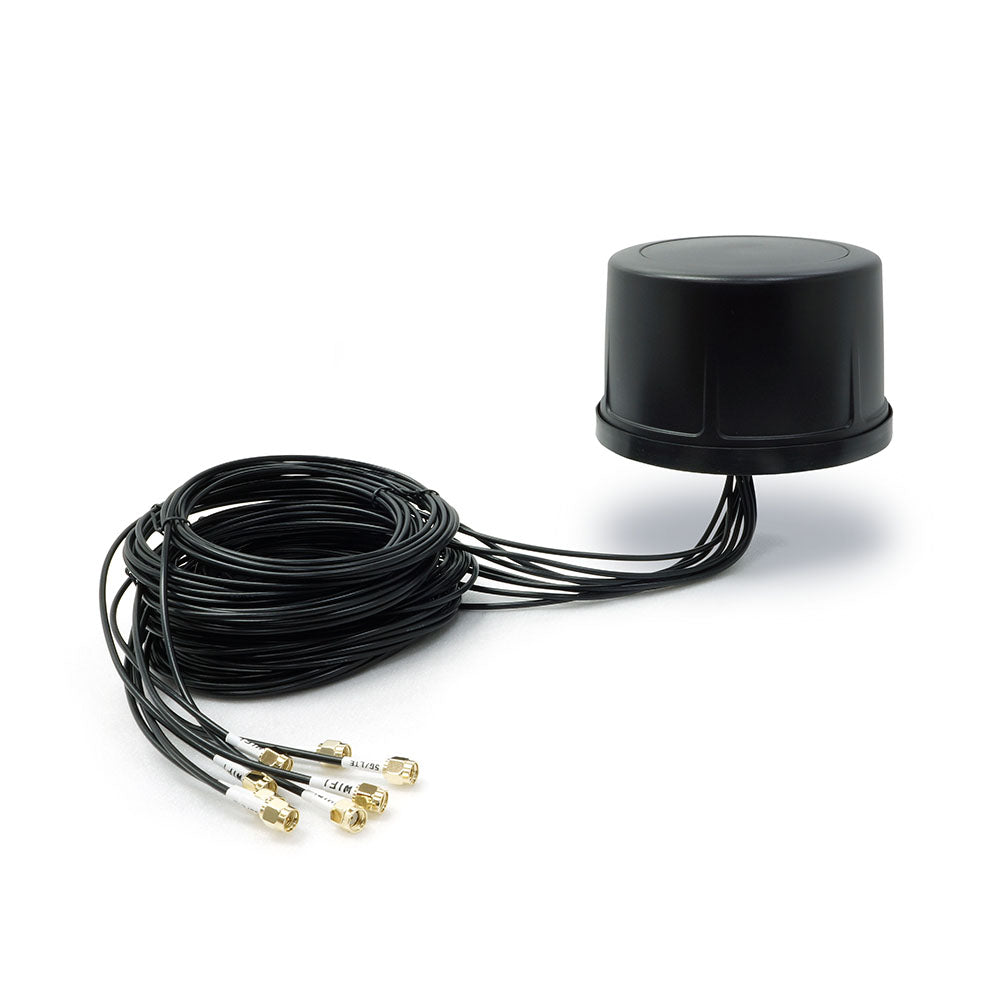

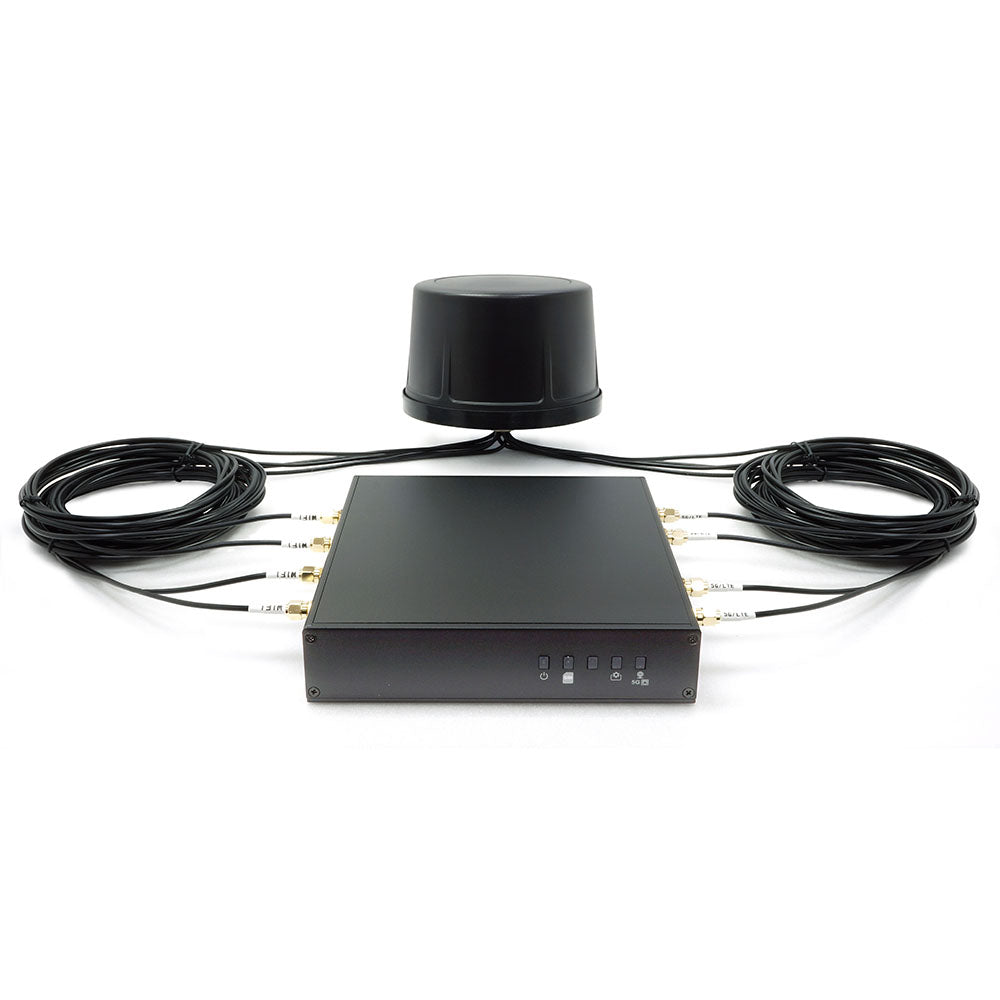

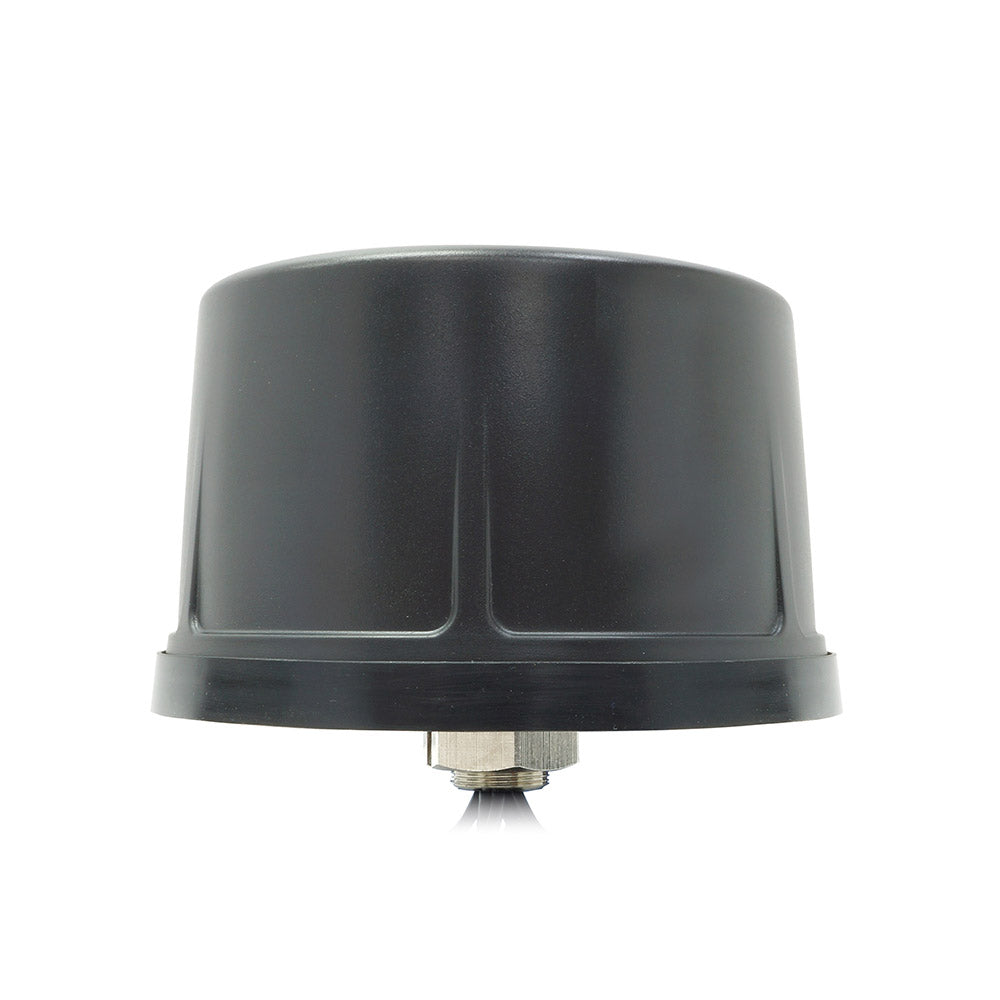

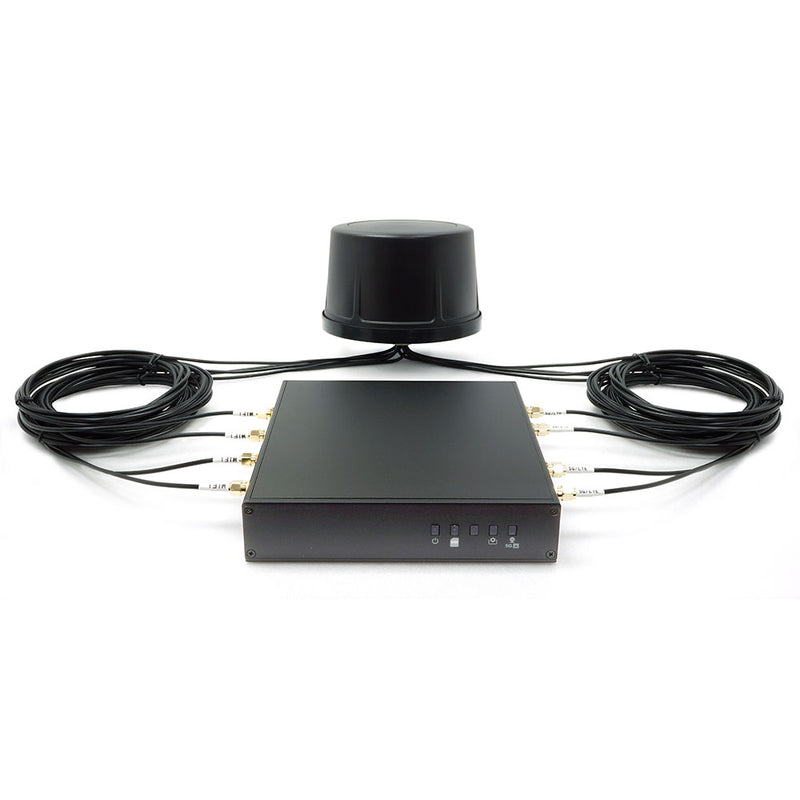

AKA-5GWiFi-75

Frequency

5G NR/4G LTE:

698 - 960 MHz

1710 – 2700 MHz

3300 – 3800 MHz

WiFi:

2400 – 2500 MHz

5150 – 5850 MHz

Gain

5G NR/4G LTE: 3/5/7 dBi

WiFi: 7 dBi

V.S.W.R

≦ 2.0

RF connector

5G NR/4G LTE: 4x SMA male

WiFi: 4x RP-SMA male

Cable

RG174

Cable length

length 3M

Polarization

5G NR/4G LTE: Linear

WiFi: Vertical

Impedance

50Ω

Maximum input power

25W

Radome material

Plastic ABC

Dimensions

Ø 140 x 84.5 mm (Ø 3.75 x 1.97 inches)

Weight

850 g

Mounting

Screw mount

Operating temperature

-40°C to 85°C (-40°F to 185°F)

Waterproof

IP67
