AUCMC-S2_PCBA

USB Type-C to mini PCIe adapter with dual-SIM and reset features

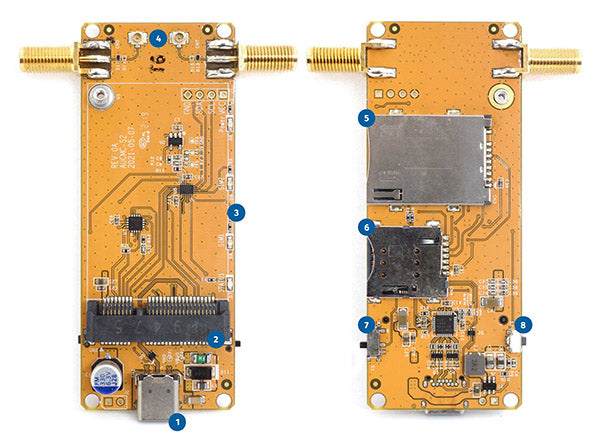

(1) Type-C SuperSpeed USB 1 10 Gbps receptacle
(2) Mini PCIe with SIM and USB (SuperSpeed USB 10 Gbps and USB 2.0)
(3) 4× LED
(4) 2× IPEX/U.FL to SMA antenna connector
(5) 1× mini SIM
(6) 1× micro SIM
(7) SIM slide switch
(8) Modem reset button

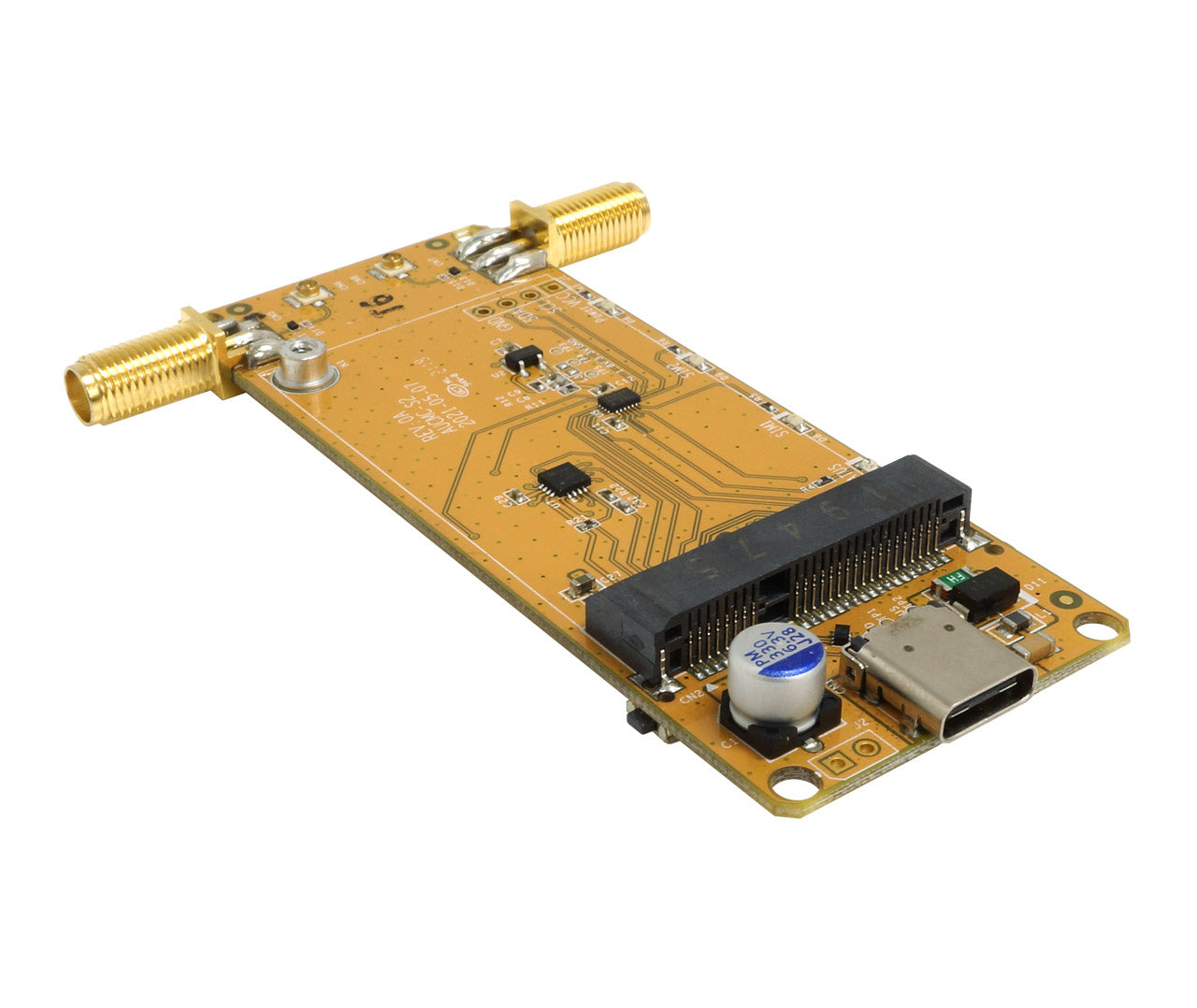

Description

AUCMC-S2 is a Type-C to mini PCIe adapter dedicated for modems

AUCMC-S2 offers a quick and easy way to use a regular full-size Mini Card 4G/LTE and 5G module on desktop or notebook PC equipped with USB connectivity.

Dual (mini and micro) SIM feature with sophisticated reset logic circuit, mechanical SIM select switch and modem reset button complement rich functionality of the adapter.

Adapter includes two female SMA connectors for antennas and the bundle contains required jumper RF cables (IPEX/U.FL to IPEX/U.FL).

2D Drawing Dimension

mini PCIe slot pinout

Specifications

Parameter	Value
Adapter interface	Type-C SuperSpeed USB 10 Gbps (with USB 2.0 backward compatibility)
Modem interface	SuperSpeed USB 10 Gbps (shared with PCIe signal lines) USB 2.0 SIM card
Modem form factor	Full-size Mini Card
Antenna	2× external (female SMA connectors) 2× internal
SIM	1× micro SIM 1× mini SIM
Button	1× push-button (modem reset)
Switch	1× slide switch (SIM select)
LED	1× modem status (blue) 1× micro SIM (blue) 1× mini SIM (blue) 1× power (blue)
Operating humidity	10 % ~ 90 % RH, non-condensing
Operating temperature	-30 ° ~ 70 ° C
Mounting holes	∅ 3 mm, 79.6 × 28.2 mm
PCB dimensions	84.6 × 33.2 mm
