AX5GRM

AX5GRM

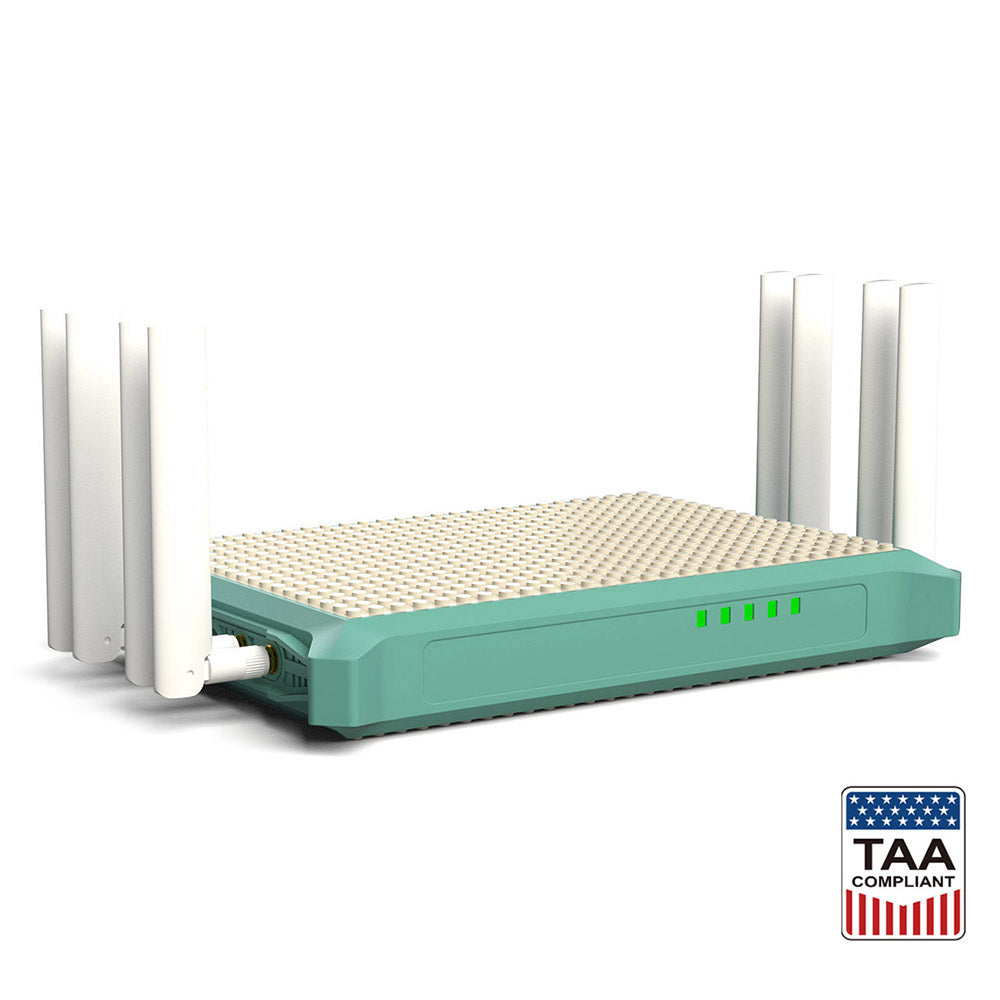

AX5GRM is a Global band 5GNR Wi-Fi 6 router.
It supports the fastest internet speeds and unmatched efficiency. AX5GRM built-in Nano SIM slot and detachable antennas ensure flexible and customized coverage.
With 2.5 Gbps PoE LAN and 1 Gbps WAN ports, it’s designed for the ultimate highspeed, reliable internet experience.
Enhanced with 5G and fixed line failover functionality, it guarantees uninterrupted connectivity, automatically switching to maintain your online activities without a hitch. AX5GRM is for those who demand reliability and speed in every online interaction.

Key features

  1. Global 5G NR band
  2. Wi-Fi 6 data-rate 1800 Mbps
  3. Nano SIM slot
  4. Detachable 5G and Wi-Fi antenna
  5. 1x 2.5 Gbps PoE LAN
    1x 1 Gbps WAN
  6. Compatible with major toy brick


Specifications

Hardware General

Chipset

MT6890 SoC: Arm Cortex-A55 2 GHz quad-core + 5G NR

Wi-Fi 6: MT7915 + MT7975

Flash

32 Gb eMMC

RAM

Gb DDR4

Antenna Connector

4x SMA for 5GNR

4x RP-SMA for Wi-Fi 6

Antenna Gain

5G NR: 617 – 960 MHz: 2 dBi

             1427 – 2690 MHz: 5 dBi

             3300 – 5850 MHz: 4 dBi

WiFi: 2.4 GHz: 4 dBi

          5 GHz: 4 dBi

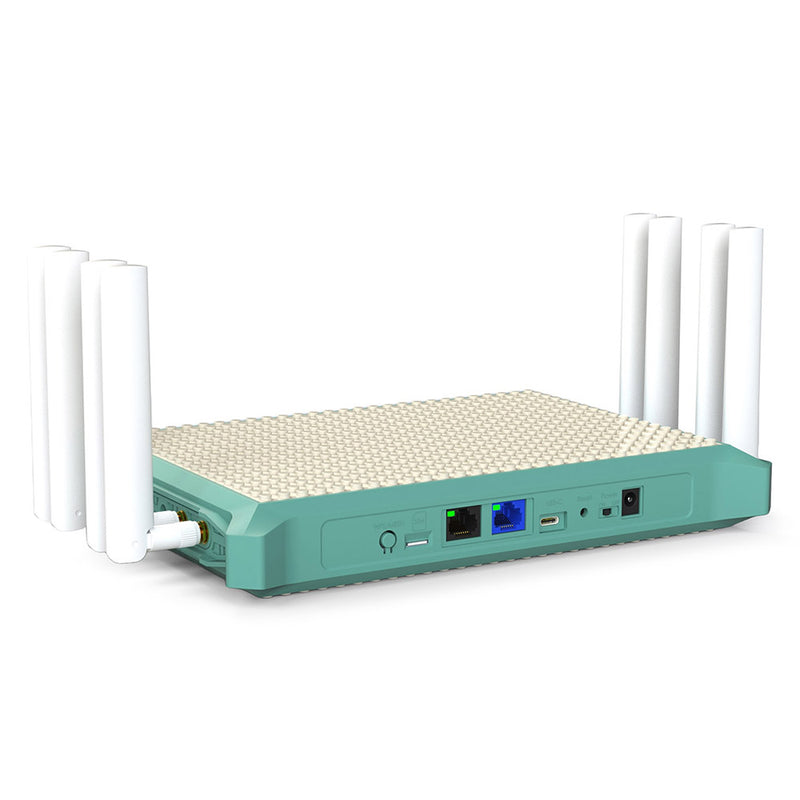

Interface

1x Nano SIM slot

1x 2.5 Gbps RJ45 PoE In (Blue)

1x 1 Gbps RJ45 (Black)

1x DC jack (Ø2.1 x Ø5.5)

1x Power on/off switch

1x WPS button

1x Reset button

LED

2x RGBW LED

3x Blue LED

Input Voltage

DC: 12V, 2A

PoE: IEEE 802.3at PD 25.5 W

Power Consumption

Max. 24 W

Dimensions

262 x 190 x 42 mm (10.3 x 7.5 x 1.7 inch)

Operating Temperature

-20° C ~ 60° C ( -4° F ~ 140° F )

Operating Humidity

10% ~ 90% (non-Condensing)

ESD

Refers to IEC 61000-4-2 criterion A

Air Electrostatic Discharge: ± 8KV

Contact Electrostatic Discharge: ± 4KV

Surge

Refers to IEC 61000-4-5 criterion A

Common mode surge immunity: ± 6KV

Differential mode surge immunity: ± 6KV


5G/4G Standard

5G NR

Supports most main features in 3GPP Release 15

3GPP EN-DC option 3/3A/3X

3GPP SA option 2

Support downlink/uplink 256 QAM

Support downlink 4x4 MIMO and uplink 2x2 MIMO

5G NR Bands

N1/n2/n3/n5/n7/n8/n20/n28/n30/n38/n40/

n41/n66/n71/ n77/n78/n79

LTE-FDD Bands

B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/

B19/B20/B25/B26/B28/B29/B30/B32/B66

LTE-TDD Bands

B34/B38/B39/B40/B41/B42/B46/B48

WCDMA

B1/B2/B4/B5/B6/B11

GNSS

GPS/Glonass/Beidou/Galileo

Data Rate

Peak download speed: 4.09 Gbps

Peak upload speed: 978 Mbps


Wi-Fi Standard

Standard

IEEE 802.11 a/b/g/n/ac/ax (W-Fi 6)

Frequency

2401 - 2483 MHz

5150 - 5835 MHz

Data Rate

2.4 GHz: 574 Mbps

5 GHz: 1201 Mbps

TX Power

2.4 GHz: 21 dBm

5GHz: 21 dBm

RX Sensitivity

2.4 GHz: -96 dBm

5 GHz: -80 dBm

Security

WEP, WPA, WPA2, WPA3

Advanced Feature

MU-MIMO, Beamforming, OFDMA


Application


Equip your bus
Speed, stability, and range coverage.
Seamless streaming and gaming with Wi-Fi 6 performance.




Empower your business
Keep office online, seamless failover between wired to 5G, ensuring connection without interruptions.






Equip your bus
Offer passengers the ultimate travel experience with superior connectivity. Manage bus IP camera remotely from the central hub.




Revolution industrial production
The backbone of smart factory and warehouse connectivity. Experience robust, lightning-fast connectivity to keep pace with productivity goals.
