ODC-5G07

Key features

Specifications

Frequency Bands	617 – 960 MHz 1452 – 1496 MHz 1710 – 2690 MHz 3300 – 5000 MHz 5150 – 5925 MHz
Antenna Gain (Max.)	3 dBi @ 617 – 960 MHz 6 dBi @ 1452 – 1496 MHz 9 dBi @ 1710 – 2690 MHz 9 dBi @ 3300 – 5000 MHz 7 dBi @ 5150 – 5925 MHz
Impedance	50 Ohm (nominal)
Antenna Connector	4x IPEX
RF Cable Length	4x 150 mm (6 inches)

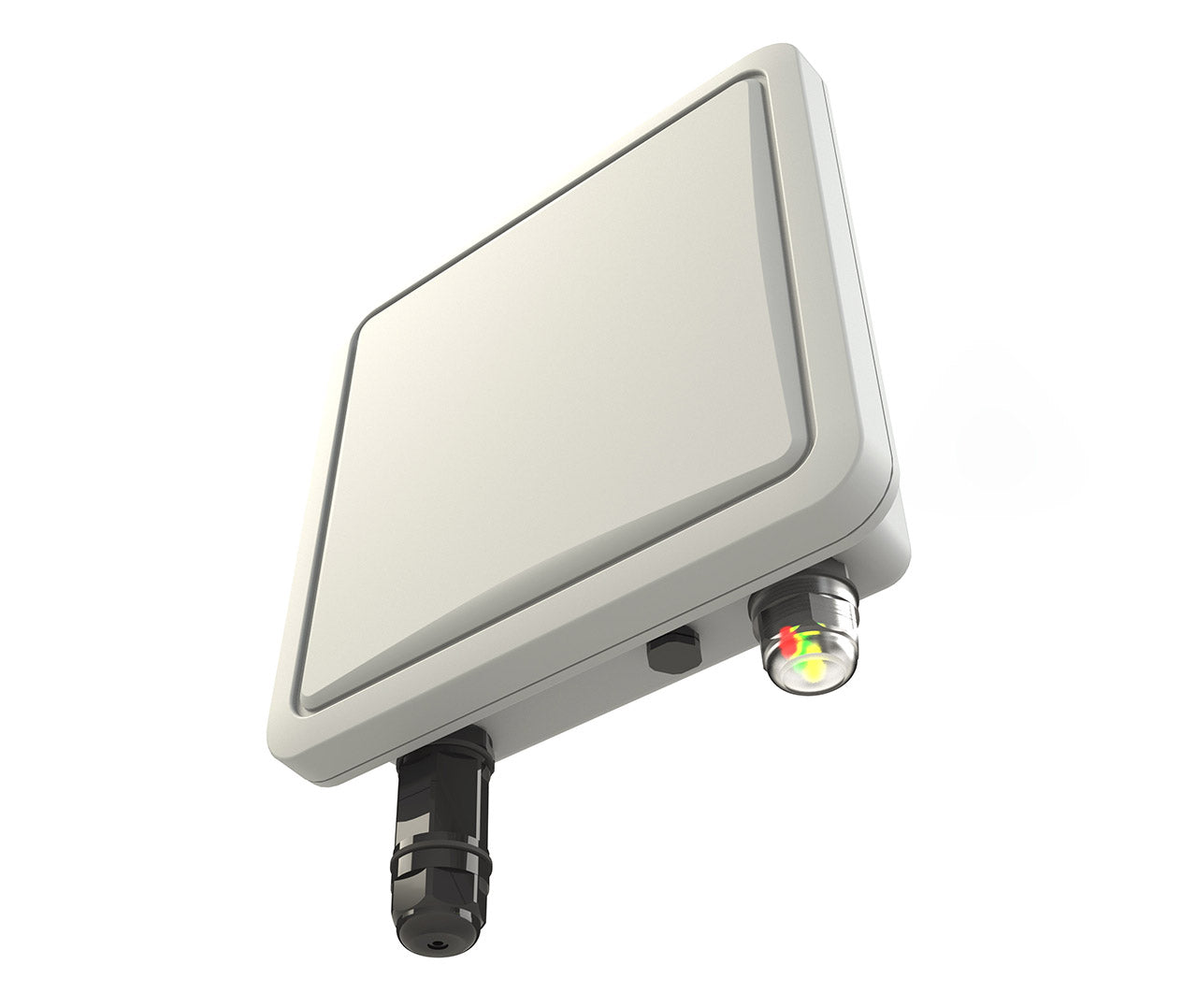

Interface (Default)	1x Waterproof Ethernet port 1x Waterproof LED + Reset button 1x Vent (* interface can be customized)
Dimensions	Outside 230 x 230 x 77.3 mm (9 x 9 x 3 inches) Inside 193 x 193 x 45 mm (7.5 x 7.5 x 1.7 inches)
Waterproof Rate	IP66
Material	ABS UV resistant plastic
Mounting Type	Pole mount

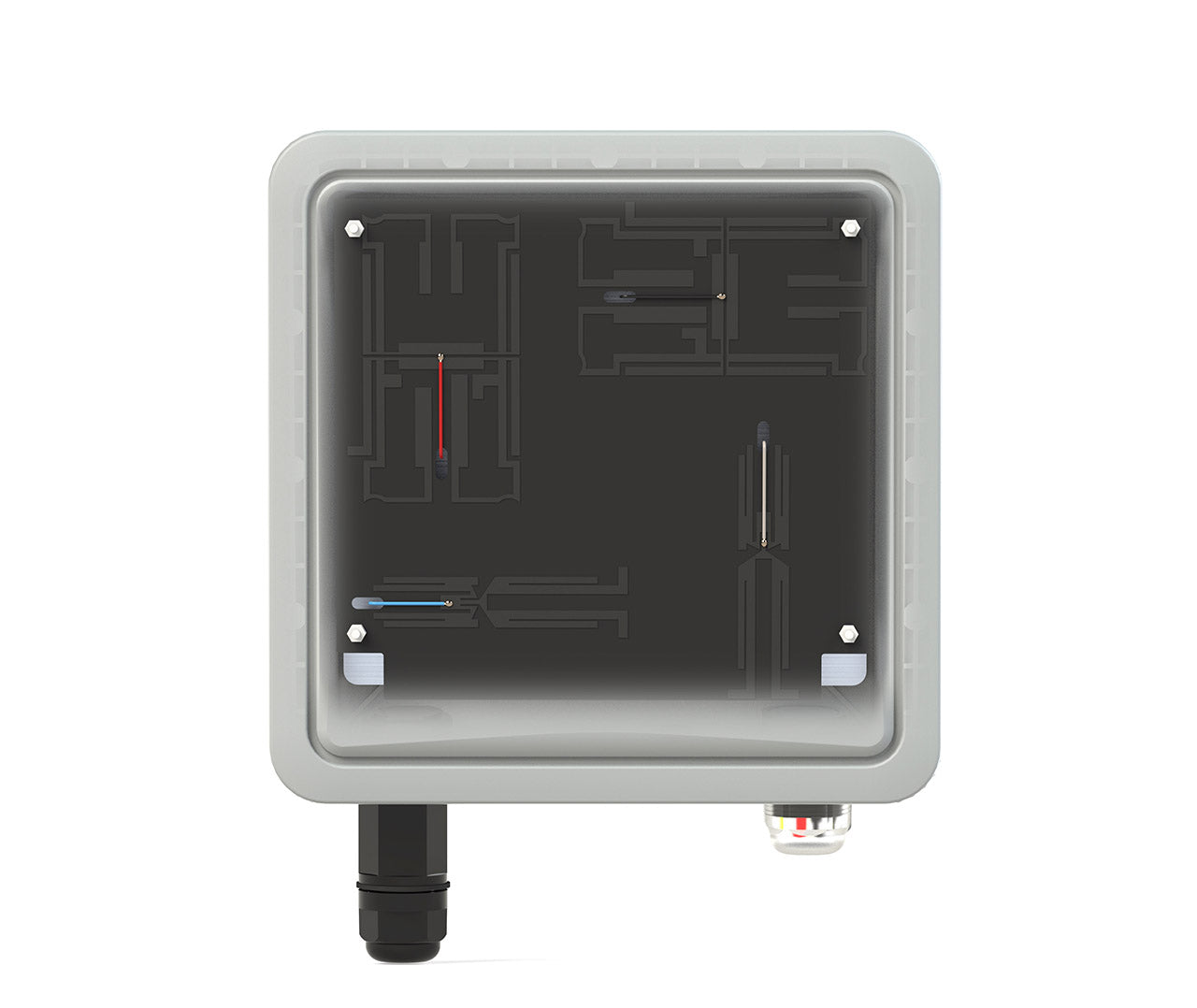

Antenna Specifications

5G FDD NR Band	Uplink Frequency	Downlink Frequency	ANT 1	ANT 2	ANT 3	ANT 4
N1	1920 – 1980 MHz	2110 – 2170 MHz	9	8	4	6
N2	1850 -1910 MHz	1930 - 1990 MHz	8	8	5	5
N3	1710 – 1785 MHz	1805 - 1880 MHz	8	8	5	5
N5	824 - 849 MHz	869 - 894 MHz	2	3	-	-
N7	2500 - 2570 MHz	2620 - 2690 MHz	8	8	6	8
N8	880 - 915 MHz	925 - 960 MHz	3	3	-	-
N12	699 - 716 MHz	729 - 746 MHz	0	2	-	-
N14	788 - 798 MHz	758 - 768 MHz	1	2	-	-
N18	815 - 830 MHz	860 - 875 MHz	1	2	-	-
N20	832 - 862 MHz	791 - 821 MHz	1	2	-	-
N25	1850 - 1915 MHz	1930 - 1995 MHz	8	8	5	5
N28	703 - 748 MHz	758 - 803 MHz	1	2	-	-
N30	2305 - 2315 MHz	2350 - 2360 MHz	9	8	5	6
N65	1920 - 2010 MHz	2110 - 2200 MHz	9	8	5	6
N66	1710 - 1780 MHz	2110 - 2200 MHz	9	8	5	6
N70	1695 - 1710 MHz	1995 - 2020 MHz	8	7	5	5
N71	663 - 698 MHz	617 - 652 MHz	1	1	-	-
N74	1427 - 1470 MHz	1475 - 1518 MHz	6	6	-	-
N91	832 - 862 MHz	1427 - 1432 MHz	1	2	-	-
N92	832 - 862 MHz	1432 - 1517 MHz	6	6	-	-
N93	880 - 915 MHz	1427 - 1432 MHz	2	3	-	-
N94	880 - 915 MHz	1432 - 1517 MHz	6	6	-	-
