Plug-n-Play Driver/Utility Auto-Installation on Windows OS platform
4G Mobile Internet Sharing via R36AH. Ideal solution for home, RV and boat for multiple-user Internet access (R36AH sold separately)
Parameter | Value |
---|---|
Supported Bands | LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B28 LTE-TDD: B40 WCDMA: B1/B2/B5/B8 GSM/EDGE: B2/B3/B5/B8 |
Region | Latin America/Australia/New Zealand |
Data Rates | LTE-FDD (Mbps): 150 (DL)/50 (UL) LTE-TDD (Mbps): 130 (DL)/30 (UL) DC-HSPA+ (Mbps): 42 (DL)/5.76 (UL) WCDMA (kbps): 384 (DL)/384 (UL) EDGE (kbps): 296 (DL)/ 236.8 (UL) GPRS (kbps): 107 (DL)/ 85.6 (UL) |
Interfaces | Mini-USB 2.0 Standard 6 PIN SIM card |
Antenna Connector | N type female |

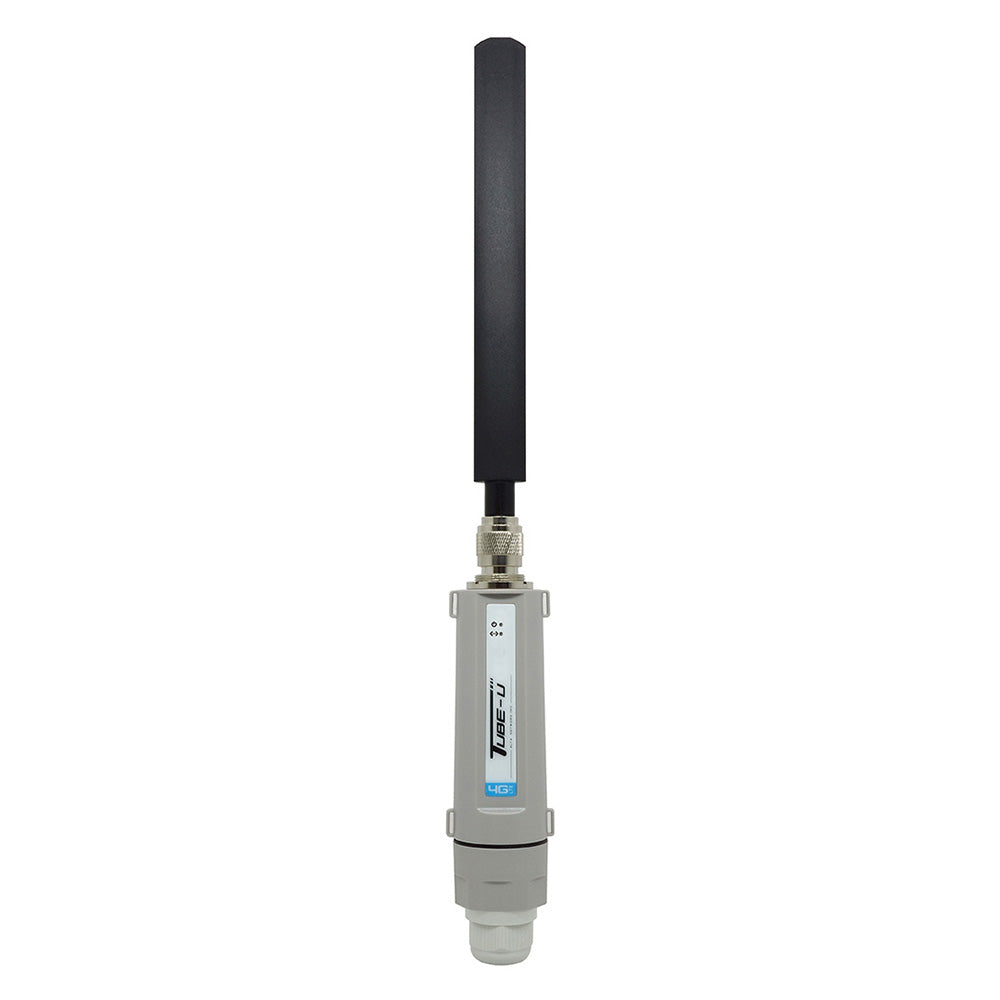

Antenna | High-gain 4G/LTE Omni Antenna |
LED Indicator | Power/Connection |
Waterproof IP rate | IP66 |
Supported System | Windows, Linux |
Temperature Range | -40°C ~ 80°C |
Storage Humidity | 5% ~ 98% (Non-condensing) |
Dimensions | 185 x 47 mm |
Weight | 135 g |
