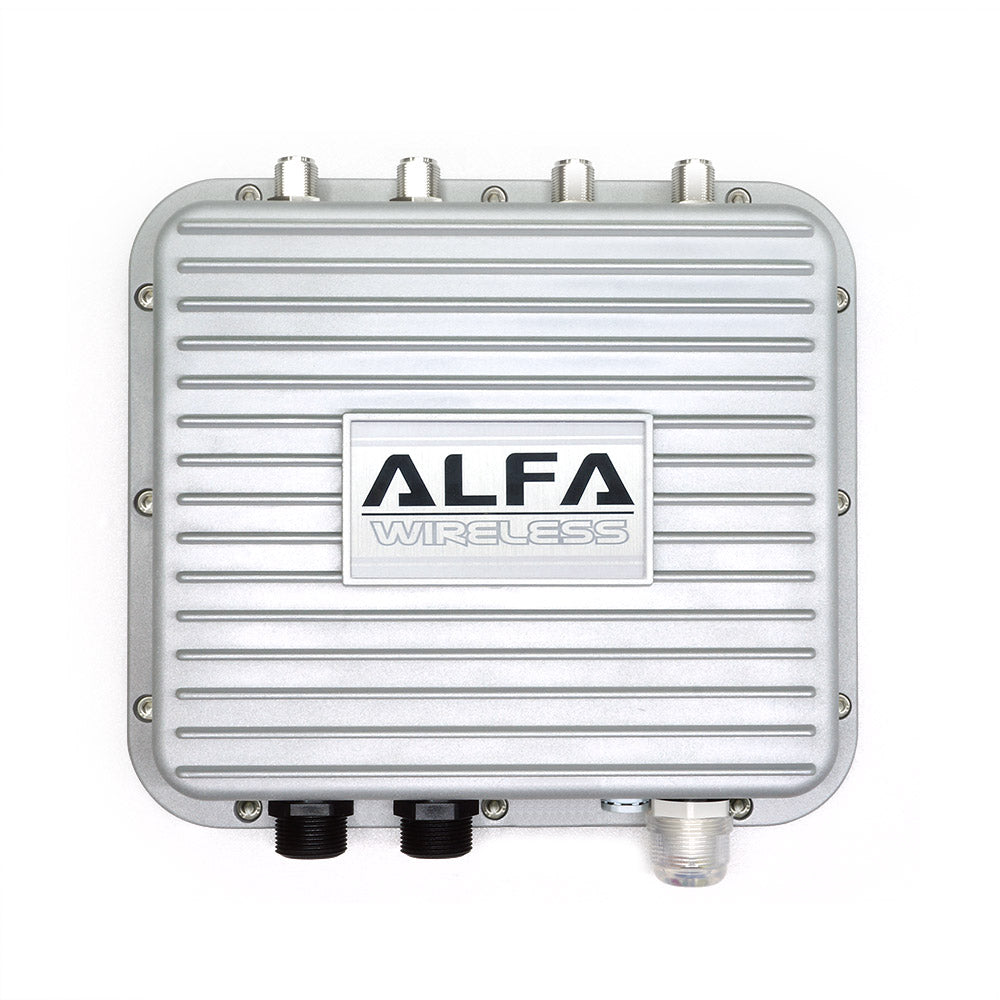

MultiPro-LoRa4G

MultiPro-LoRa4G is LoRaWAN with 4G LTE Outdoor Gateway

MultiPro-LoRa4G gateway provides long-range backbone connectivity for IoT devices. It gathers data from IoT devices and transmits it to the LoRaWAN network server, with 4G LTE providing a fast, reliable internet connection to deliver data to the cloud.

Key features

LoRaWAN Antenna Port
4G LTE Antenna Port
GPS Antenna Port
Waterproof PoE Ethernet Port
Waterproof SIM Slot
LED Indicator
Heavy Duty IP67 Metal Enclosure

Specifications

Platform
SOC	MediaTek MT7621A with 880 MHz dual-core MIPS 1004Kc CPU
RAM	256 MB of DDR3
Flash	16 MB
Power source required	Standard IEEE 802.3af/at PoE Gigabit Ethernet
SIM slot	1x microSIM waterproof slot
LED indicator	1x Power 1x LoRaWAN 1x 4G

LoRaWAN
Chipset	Semtech SX1308
Frequency	863 ~ 870 MHz (EU) 902 ~ 928 MHz (US)
TX power	21 dBm
RX sensitivity	EU: -124 dBm (SF7) / -138 dBm (SF12) US: -125 dBm (SF7) / -139 dBm (SF12)
Antenna connector	N female

4G/LTE
Module	EG25-G
LTE band	FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28 TDD: B38/B39/B40/B41
Data rate	Max. 150 Mbps (DL) / 50 Mbps (UL)
GNSS	GPS/GLONASS/BeiDou/Galileo
Antenna connector	2x 4G (N female) 1x GPS (N female)
