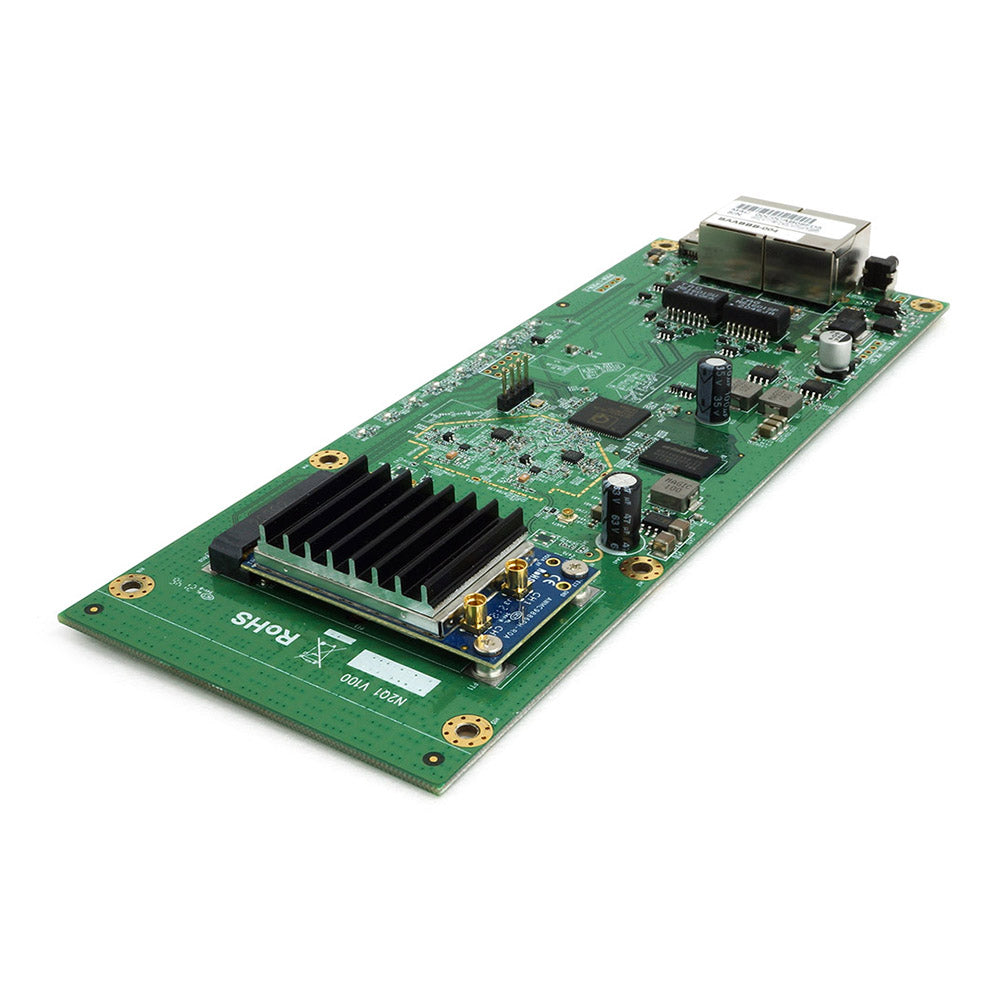

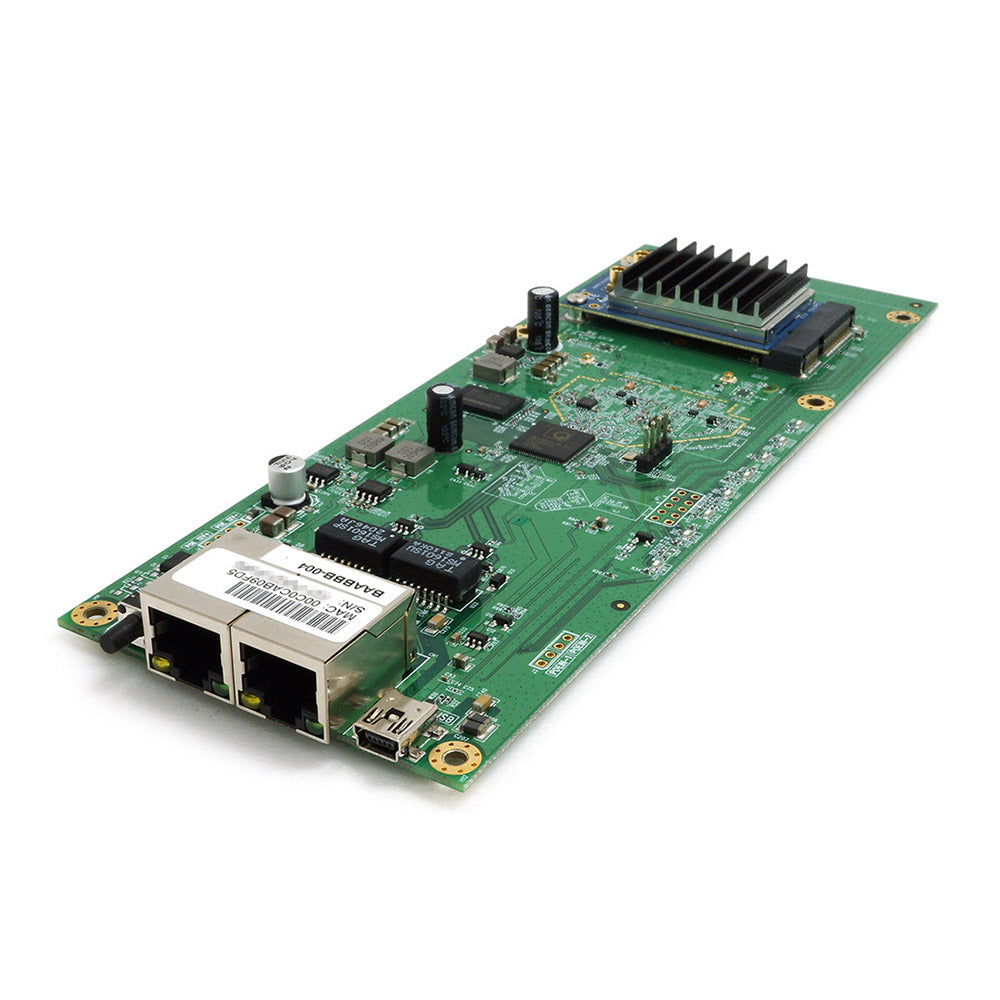

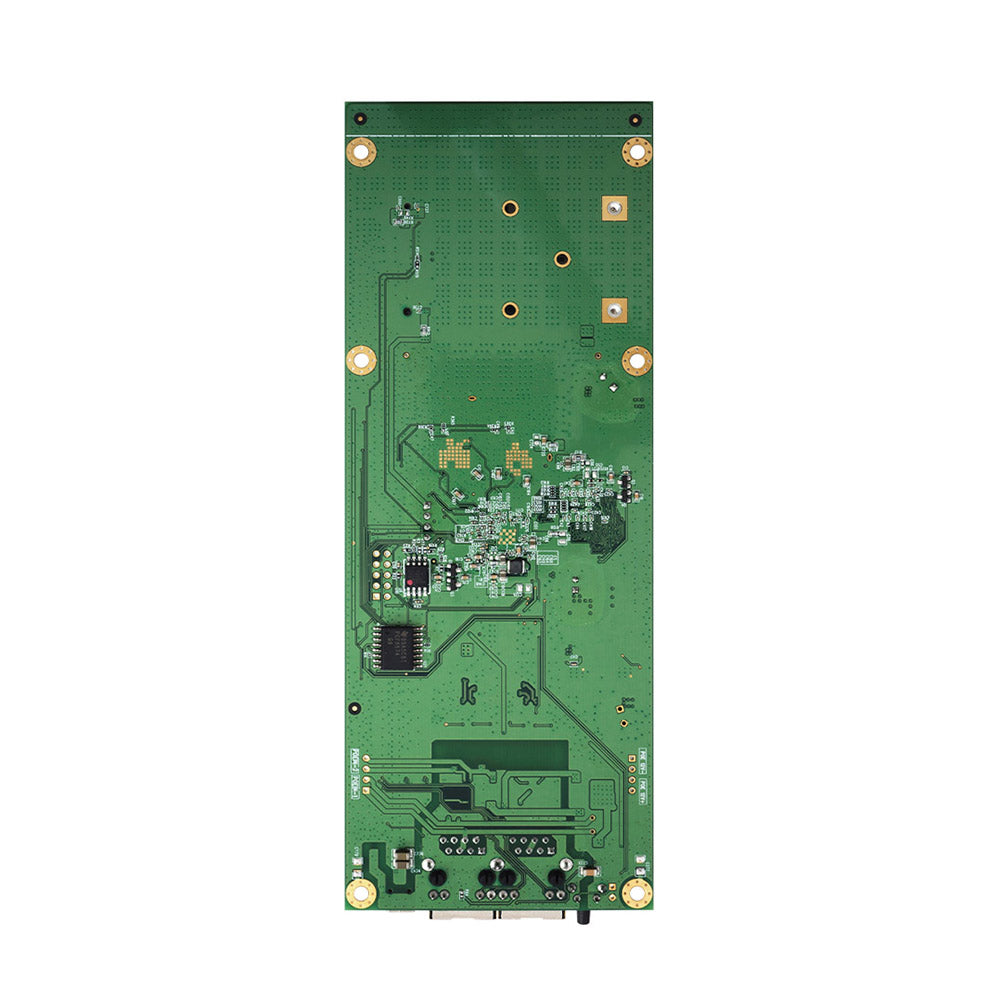

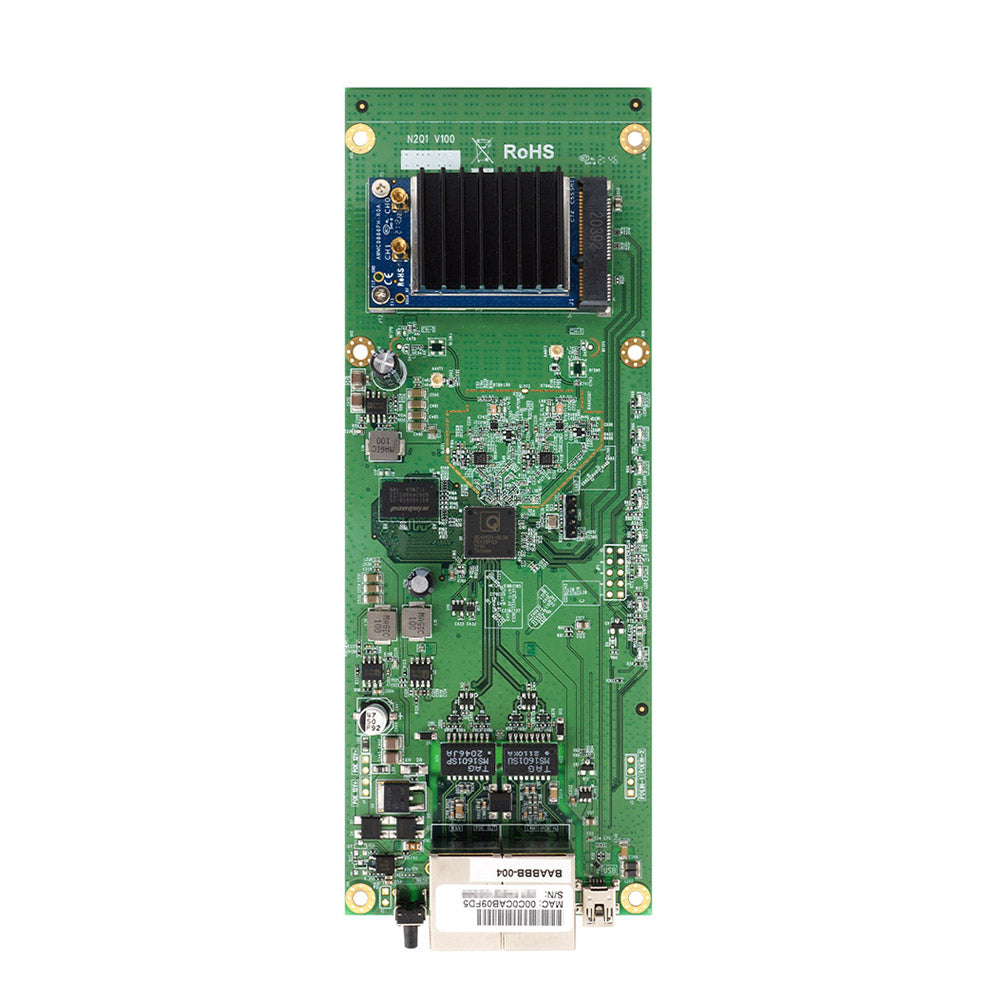

N52Q_PCBA

Outdoor 2.4 GHz + 5 GHz AP/CPE platform With dual Ethernet, PoE and USB 2.0

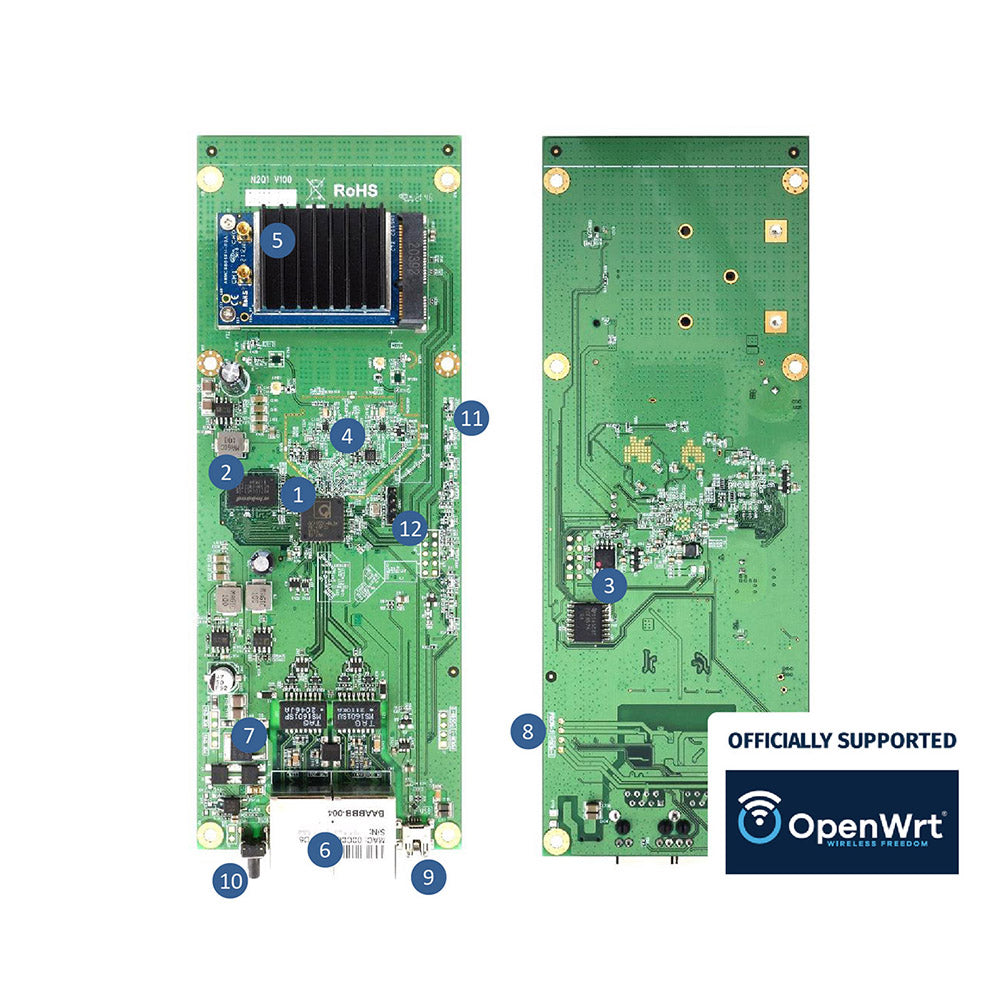

1. (1) Qualcomm™ QCA9531 (MIPS 650 MHz)
2. (2) 128 MB DDR2
3. (3) 64 MB SPI NOR flash
4. (4) 2.4 GHz 300 Mbps (up to 27dBm)
5. (5) 5 GHz QCA9886 867 Mbps (up to 23 dBm)
6. (6) 2x Fast Ethernet with ESD protection
7. (7) Support passive PoE input and pass through
8. (8) Support standard 802.3at/af module
9. (9) USB 2.0 mini Type-B (host)
10. (10) Push button
11. (11) 8× LED
12. (12) External LED 2.54 pin hole
