APS104G-EX_PoE

APS104G-EX_PoE

APS104G-EX_PoE


  • Ultra-Fast Gigabit speed, Rapid Data Transmission
  • Plug & Play Deployment, NO Expertise Required
  • Fanless, Rugged & Reliable Design
  • Real Time LED Indicators
  • 802.3af/at Power over Ethernet compliant, Max. 30W per port
  • Fit on Desktop or Bring It to Rackmount

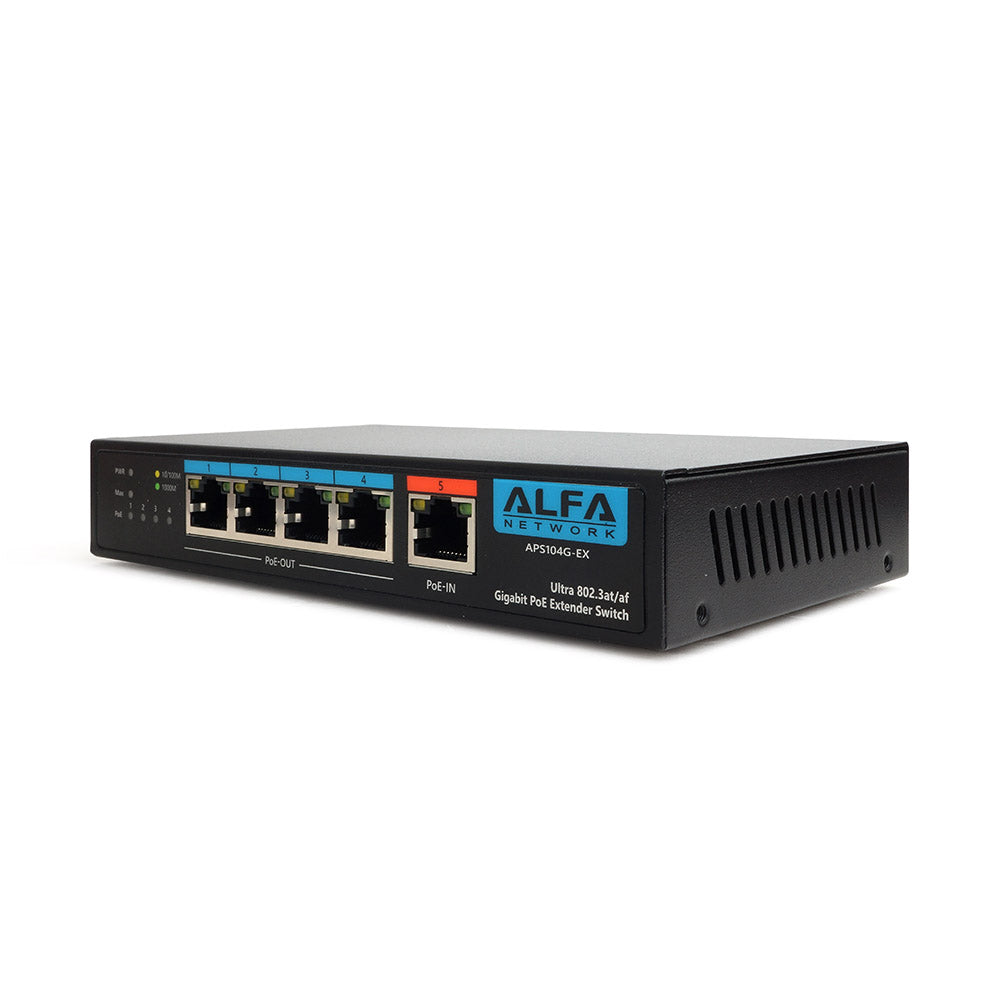

60W Ultra PoE to 4-Port 802.3af/at Gigabit PoE Extender Switch

image1 image2

Application Scenario

  • Max. 60W 802.3bt PoE input, up to four 802.3af/at PoE device extensions


  • Plug-n-Play, Gigabit 100-Meter PoE Extension for Your Network


Standards

Network Standards IEEE802.3
IEEE802.3u
IEEE802.3ab
IEEE802.3az
IEEE802.3x
IEEE802.3af
IEEE802.3at
Network Media 10BASE-T: UTP category 3,4,5 cable (≤100m)
100BASE-TX: UTP category 5,5e cable (≤100m)
1000BASE-T: UTP category 5e,6 cable (≤100m)
Energy Saving IEEE 802.3az
MAC Address Table 2K, Auto-learning, Auto-aging
Switch Architecture Store-and-Forward
Switch Fabric 10Gbps
Flow Control IEEE 802.3x pause frame for full-duplex
Back pressure for half-duplex

Hardware Specifications

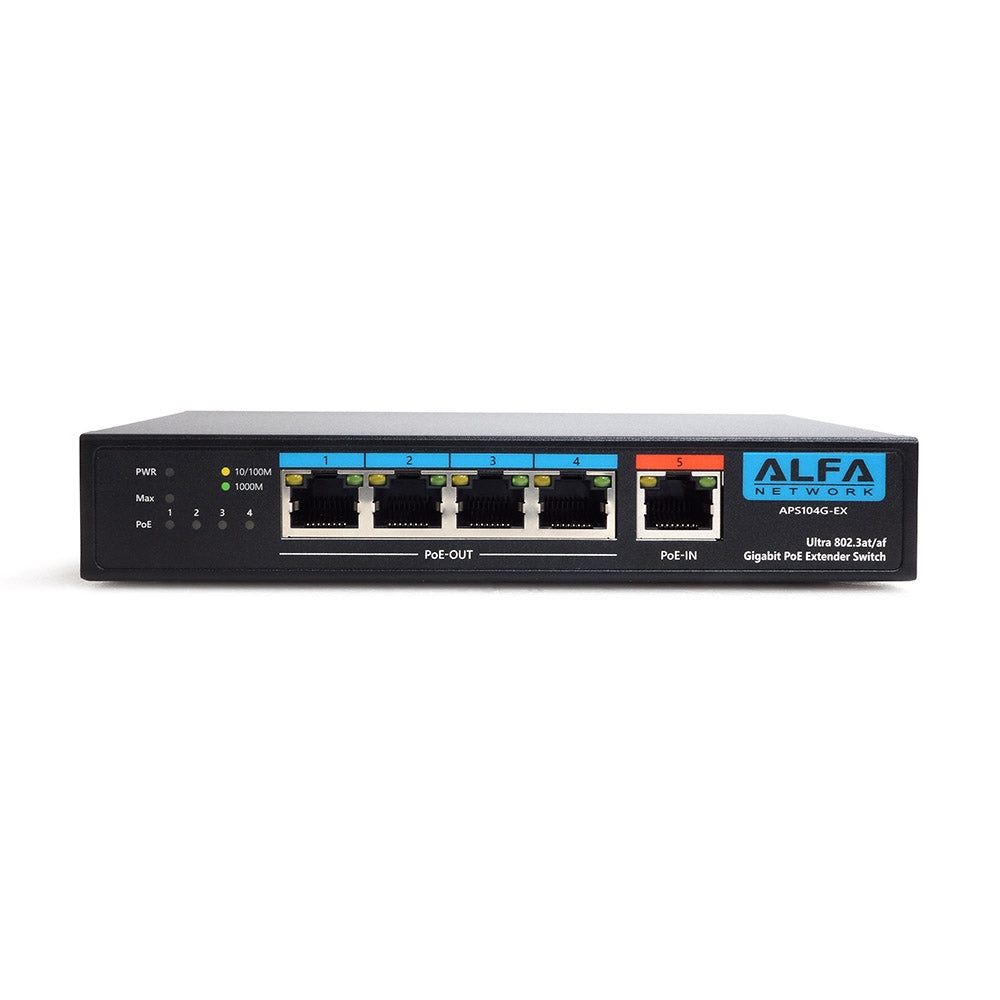

Ethernet Ports 5 x 10/100/1000 BASE-T RJ45 Auto-MDI/MDI-X ports
PoE PD (power-in) Port Port 5, 802.3bt PoE end-span and mid-span PD compatible
Max. 60 watts input
PoE Injector (power-out) Port Port 1 – port 4 with 802.3at/af PoE , Max. 30/15.4 watt output

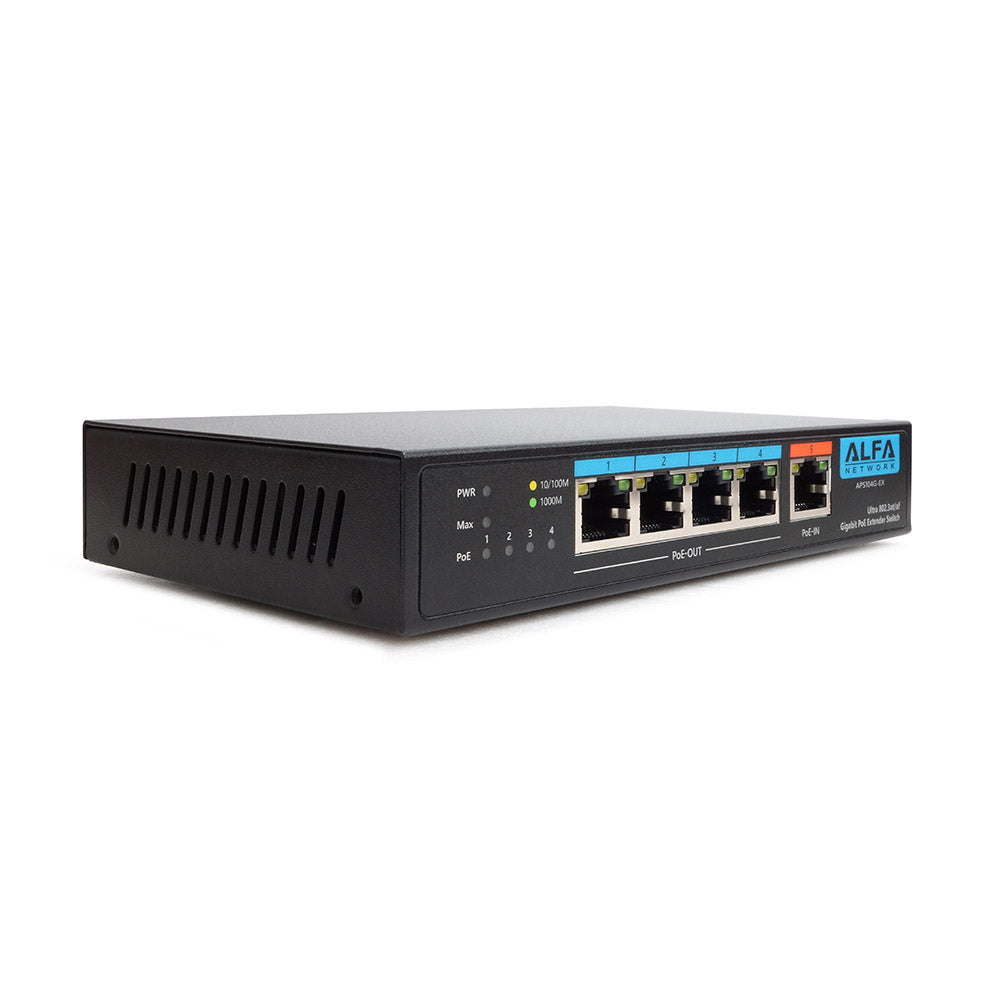

LED PWR (Green)
Max (Orange)
PoE (Orange)
10/100Mbps LNK/ACT (Orange)
1000Mbps LNK/ACT (Green)

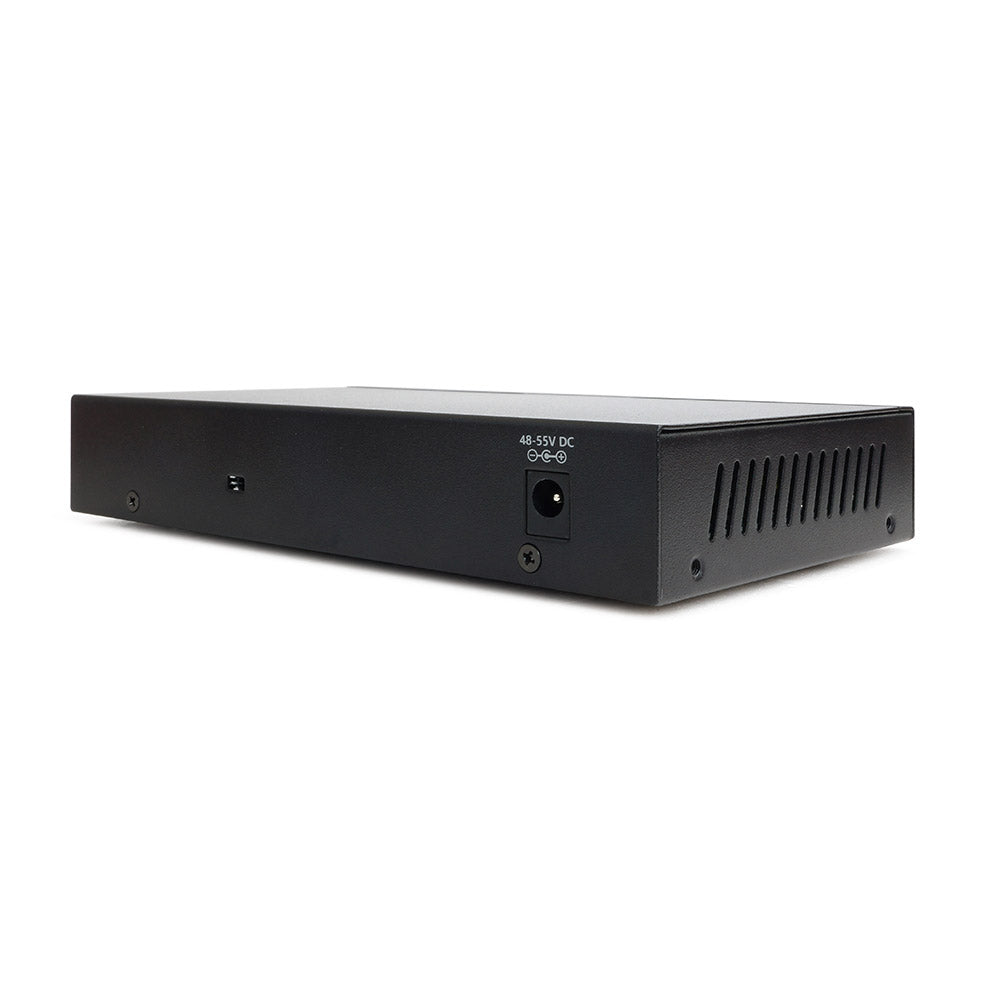

Power Requirements 802.3bt PoE, (optional : DC power adapter)

Power over Ethernet

PoE Power-in Requirement 802.3bt ultra PoE
PoE Power Output 802.3af: Max. 15.4 watt
802.3at Max. 30.8 watts
PoE Power Budget 60 watts (max.) @ 25 degrees C
PoE Ability Input: 60W / 802.3bt, output: 30W / 802.3at, 15.4W / 802.3af
ESD Protection 4KV Contact Discharge, 6KV Air-Discharge
Dimensions (W x D x H) 160 x 93 x 28 mm
Weight 380g

Environmental

Operating Temperature 0°C ~ 40 °C (32 °F ~104°F )
Storage Temperature -40 °C ~ 70 °C (-40 °F ~158°F )
Operating Humidity 10% ~ 90% non-condensing
Storage Humidity 5% ~ 90% non-condensing
