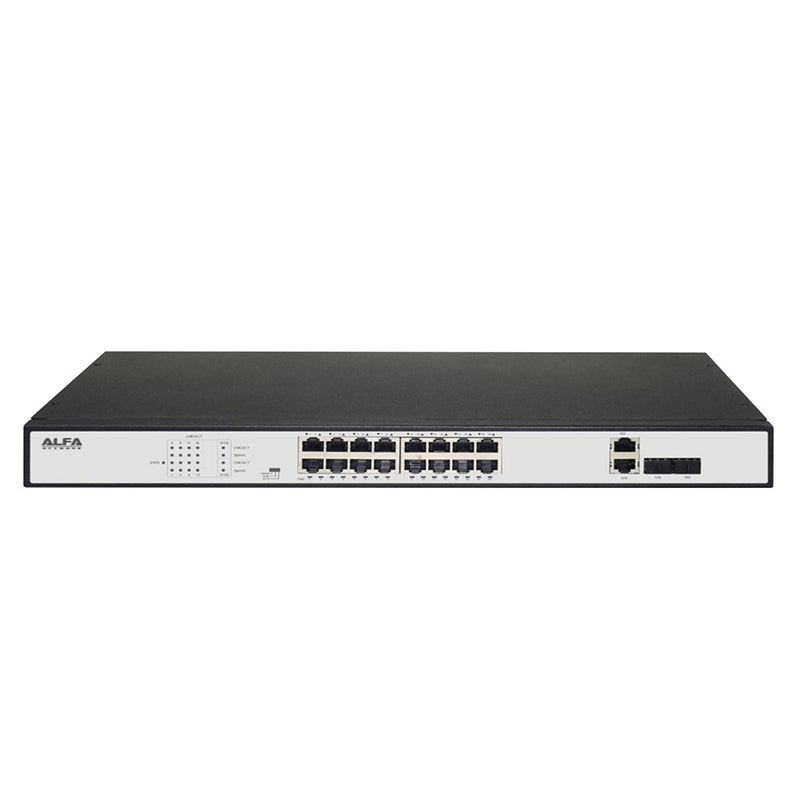

APS1602E is a high-performance 16-ports Ethernet with 2-ports Gigabit unmanaged PoE switch engineered for stable and efficient network deployments. It offers 16 PoE ports compliant with IEEE 802.3af/at standards, each delivering up to 30 W, with intelligent detection to ensure safe power delivery to standard PD devices. With builtin VLAN and CCTV modes, it supports up to 250 meters of long-distance data and power transmission—ideal for surveillance and secure network segmentation. Featuring store-and-forward switching, full-duplex flow control, and robust metal housing with active cooling.
APS1602E is built for performance and reliability. Perfect for offices, residential buildings, hotels, and campus networks requiring secure, scalable PoE connectivity.
Key Features
-
Complies with IEEE 802.3at/af standard
-
Delivers up to 30 W per port
-
Auto-identifies standard PoE devices to deliver safe power.
-
Data transmission and power supply distance guaranteed 100 meters.
-
Support VLAN and CCTV mode, power and data transmission distance up to 250 meters
-
Support IEEE 802.3az green energy-saving
- Support PD-ALIVE function
Specifications
|
Standard
|
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3at, IEEE 802.3af, IEEE 802.3az |
|
|
Network Ports
|
16x 10/100 Mbps Ethernet ports 2x 10/100/1000 Mbps Gigabit ports |
|
|
LED Indicators |
PWR, LNK/ACT, PoE, Speed |
|
|
PoE Ports |
1 - 16 ports with 802.3at/af PoE injector function |
|
|
PoE Pin Assignment |
1 / 2 (+), 3 / 6 (-) :Mode A |
|
|
PoE Output per Port |
Up to 30 W |
|
|
Total PoE Power Budget |
250 W |
|
|
Power Supply |
270 W |
|
|
Forwarding Mode |
Store-and-Forward |
|
|
Switching Capacity |
7.2 Gbps |
|
|
MAC Address Table |
8K with auto-learning and auto-aging |
|
|
Jumbo Frame |
9216 Bytes |
|
|
Packet Buffer Memory |
4 Mbit |
|
|
Forwarding Rate |
5.4 Mbps |
|
|
Input Voltage |
AC 100 – 240 V, 5 A 50/60 Hz |
|
|
Operating Temperature |
0 °C to 45 °C |
|
|
Operating Humidity |
10%–90% RH (non-condensing) |
|
|
Dimensions (L × W × H) |
440 × 207 × 44 mm |
|
|
Surge Protection |
±4KV (common mode), ±2KV (differential mode) |
|
|
MTBF |
(Mean Time Between Failures) > 50,000 hours |
|
|
＊VLAN |
With VLAN mode enabled, ports 1 to 16 are isolated from each other, allowing communication only through uplink ports 17 and 18. |
|
|
＊CCTV |
Activate CCTV mode to extend network transmission distance up to 250 meters while maintaining stable connectivity at 10 Mbps. |
|
|
＊PD-ALIVE |
Monitors the status of connected PoE devices. If a device becomes unresponsive, it will automatically restart the power supply to restore operation, ensuring maximum uptime and reducing manual maintenance for critical systems like IP cameras or access points. |
|
