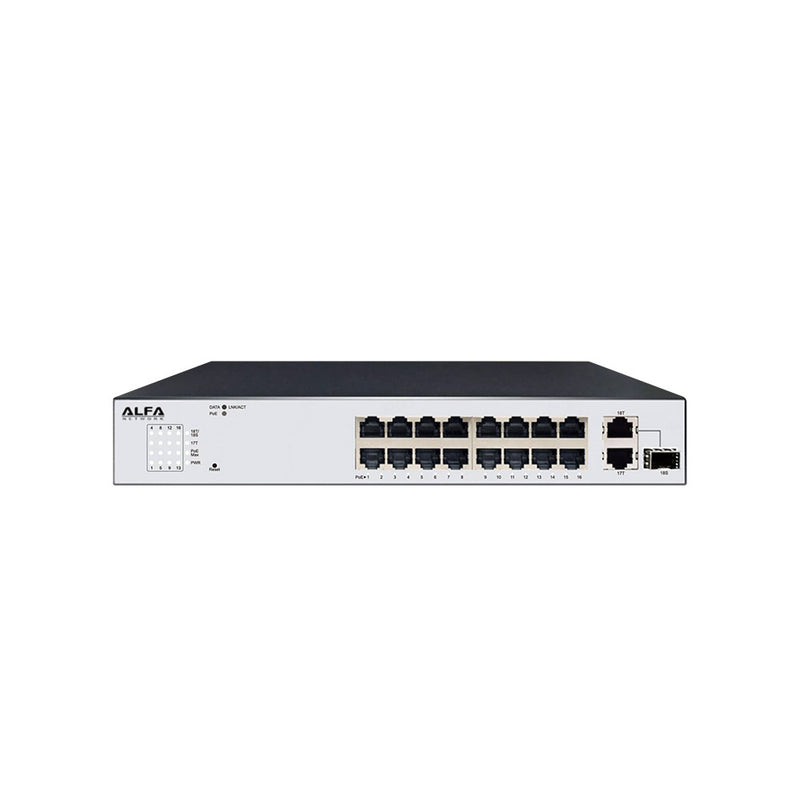

APS1602S is a high-performance 16-port Ethernet with 2-port Gigabit Web Smart PoE Switch that offers a perfect blend of performance and cost-efficiency. It features 16 PoE ports compliant with IEEE 802.3af/at standards, each delivering up to 30 W, with intelligent detection to ensure safe power delivery to standard PD devices. With an intuitive Web-based management interface, you can easily configure VLANs, QoS, and monitor traffic, making it the ideal backbone for IP surveillance and SMB networks.
APS1602S is built for performance and reliability. Perfect for offices, residential buildings, hotels, and campus networks requiring secure, scalable PoE connectivity.
Key Features
-
Complies with IEEE 802.3at/af standard
-
Delivers up to 30 W per port
-
Auto-identifies standard PoE devices to deliver safe power.
-
Supports 802.1Q VLAN, Port VLAN, QoS, bandwidth control and storm suppression.
-
Supports Web management, which is simple and easy to maintain
-
Support port traffic statistics, port monitoring, cable detection, and loopback protection
- Support PD-ALIVE function
Specifications
|
Standard
|
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3at, IEEE 802.3af, IEEE 802.3az |
|
Network Ports
|
16x 10/100 Mbps Ethernet ports 1x 10/100/1000 Mbps Gigabit Combo port 1x 10/100/1000 Mbps Uplink port |
|
LED Indicators |
PWR, LNK/ACT, PoE, PoE Max |
|
PoE Ports |
1 - 16 ports with 802.3at/af PoE injector function |
|
PoE Pin Assignment |
1 / 2 (+), 3 / 6 (-); 4 / 5 (+), 7 / 8 (-) |
|
PoE Output per Port |
Up to 30 W |
|
Total PoE Power Budget |
185 W |
|
Power Supply |
200 W |
|
Forwarding Mode |
Store-and-Forward |
|
Switching Capacity |
7.2 Gbps |
|
MAC Address Table |
8K with auto-learning and auto-aging |
|
Jumbo Frame |
9216 Bytes |
|
Packet Buffer Memory |
4 Mbit |
|
Forwarding Rate |
5.4 Mbps |
|
Input Voltage |
AC 100 – 240V, 5A 50/6 0Hz |
|
Operating Temperature |
0 °C to 45 °C |
|
Operating Humidity |
10%–90% RH (non-condensing) |
|
Dimensions (L × W × H) |
280 × 180 × 44 mm |
|
Surge Protection |
±4KV (common mode), ±2KV (differential mode) |
|
MTBF (Mean Time Between Failures) |
> 100,000 hours |
Software Features
|
Category |
Software Features |
Detailed Description |
|
Configuration |
VLAN |
Static VLAN configuration VLAN settings management |
|
QoS |
Supports DSCP priority mapping Supports 4 queues with SP and WRR scheduling |
|
|
IGMP |
IGMP related multicast control |
|
|
Trunk Group |
Trunk group supports up to 8 ports |
|
|
Loop Prevention |
Loop prevention configuration |
|
|
Port Mirroring |
Port-based mirroring for traffic monitoring and trouble shooting |
|
|
Port Isolation |
Port isolation to improve security and reduce lateral traffic |
|
|
Bandwidth Control |
Bandwidth control / rate limiting |
|
|
Jumbo Frame |
Jumbo frame enable/disable and related settings |
|
|
MAC Constraint |
MAC constraint control |
|
|
EEE |
Supports Energy Efficient Ethernet |
|
|
Security |
MAC Address Table |
Static MAC entry support MAC address search function |
|
Storm Control |
Storm control to mitigate Broadcast/multicast/unknown traffic bursts |
|
|
Monitoring |
Port Statistics |
Port traffic statistics monitoring |
|
Cable Diagnostic |
Cable diagnostic tools for link trouble shooting |
|
|
PoE |
PoE Information |
Displays total power, power consumed and MCU software version |
|
PoE Configuration |
PoE basic configuration, port priority and power control |
|
|
Maintenance |
Tools |
Firmware upgrade, configuration backup & restore, reset, reboot |
