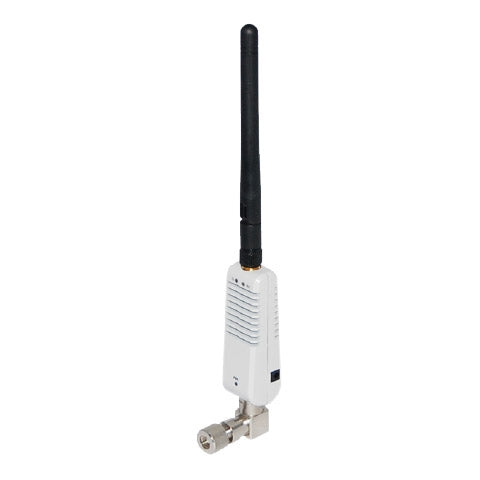

The APA05 Wi-Fi Signal Booster is a highly efficient and compact unit designed to increase the performance and range of any 2.4 GHz wireless device. This includes Bluetooth, P2P, P2MP, 802.11n, 802.11b, 802.11b+, 802.11g, and 802.11b+g+n access points and wireless routers.
The APA05 extends signal range, and in certain conditions, can double the range of these wireless devices. This eliminates the use of an additional radio with its associated data line, power outlet, signal interference, and setup headaches. The APA05 is the fast and easy way to extend your signal range in any environment.
|Frequency Band||2.4 GHz ~ 2.5 GHz|
|TR Switch Time||< 1μ sec|
|Size – L x W x H||155mm x 21.6mm x mm|
|RF Input Connector Type||90° RP-SMA Male|
|RF Output Connector Type||RP-SMA Female|
|Tx Linear output Power||500 mW / +27 dBm max. @ 11g |
800 mW / + 29dBm max @ 11b
|Diagnosis LED||Pwr@Green |
|DC Supply Voltage||6.0V, 1A|
|Rx Input power||-10 dBm|
|Tx Input power||+20 dBm|
|Operating Temperature||-20 ~ +50 °C|
|Storage Temperature||-40 ~ +90 °C|
