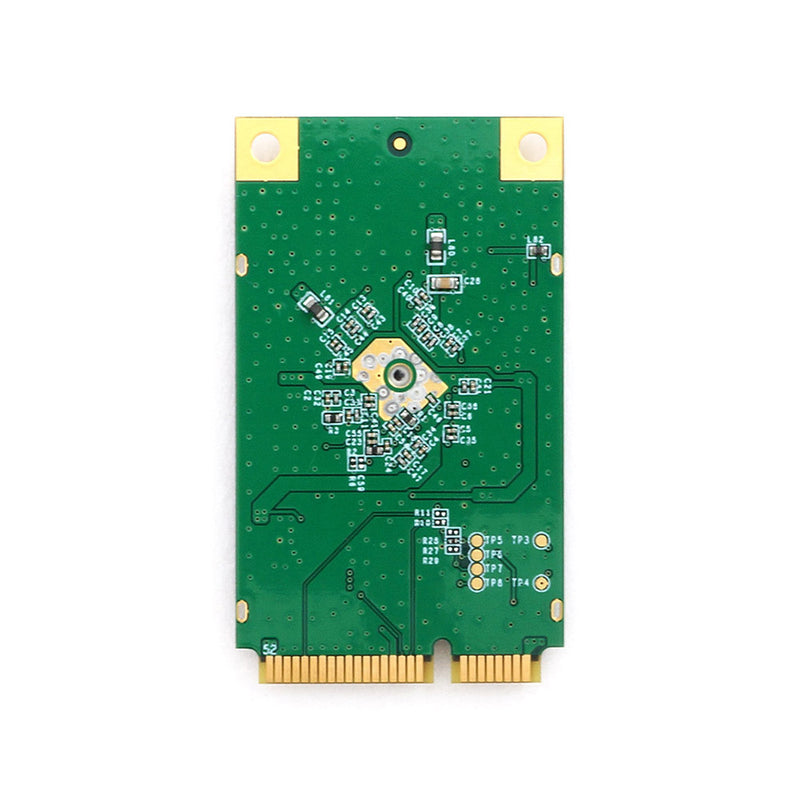

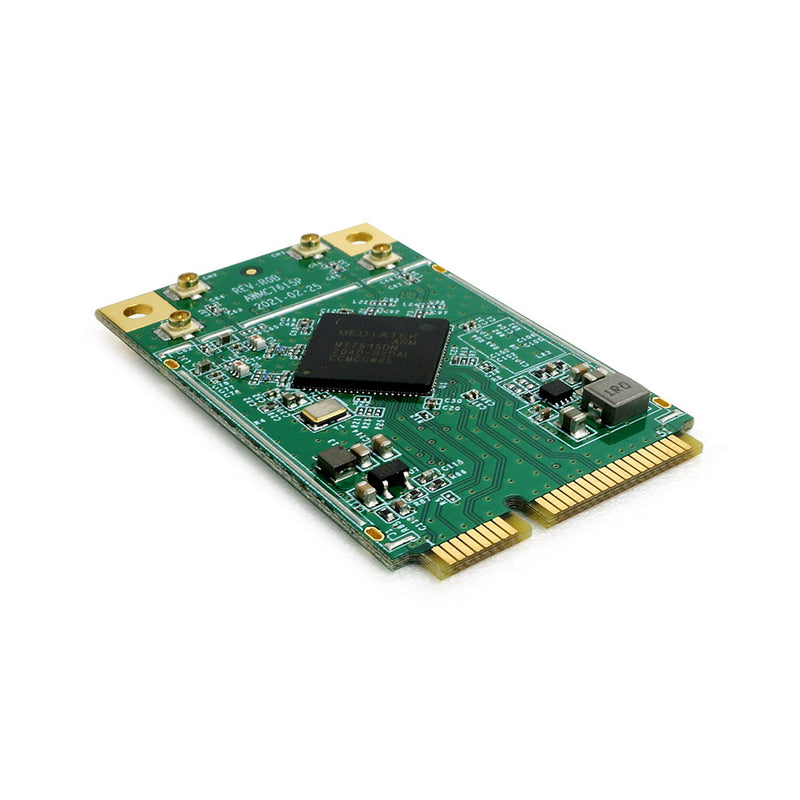

AWMC7615P

dual-band, dual-concurrent (DBDC) mini PCIe WiFi5 Wave2 (802.11ac) card

(1) MediaTek™ MT7615D broadband radio
(2) 2× IPEX/U.FL for 2.4 GHz antennas
(3) 2× IPEX/U.FL for 5 GHz antennas
(4) Full body metal shielding design
(5) Regular full-size Mini Card form factor
(6) PCI Express 2.0 interface

Description

** AWMC7615P is a dual-band, dualconcurrent (DBDC) WiFi5 module **

AWMC7615P is fully compliant with IEEE 802.11ac and IEEE 802.11a/b/g/n standards, supports simultaneous operation in 2.4 GHz and 5 GHz bands (DBDC) with dual 2T2R antenna configuration.

The ARM™ based MediaTek™ MT7615D radio chipset offers full host CPU offload, allowing use of the card even in resource limited embedded systems. Optimized RF architecture and baseband algorithms provide superb performance and low power consumption.

Official support in open source driver for Linux will help kick off your next WiFi project.

Specifications

Parameter	Value
Chipset	MediaTek™ MT7615D
IEEE 802.11 standards	a/b/g/n/ac
Frequency	2.4 GHz 5 GHz
Data rate	802.11ac: 867 Mbps 802.11n: 300 Mbps
TX power	2.4 GHz: 20 dBm (per chain) 5 GHz: 20 dBm (per chain)
Antenna connectors	4× IPEX/U.FL
Interface	PCIe x1
Operating systems	Linux
Form factor	full-size mini PCIe
Operating humidity	10 % ~ 90 % RH, non-condensing
Operating temperature	-10 ° ~ 70 ° C
Dimensions	30 × 51 × 3.9 mm (without metal shielding)
