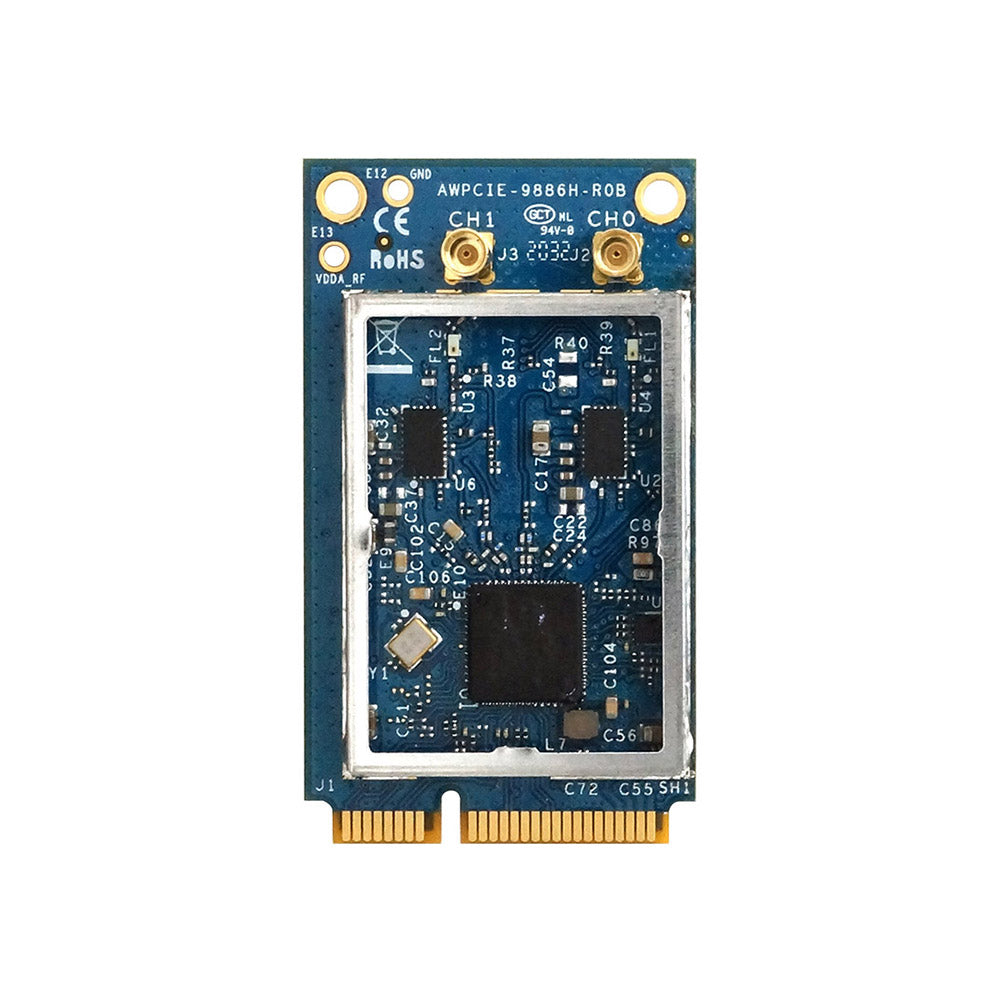

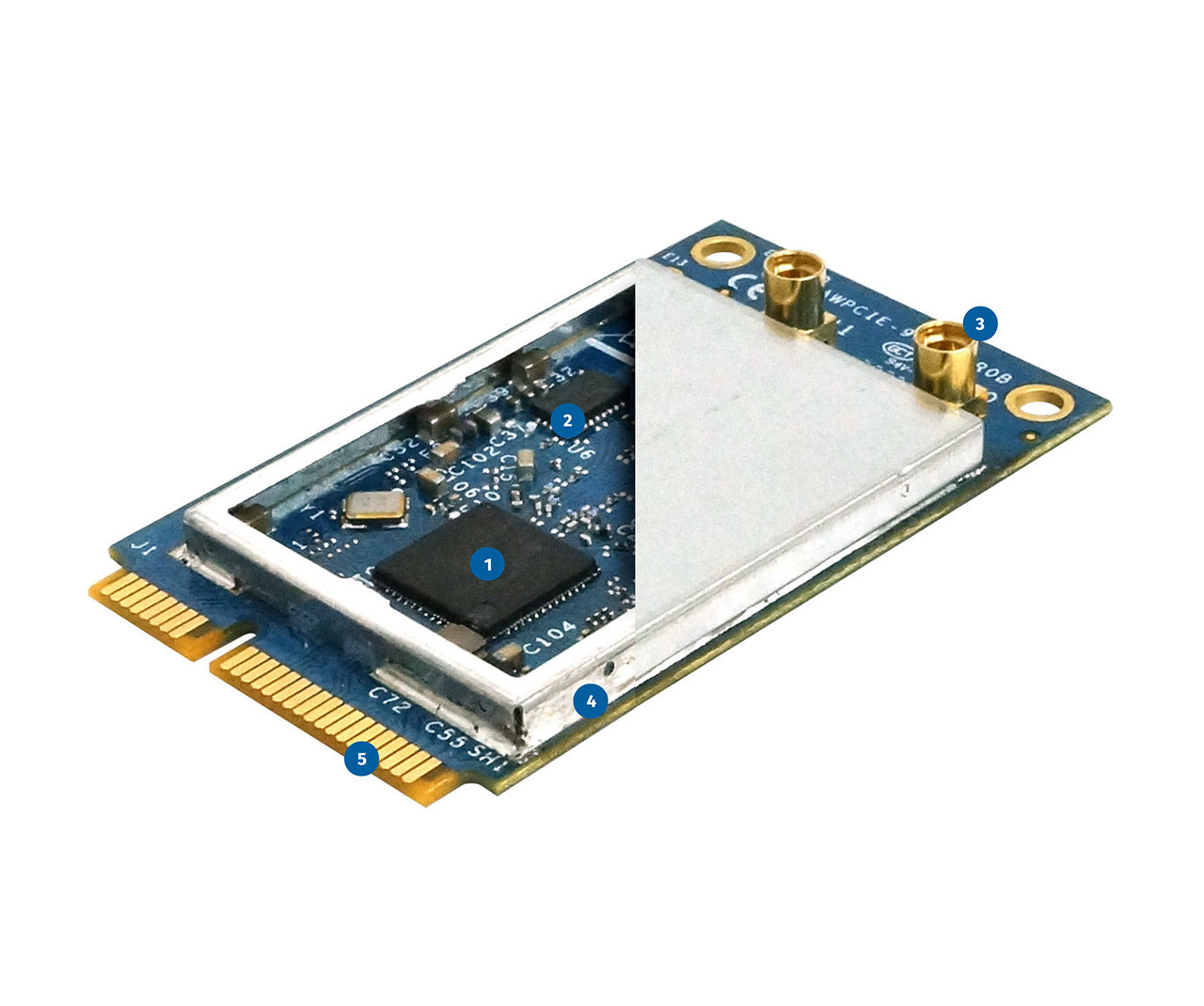

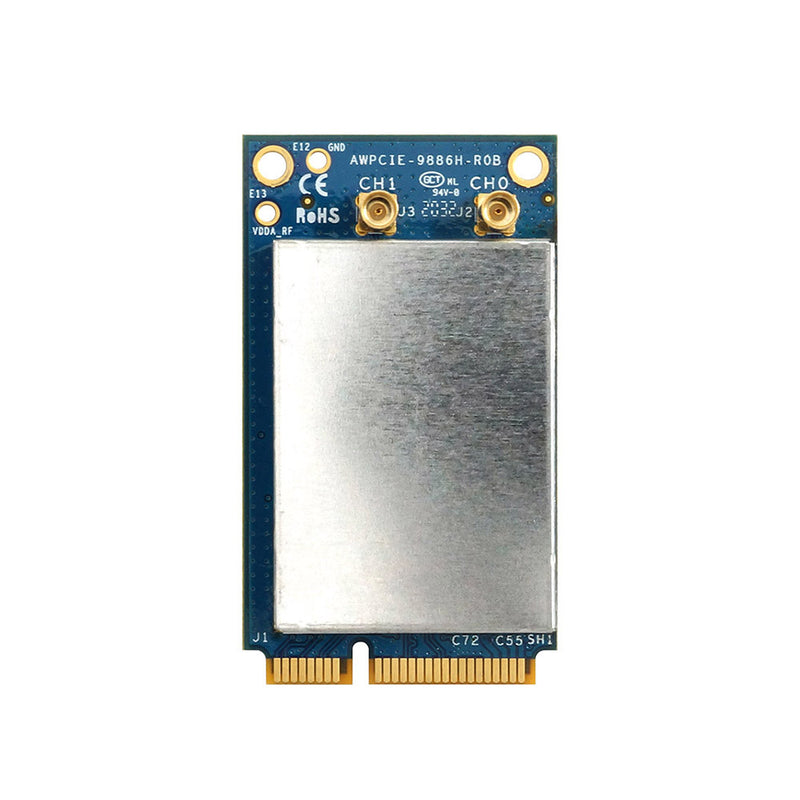

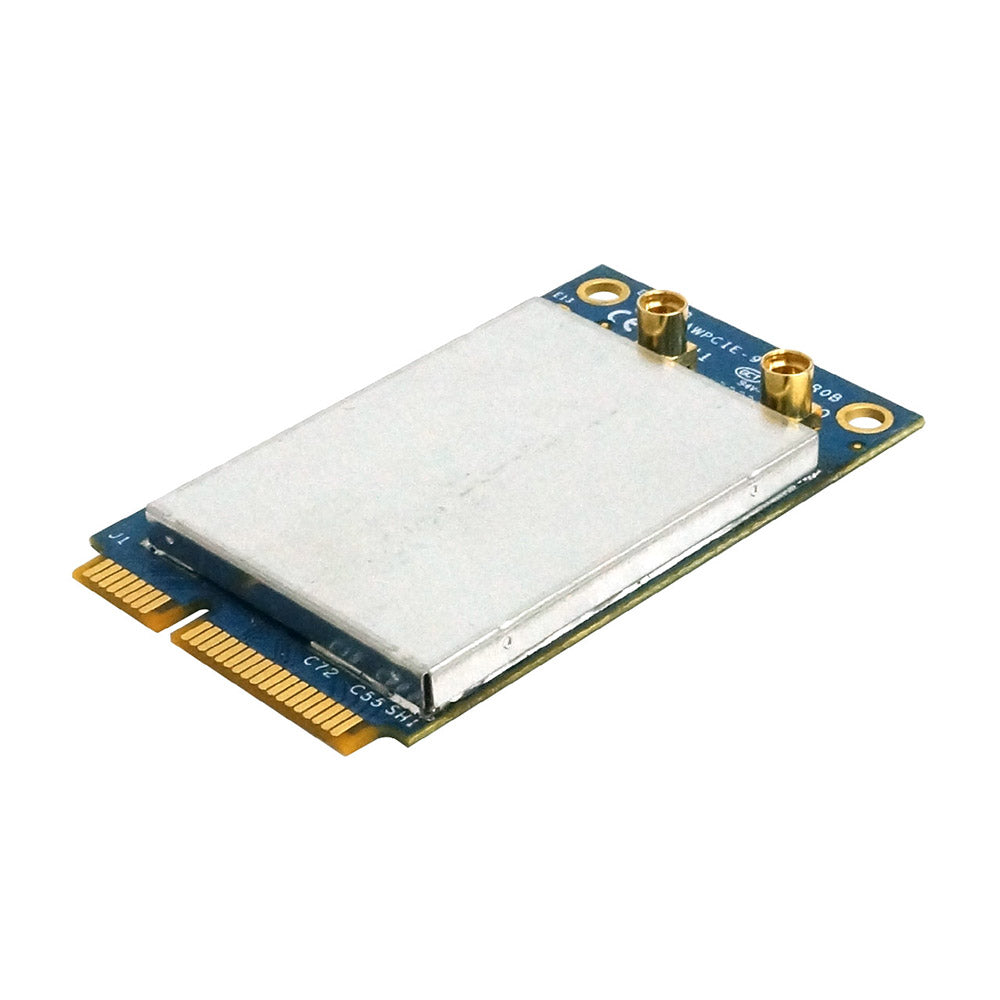

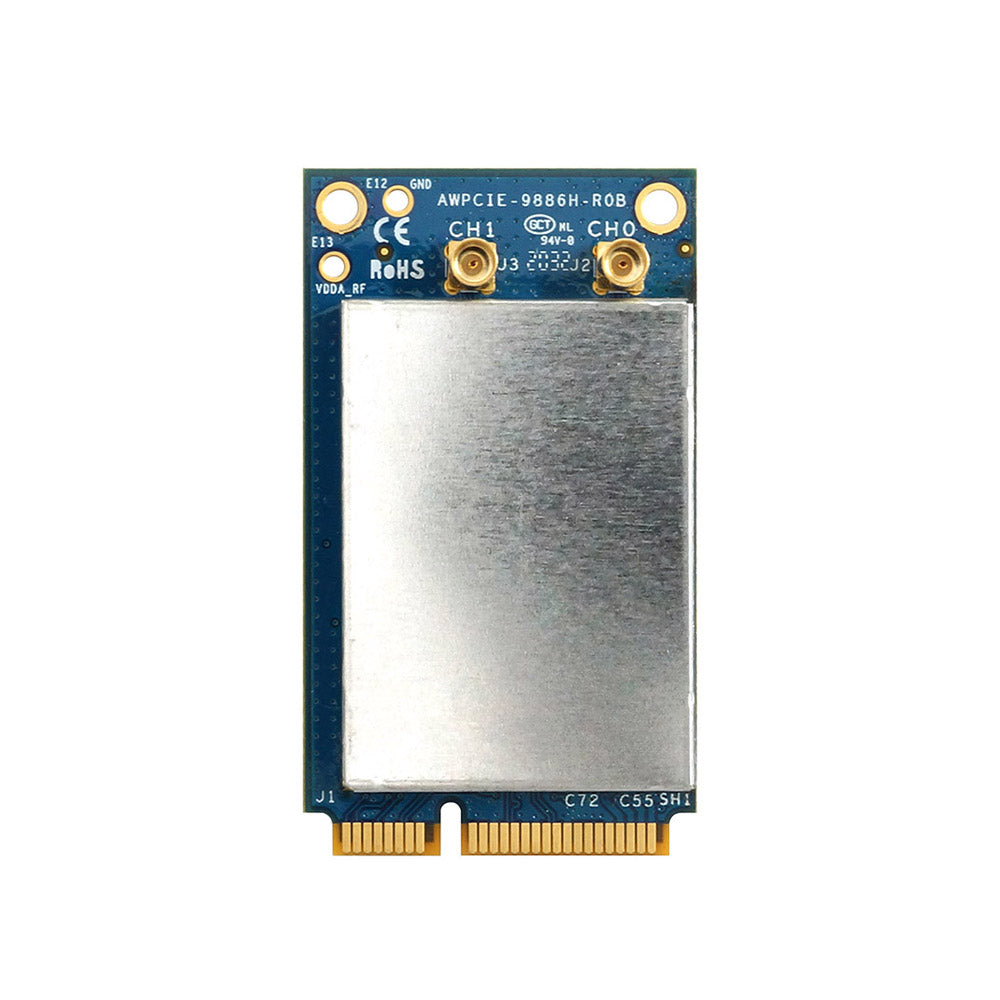

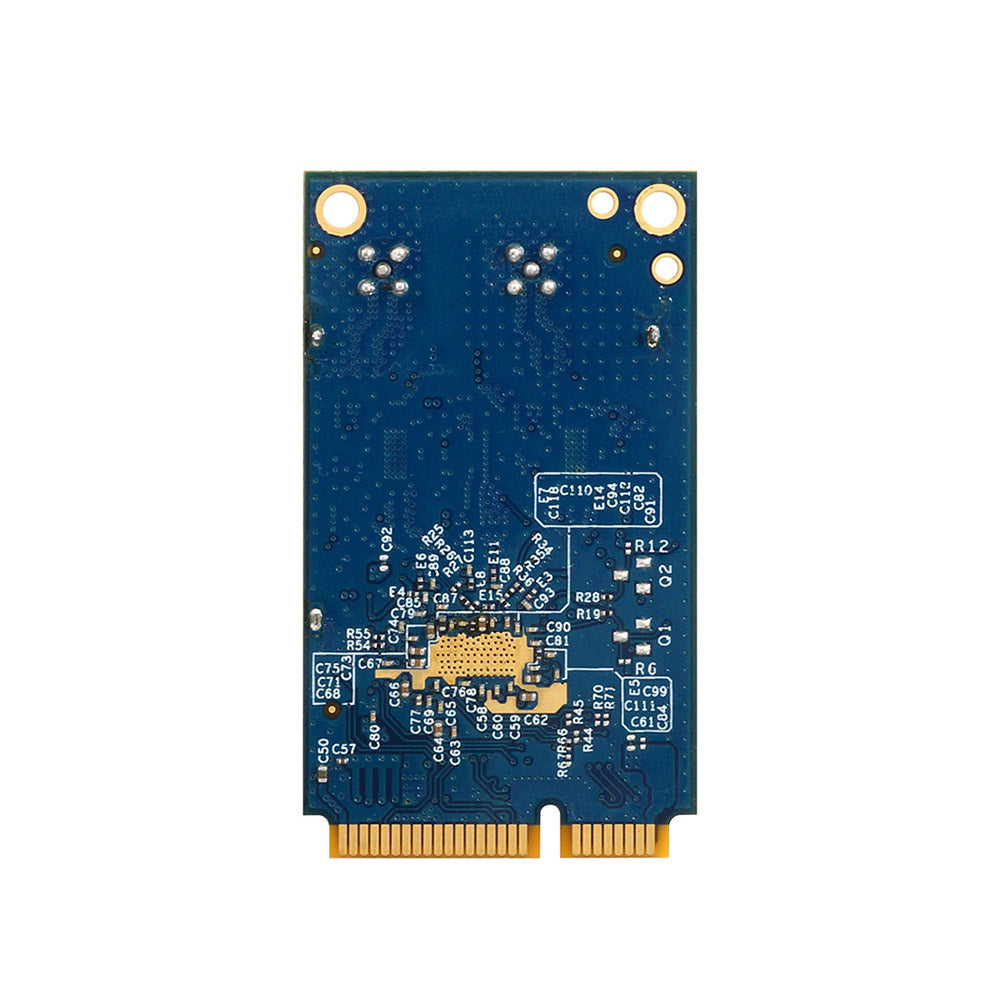

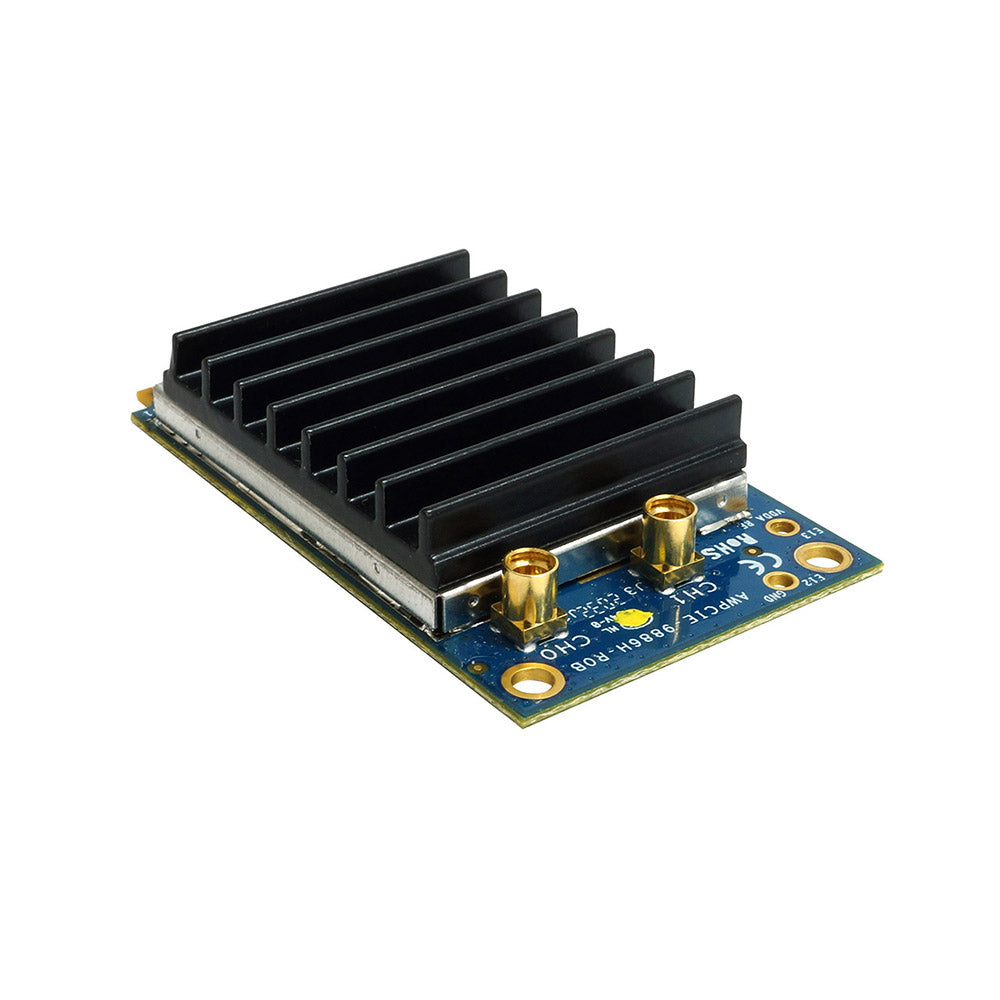

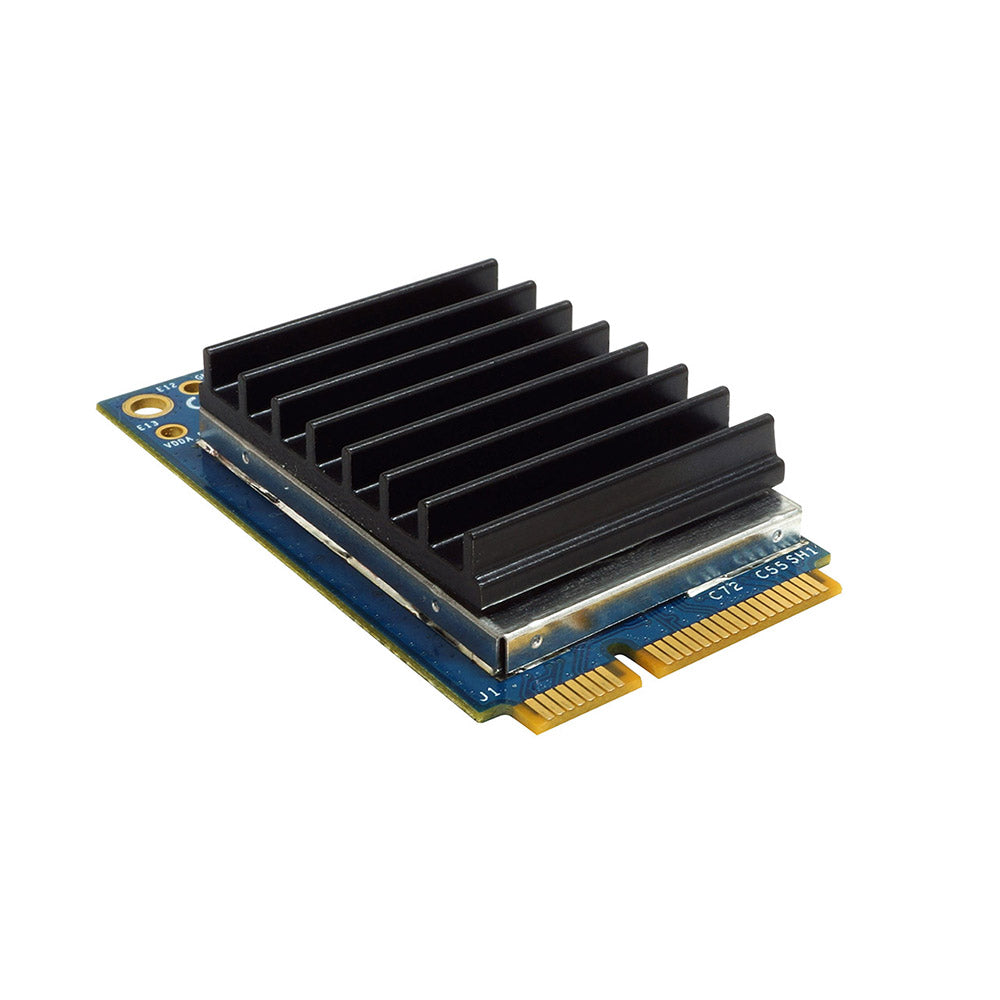

AWMC9886PH is a single-band, high-power 802.11ac module with MMCX antenna connectors
AWMC9886PH is fully compliant with IEEE 802.11ac and 802.11a/n standards, supports 2T2R antenna configuration, MU-MIMO with 2 spatial streams and up to 23 dBm (200 mW) transmit power per chain.
The QCA9886 is a highly integrated WLAN SOC implementing half-duplex OFDM supporting up to 867 Mbps for 802.11ac 80 MHz channel width operation in 5 GHz band.
Official support in open source driver for Linux, support in OpenWrt system and adoption of MMCX antenna connectors will help kick off your next reliable WiFi project launch.
Designed for ALFA Network N2Q
General specifications
| Parameter | Value |
|---|---|
| Chipset | Qualcomm™ QCA9886 |
| IEEE 802.11 standards | a/n/ac |
| Frequency | 5 GHz |
| Data rate | 802.11ac: 867 Mbps 802.11n: 300 Mbps |
| TX power | 23 dBm (per chain) |
| Antenna connectors | 2× MMCX |
| Interface | PCIe x1 |
| Operating systems | Linux |
| Form factor | full-size mini PCIe |
| Operating humidity | 10 % ~ 90 % RH, non-condensing |
| Operating temperature | TBA |

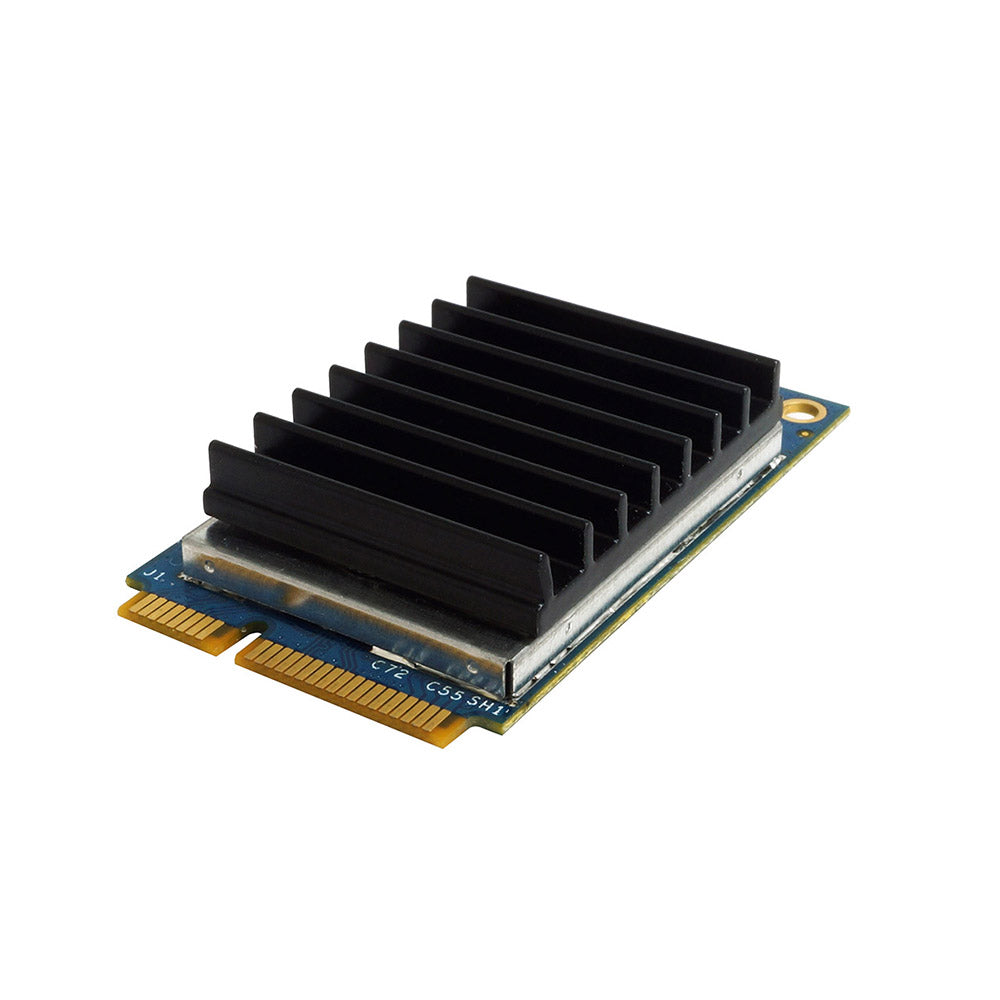

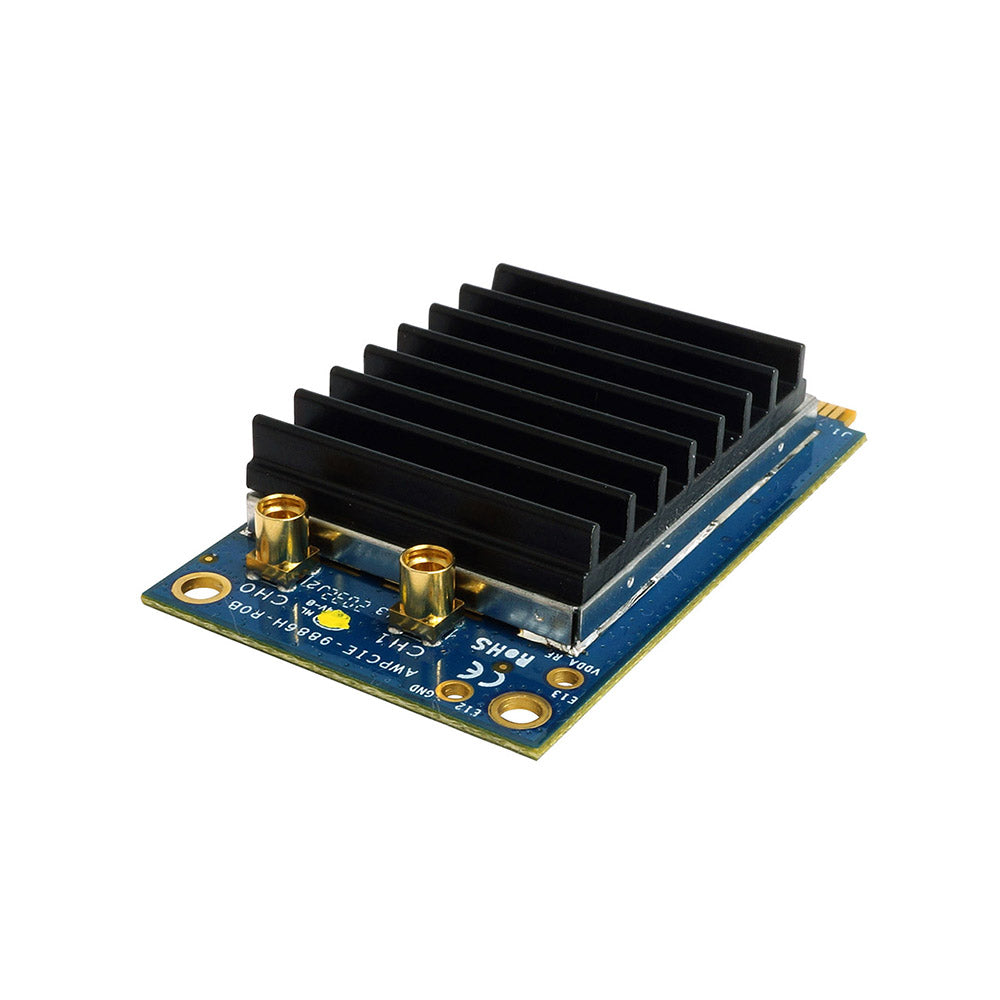

| Dimensions | 30 × 51 × 9.2 mm (with heatsink) |
