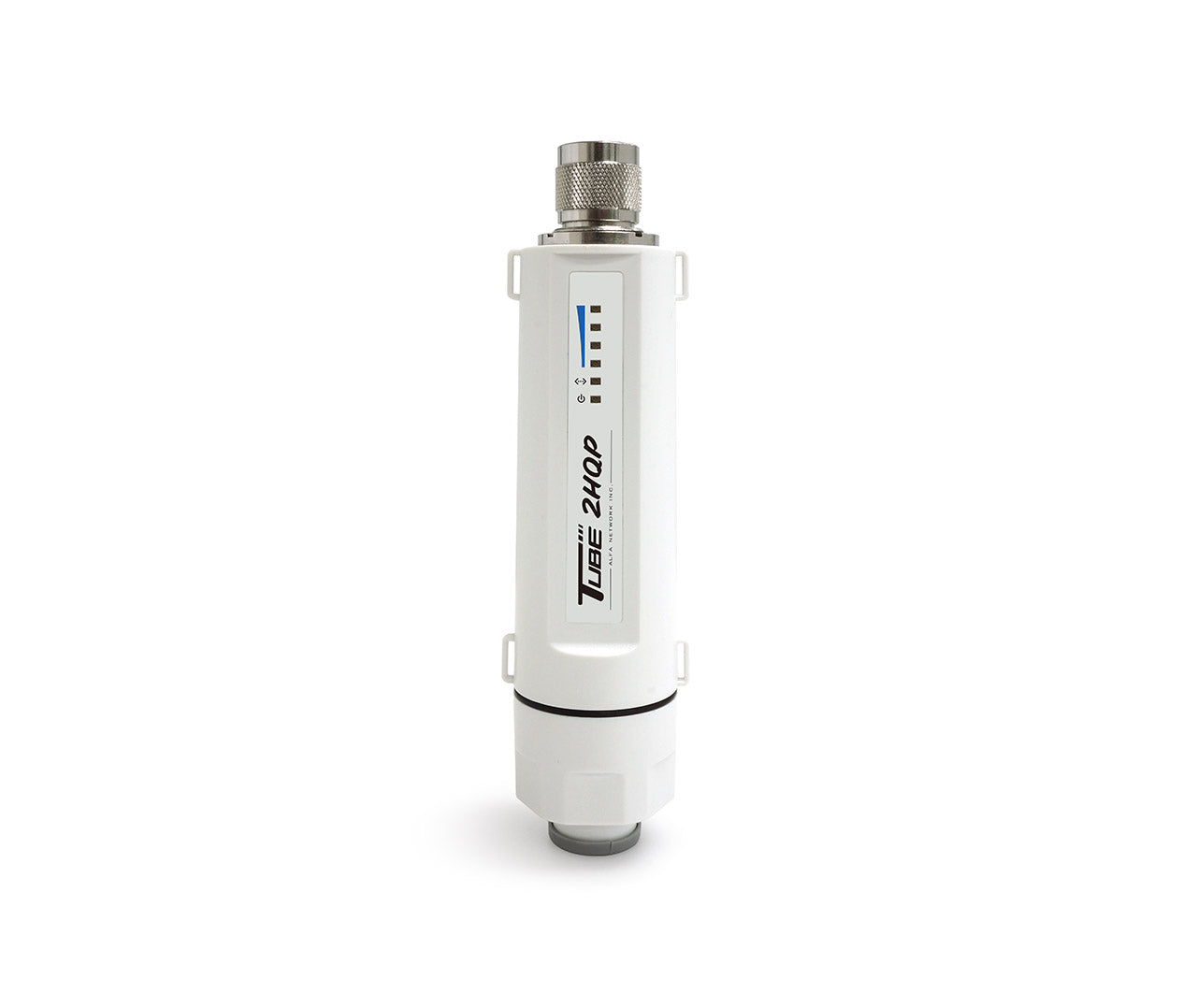

Tube-2HQP is a high-power 802.11n 2.4 GHz AP/CPE board, equipped with Fast Ethernet
Tube-2HQP offers an integrated 802.11b/g/n WiFi radio (2.4 GHz, up to 27 dBm TX power and 150 Mbps throughput) with type-N (male) antenna connector and Fast Ethernet with support for standard IEEE 802.3at/af PoE input.
Official OpenWrt support, web-based recovery and system serial console access make development extremely easy.
Applications
General specifications
| Parameter | Value |
|---|---|
| SOC | Qualcomm™ QCA9531 with 650 MHz single-core MIPS 24Kc CPU |
| RAM | 128 MB of DDR2 |
| Flash | 16 MB of SPI NOR flash |
| WiFi | 802.11b/g/n 1T1R 2.4 GHz 1x Type-N (male) antenna connector |
| Ethernet | 1x Fast Ethernet with ESD protection |
| Pin headers | 1x 4-pin system serial console (2.00 mm pitch) |
| Button | 1x push-button (reset) |
| LED | 1x power/PoE input (blue) 1x LAN (blue) 4x signal level (red, orange, green, green) |
| Other | External hardware watchdog |
| Software | U-Boot with web-based firmware recovery support Officially supported in OpenWrt (Linux Kernel 5.10+) |
| Power supply | 802.3at/af standard module |
| Dimensions | 176 x 38 |
| Weight | 125 g |
| Operating humidity | 5 % ~ 90 % (Non-condensing) |
| Operating temperature | -30 °C ~ 70 °C |
