WISP-NSR

WISP-NSR

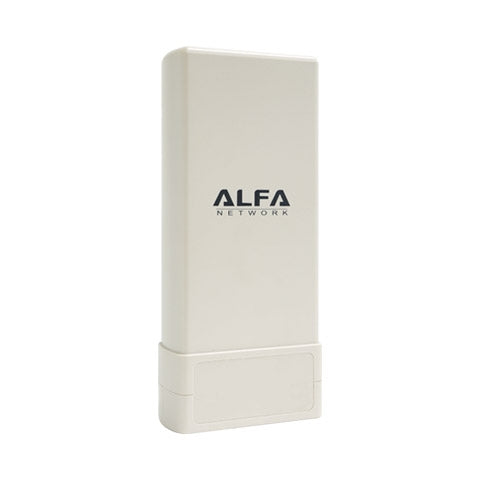

  • WISP-NSR is a Low-Cost 802.11n outdoor AP/CPE operating in 2.4GHz band that is also compliant with the standard IEEE 802.11b/g.
  • It has a built-in 9dBi High-Gain Panel Antenna. Allowing you to apply in a CPE and PTP environment, without the need of selecting any external antenna..
  • WISP-NSR support passive PoE allowing a quick and simple installation without any environmental limitation

Application:

  • High Speed Data Rates Providing faster data rates of up to 150Mbps and compatible with legacy 802.11b/g equipment
  • Advanced Robust Security Firewall with SPI to protect the internal host from hacker attacks. Wireless security is comprehensive and included WPA/WPA2 PSK
  • Feature Rich WDS, Dual SSIDs, Static Routing, QoS and more

Standard IEEE 802.11b/g/n Operation Mode Router
Bridge
Wireless ISP
Antenna 9dBi Panel Antenna Frequency Band 2.400GHz ~ 2.484GHz
Security 64/128bit WEP
WPA(TKIP with IEEE802.1x)
WPA2(AES with IEEE802.1x)
WPA Mixed
Data Rate 802.11n ( 40MHz ):
up to 150Mbps
802.11n ( 20MHz ):
up to 72Mbps
802.11g:
54,48,36,24,18,12,9,6Mbps
802.11b:
11,5.5,2,1Mbps
Sensitivity 802.11b : -90
802.11g : -75
802.11n : -71
Interface WAN x1
LAN x1
TX Power 20dBm Power Source 12V Passive PoE
Operation
Temperature
-20°C ~ 60°C Storage Humidity 10% ~ 90% (Non-condensing)
Dimension 93 x 70 x 26 mm Weight 74g
