AWMC7615P

AWMC7615P

dual-band, dual-concurrent (DBDC) mini PCIe WiFi5 Wave2 (802.11ac) card

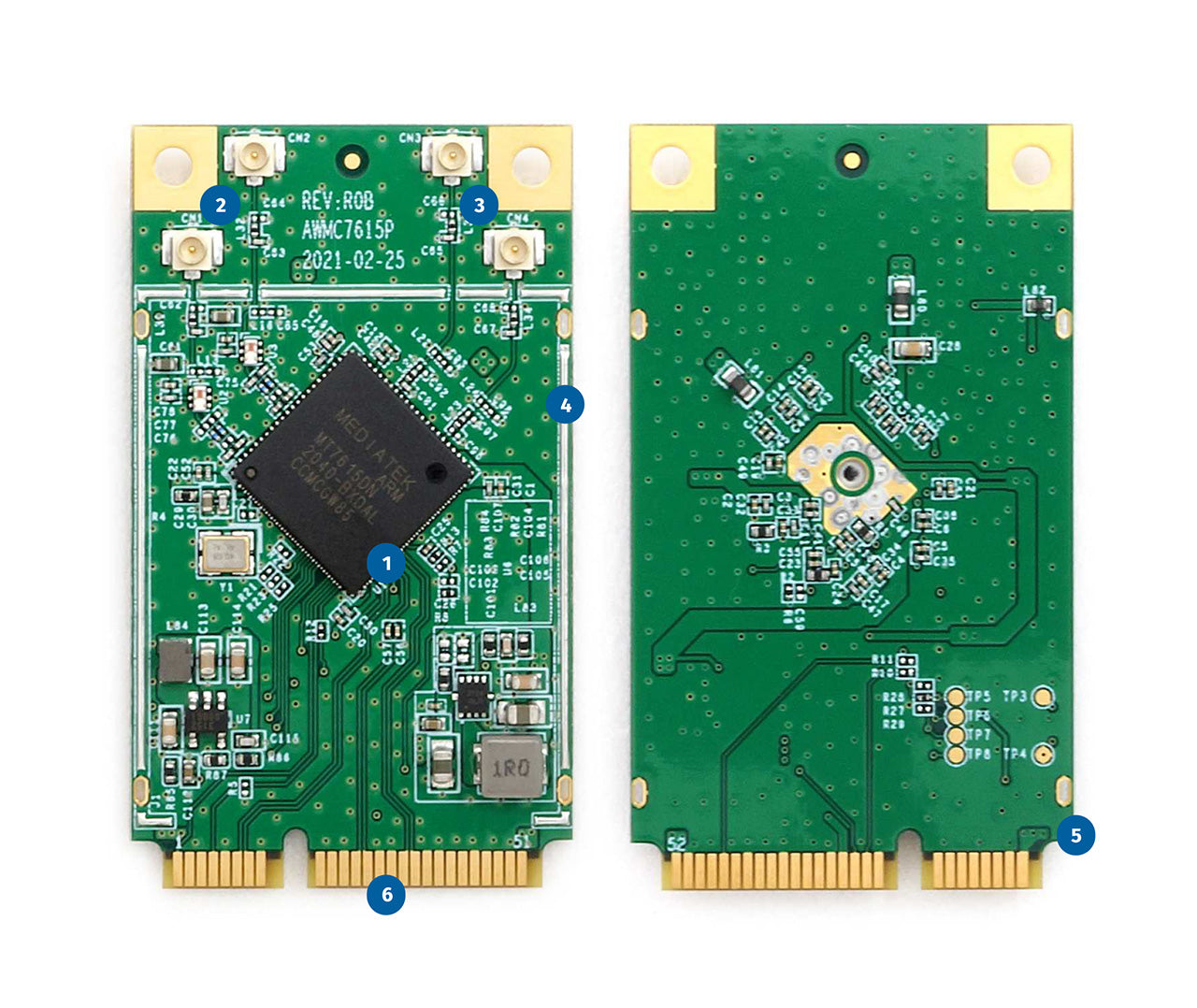

  1. MediaTek™ MT7615D broadband radio
  2. Embedded DC/DC step-up converter (operation on 3.3 V only power supply)
  3. High-power external PA for 2.4 and 5 GHz
  4. 2× IPEX/U.FL for 2.4 GHz
    2× IPEX/U.FL for 5 GHz 4
  5. Full body metal shielding design
  6. PCI Express 2.0 interface

AWMC7615P is a dual-band, dualconcurrent (DBDC) WiFi5 module with open source driver support

AWMC7615P is fully compliant with IEEE 802.11ac and IEEE 802.11a/b/g/n standards and supports simultaneous operation in 2.4 GHz and 5 GHz bands (DBDC) with dual 2T2R antenna configuration.

The ARM™ based MediaTek™ MT7615D radio chipset offers full host CPU offload, allowing use of the card even in resource limited embedded systems. Optimized RF architecture and baseband algorithms provide superb performance and low power consumption.

Integrated DC/DC step-up converter makes operation possible in a standard mini PCIe slot without support for custom 5 V power supply.

Official support in open source driver for Linux will help kick starting your next WiFi project.

Parameter Value
Chipset MediaTek™ MT7615D
IEEE 802.11 standards a/b/g/n/ac
Frequency 2.4 GHz
5 GHz
Data rate 802.11ac: 867 Mbps
802.11n: 300 Mbps
TX power 2.4 GHz: 20 dBm (per chain)
5 GHz: 20 dBm (per chain)
Antenna connectors 4× IPEX/U.FL
Interface PCIe x1
Operating systems Linux
Form factor oversized mini PCIe
Operating humidity 10 % ~ 90 % RH, non-condensing
Operating temperature TBA
Dimensions 60 × 51 × 6 mm
