5 GHz high-power 802.11a/n/ac mini PCIe card based on QCA9886

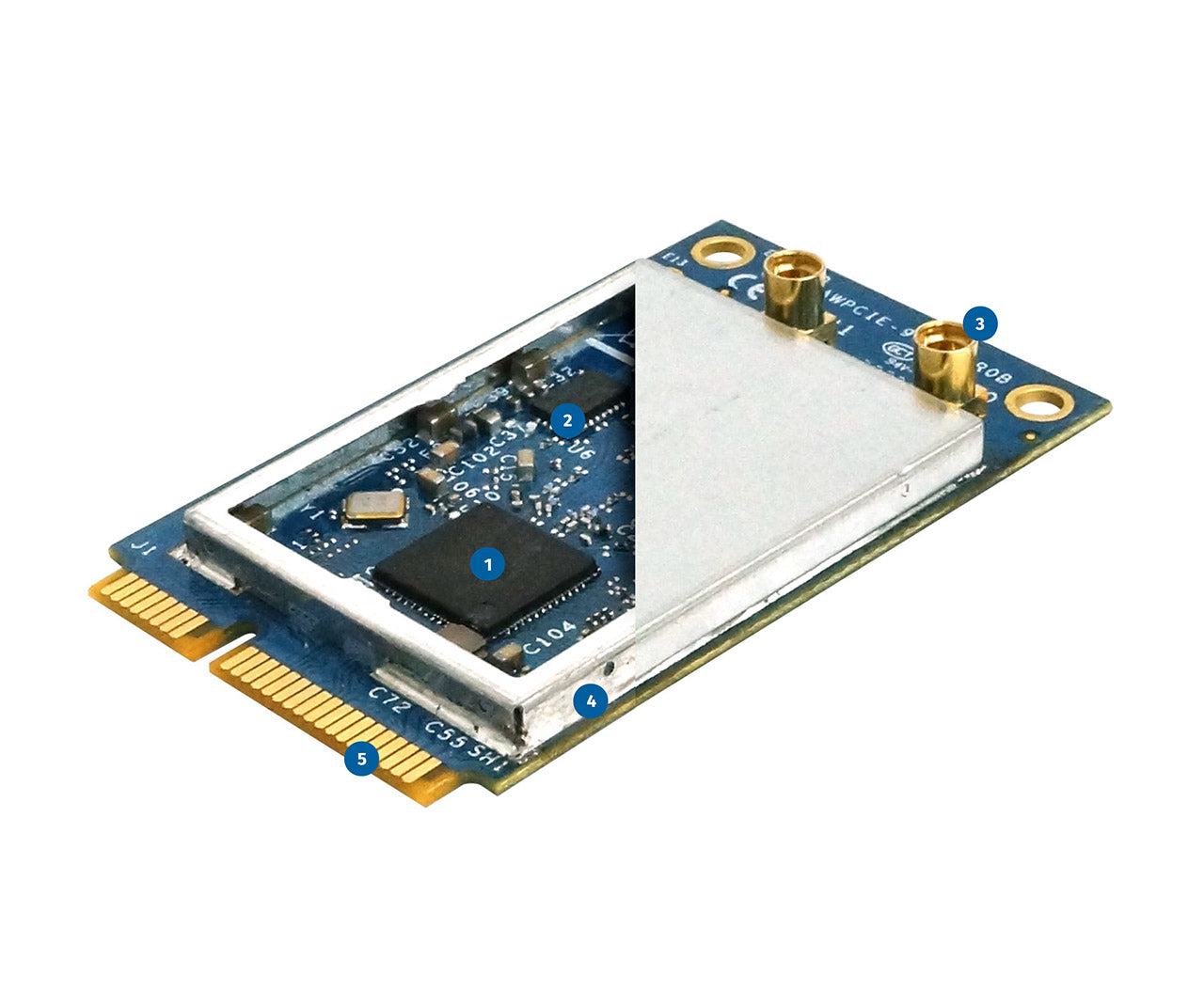

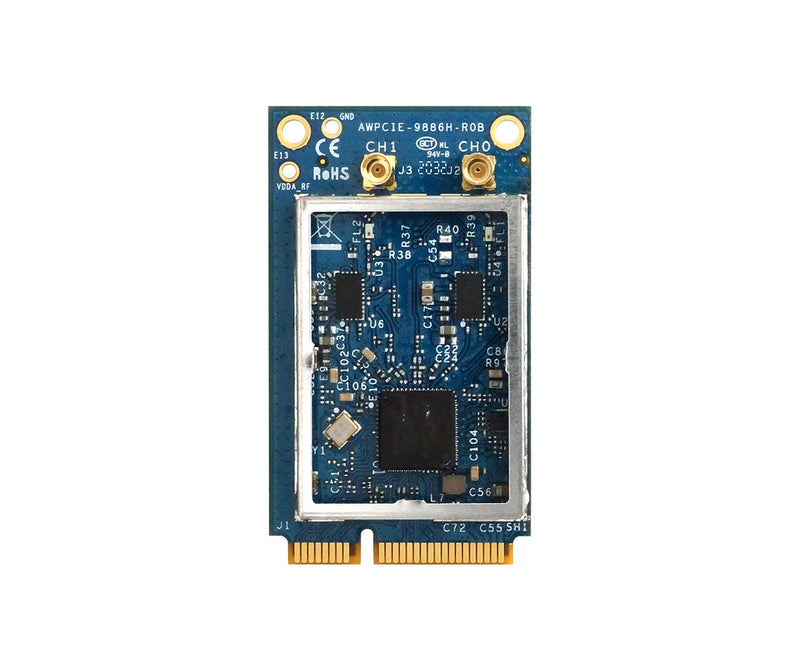

  1. (1) Qualcomm™ QCA9886 1 broadband radio
  2. (2) Skyworks™ SKY85728-11 FEM with high-power PA

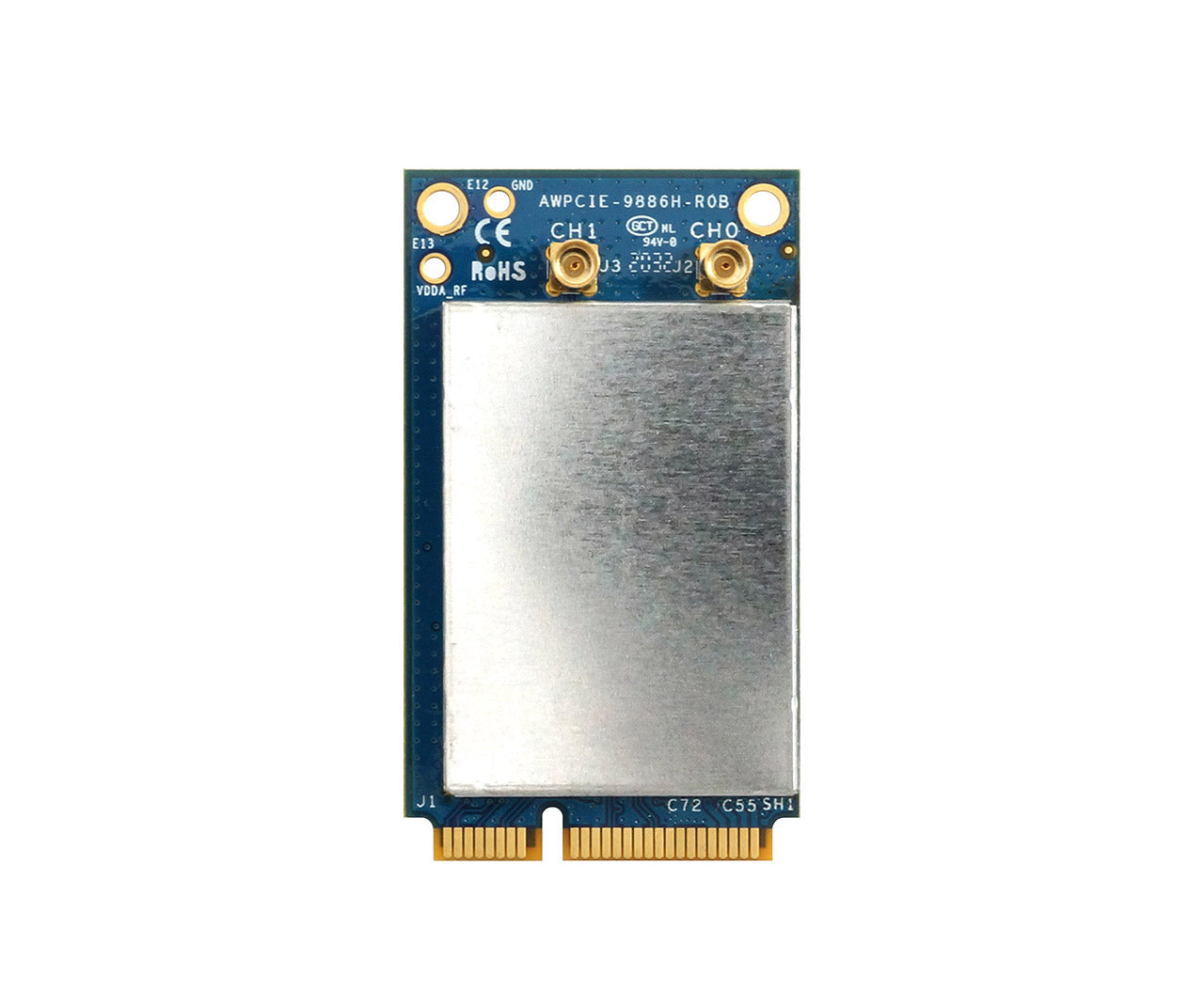

  3. (3) 2× MMCX antenna connectors

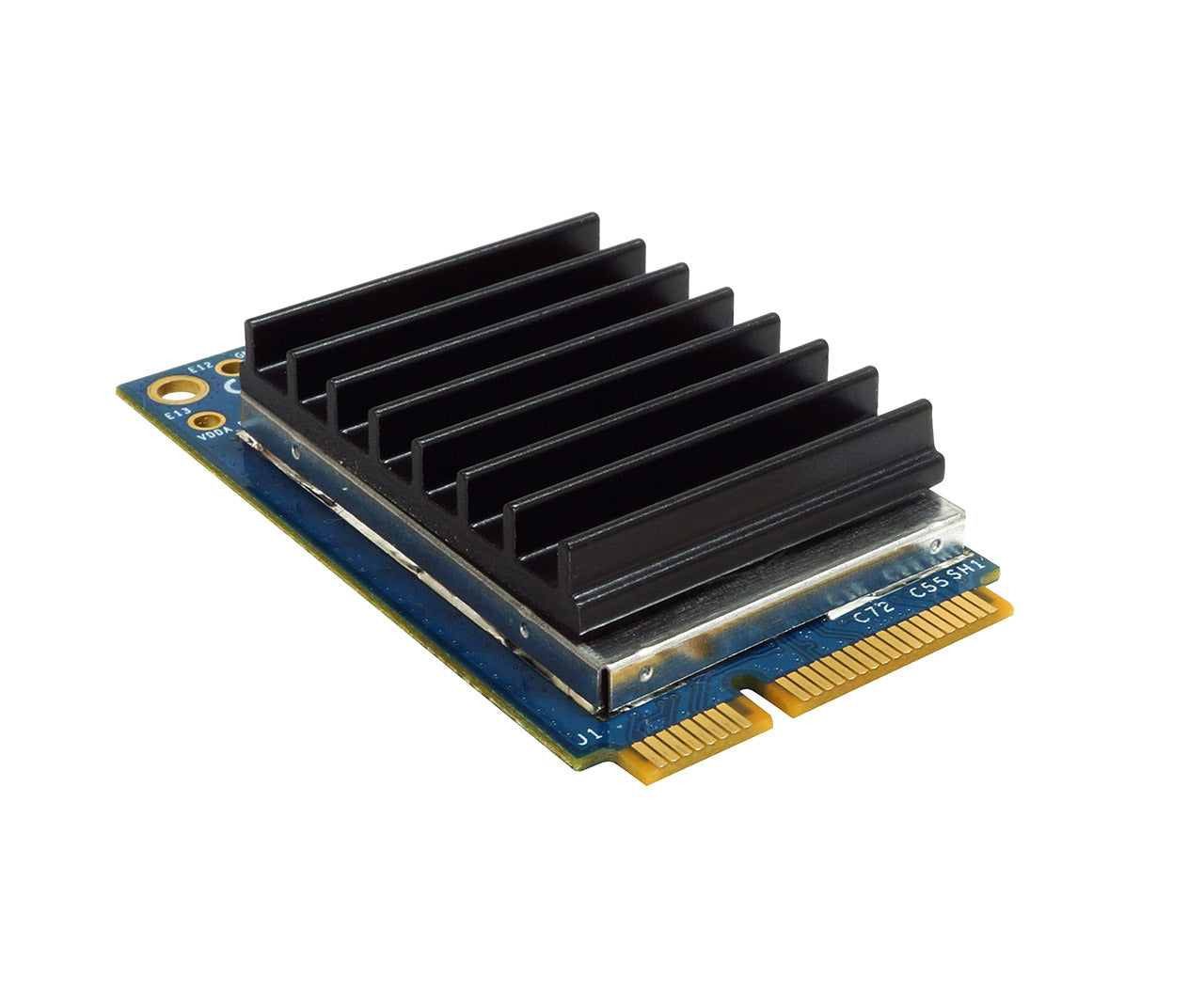

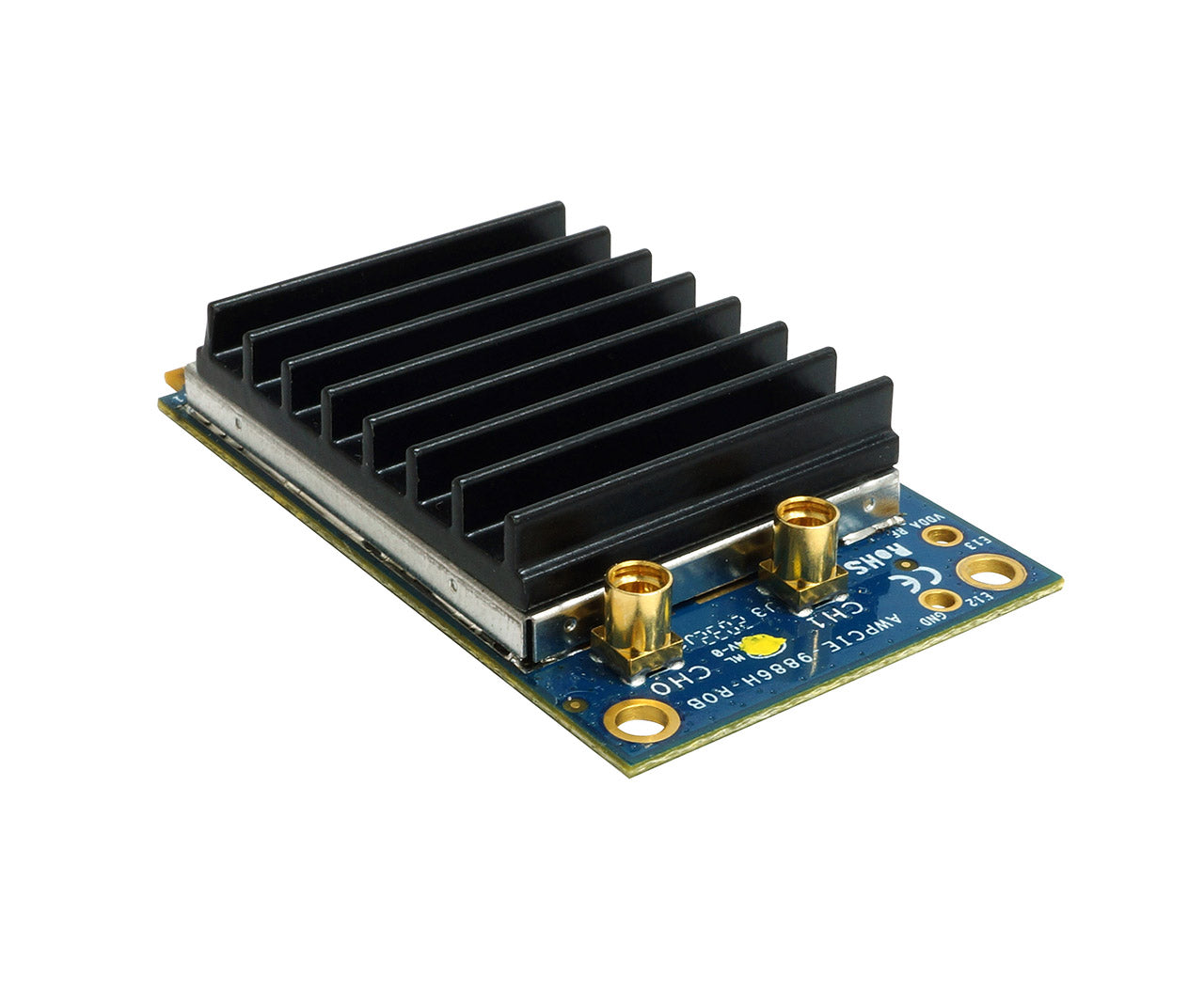

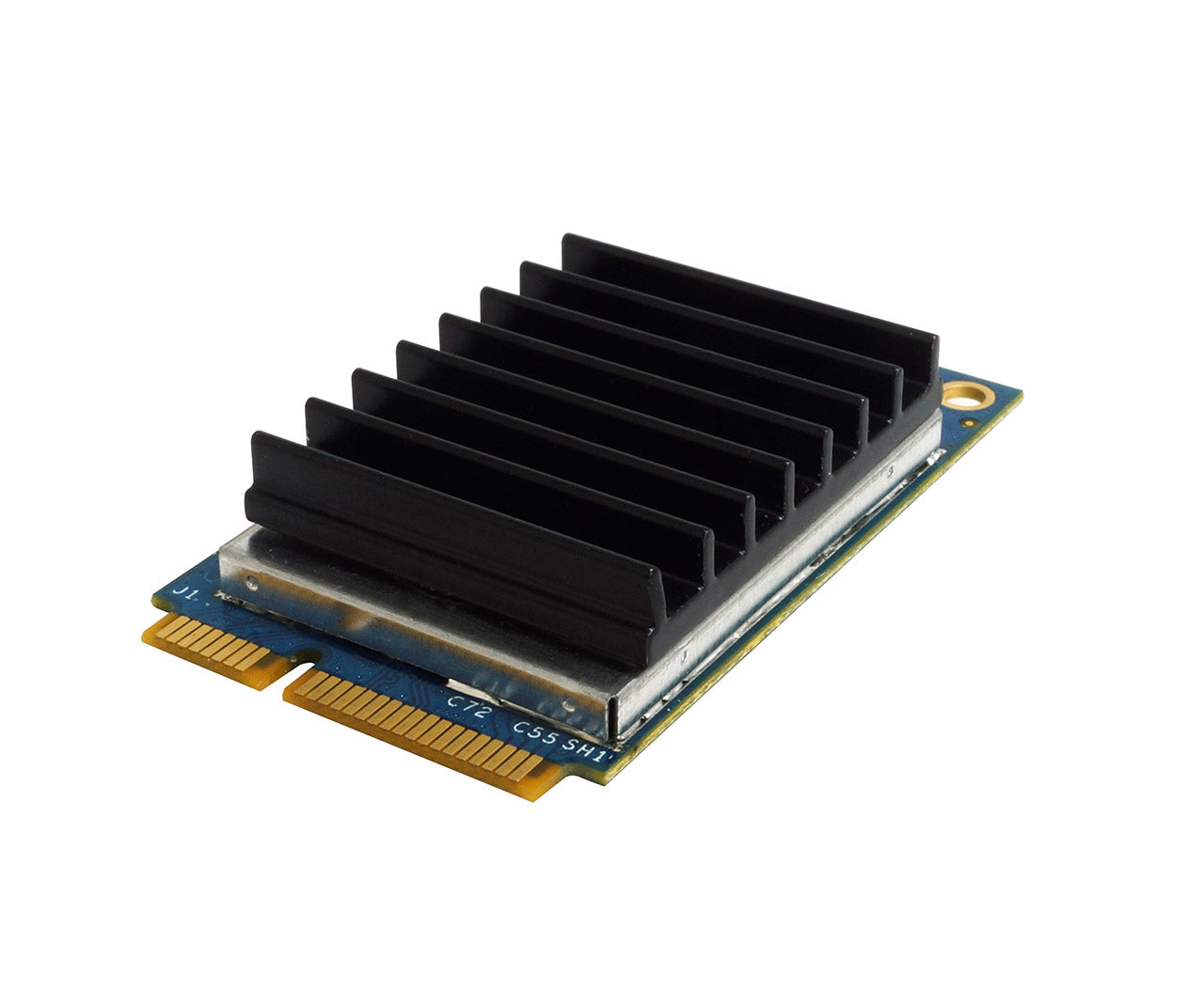

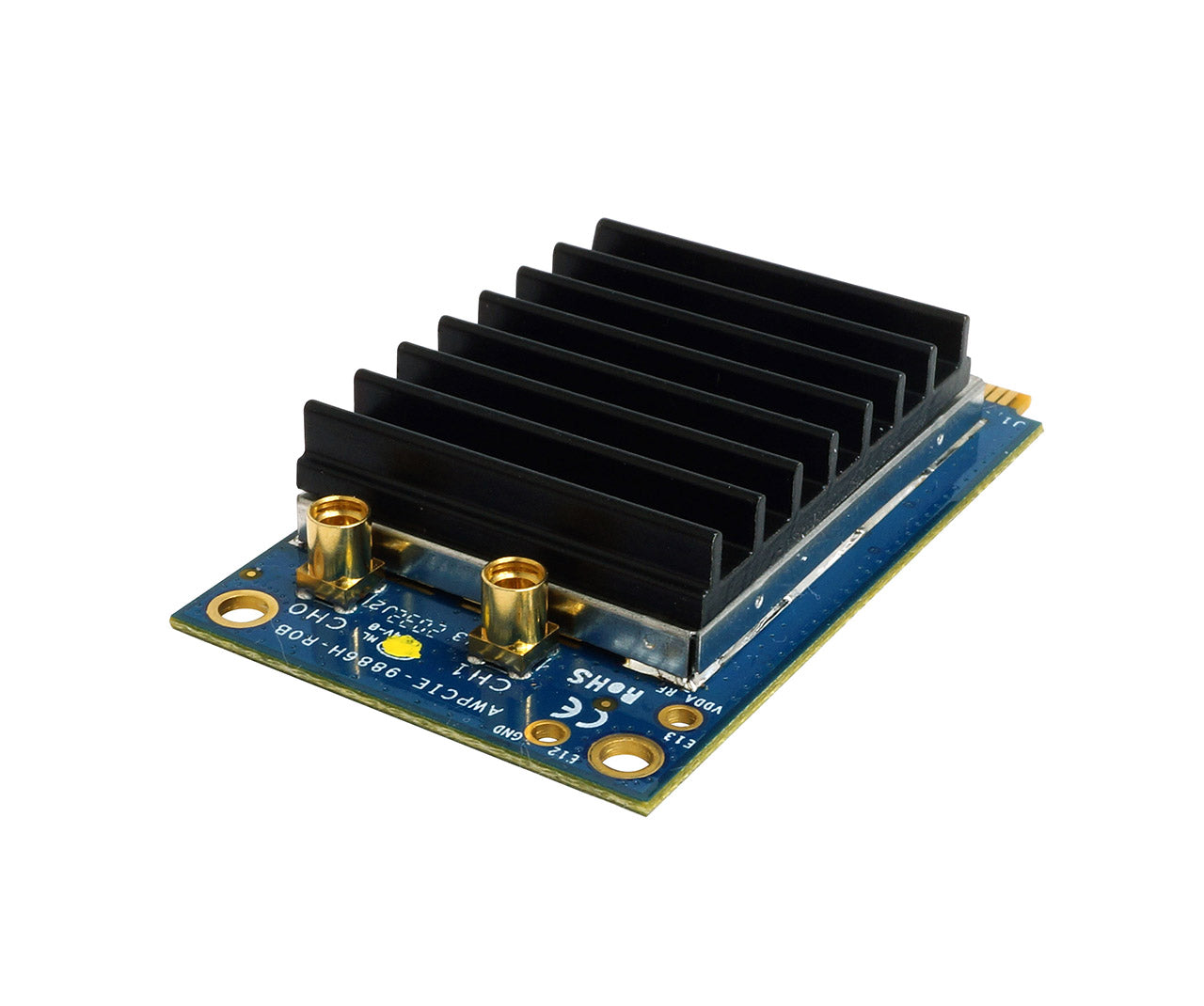

  4. (4) Full body metal shielding design with heatsink

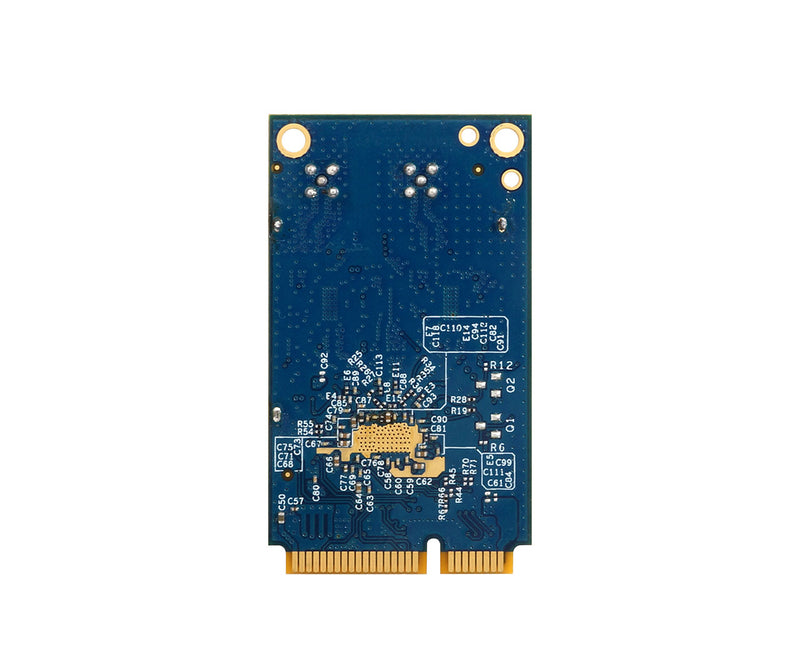

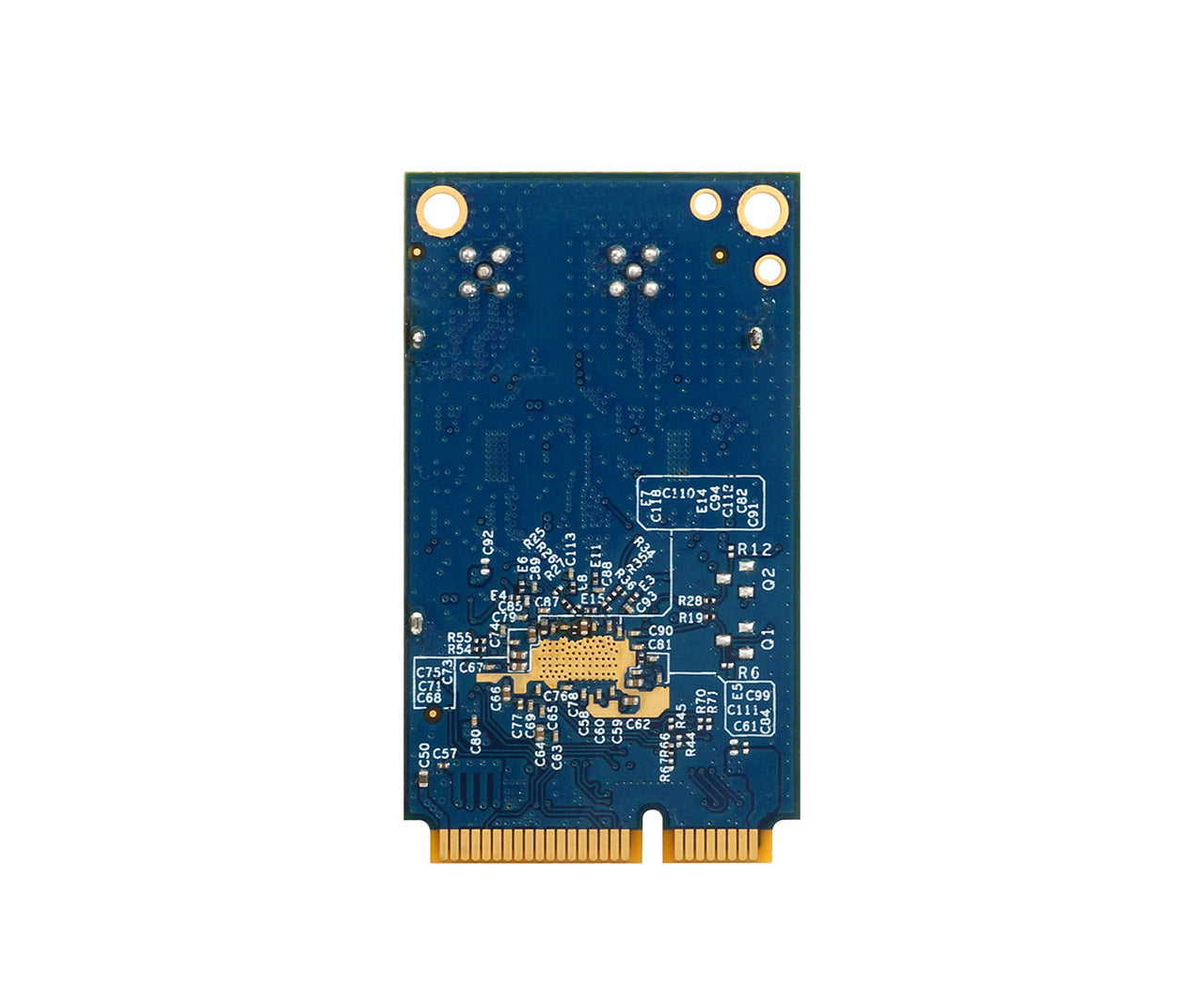

  5. (5) PCI Express 1.1 interface

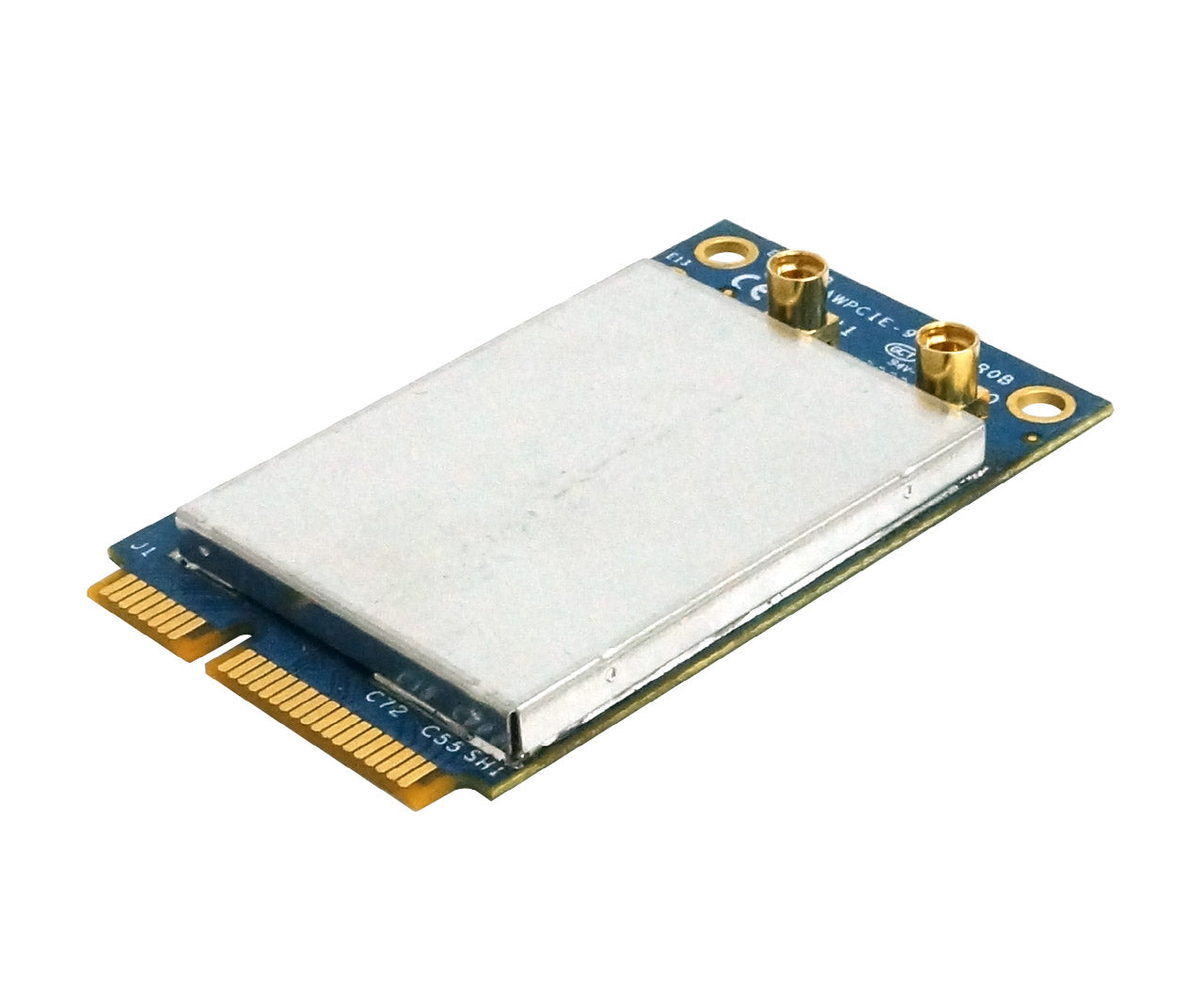

AWMC9886PH is a single-band, high-power 802.11ac module with MMCX antenna connectors

AWMC9886PH is fully compliant with IEEE 802.11ac and 802.11a/n standards, supports 2T2R antenna configuration, MU-MIMO with 2 spatial streams and up to 23 dBm (200 mW) transmit power per chain.

The QCA9886 is a highly integrated WLAN SOC implementing half-duplex OFDM supporting up to 867 Mbps for 802.11ac 80 MHz channel width operation in 5 GHz band.

Official support in open source driver for Linux, support in OpenWrt system and adoption of MMCX antenna connectors will help kick off your next reliable WiFi project launch.

Designed for ALFA Network N2Q image1




General specifications

Parameter Value
Chipset Qualcomm™ QCA9886
IEEE 802.11 standards a/n/ac
Frequency 5 GHz
Data rate 802.11ac: 867 Mbps
802.11n: 300 Mbps
TX power 23 dBm (per chain)
Antenna connectors 2× MMCX
Interface PCIe x1
Operating systems Linux
Form factor full-size mini PCIe
Operating humidity 10 % ~ 90 % RH, non-condensing
Operating temperature TBA
Dimensions 30 × 51 × 9.2 mm (with heatsink)
