AGA-2225-24T

AGA-2225-24T

AGA-2225-24T

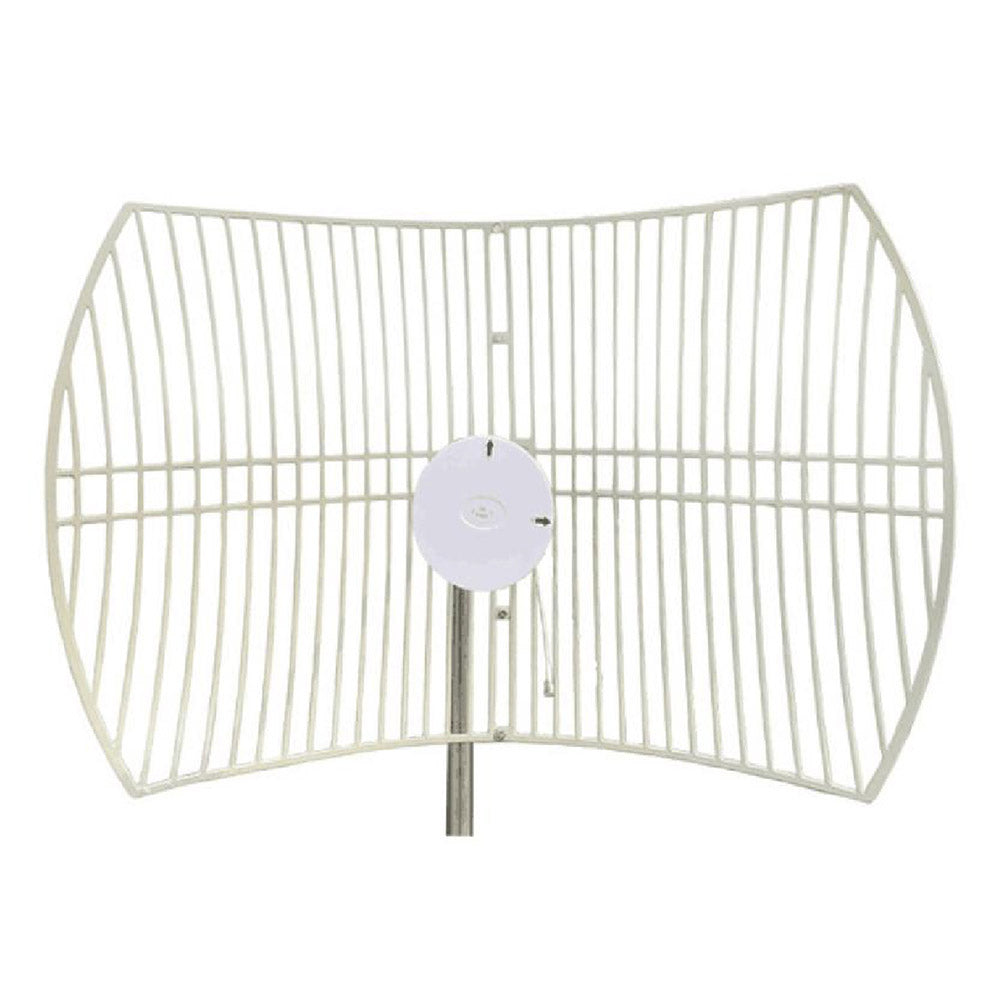

Grid Antenna
2.2 GHz ~ 2.5 GHz 24dBi

Key features

2200 ~ 2500 MHz 24 dBi
Aluminum alloy
RF cable length 30 cm
N female Connector

Specifications

Frequency	2200 MHz ~ 2500 MHz
Gain	2200 ~ 2300 MHz: 22 dBi 2400 ~ 2500 MHz: 24 dBi
V.S.W.R	≦ 2.0
F/B Ratio	≥ 25 dB
Radiation	Direction
Polarization	Vertical
Horizontal Beamwidth	12°
Vertical Beamwidth	10°
Impedance	50 ohm
Connector	N Female
Cable Type	RG142
Cable Length	30 cm (1 feet)
Maximum Input Power	100 W
Antenna Material	Aluminum Alloy
Mount type	Pole Mount
Mounting Pole Size	Ø 50 ~ Ø 70 mm
Lightning Protection	DC Grounded
Antenna Dimension	600 x 900 mm
Weight	2 kg
Operating Temperature	-40° C ~ 70° C
Rated Wind Velocity	60 m/s

V.S.W.R

Radiation Pattern
