APOE03

APOE03

APOE03

Support Fast Ethernet Passive PoE-enable device (PIN 1/2/3/6 Data. PIM4/5/7/8 Power)
Provide both data and electrical power to Passive PoE-enabled device
Support Wide Range input/output DC Power (5V – 57V at Max.48W)

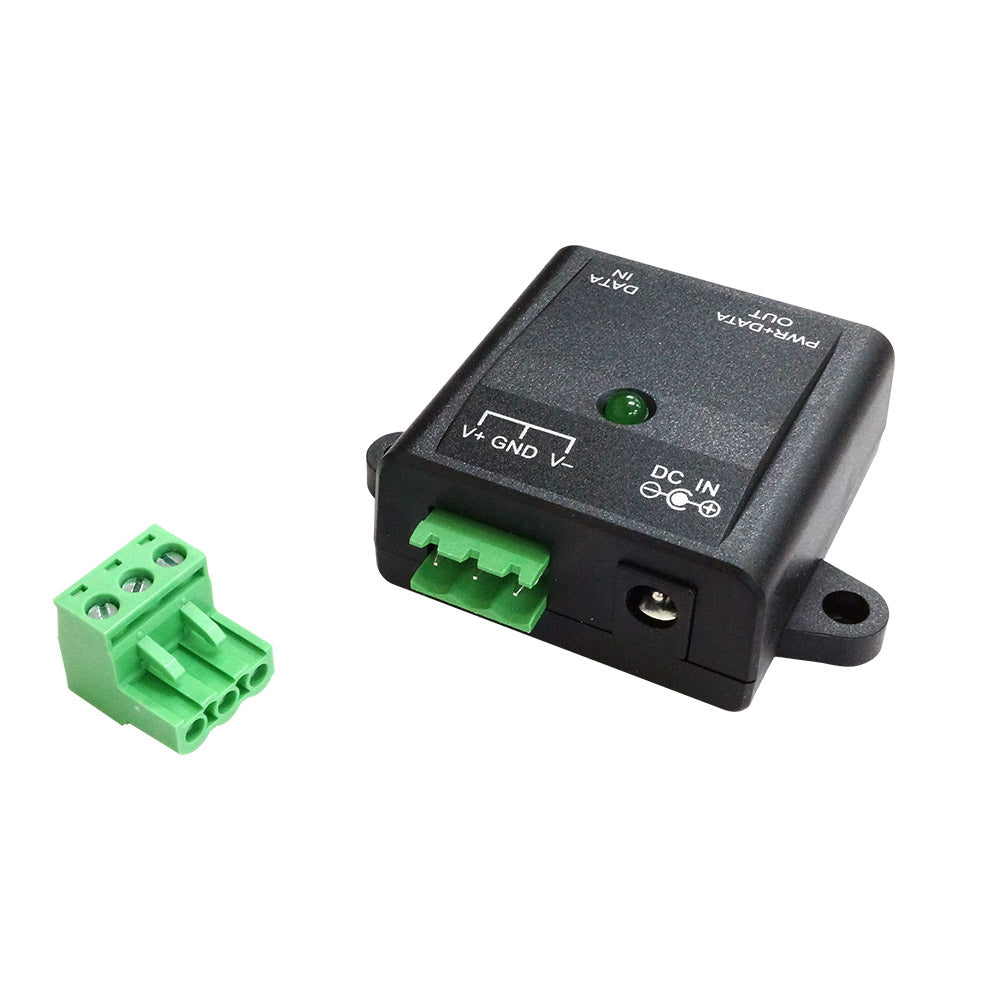

Dual DC Power Input – 3-pin screw Terminal Block and Power Jack
Wall mount ability

Specifications

ower	PIN 4/5, 7/8
Data	PIN 1/2 , 3/6
Data In	Connects PC/HUB/Switch
Ethernet Data Rate	10/100Tx Mbps
Ethernet Cable	Cat.5 / Cat.5e / Cat.6
Ethernet Cable Connector	RJ45
Support Input Voltage	5 V – 57 V (Max.48 W)
Support Output Voltage	5 V – 57 V (Max.48 W)
Built-In LED Indicators	Power
Operating Temperature	-35° C~ 60° C (-31° F~ 140° F)
Storage Temperature	-45° C~ 70° C (-49° F~ 158° F)
Operating Humidity	10%~ 90% Non-Condensing
Storage Humidity	5% to 90%
Non-Condensing Power Supply	110 – 220V AC Power ; 5 V – 57 V DC input
Unit Dimensions	67 x 67 x 24 mm (W x L x H)
Unit Weight	40 g
