APOE03GP

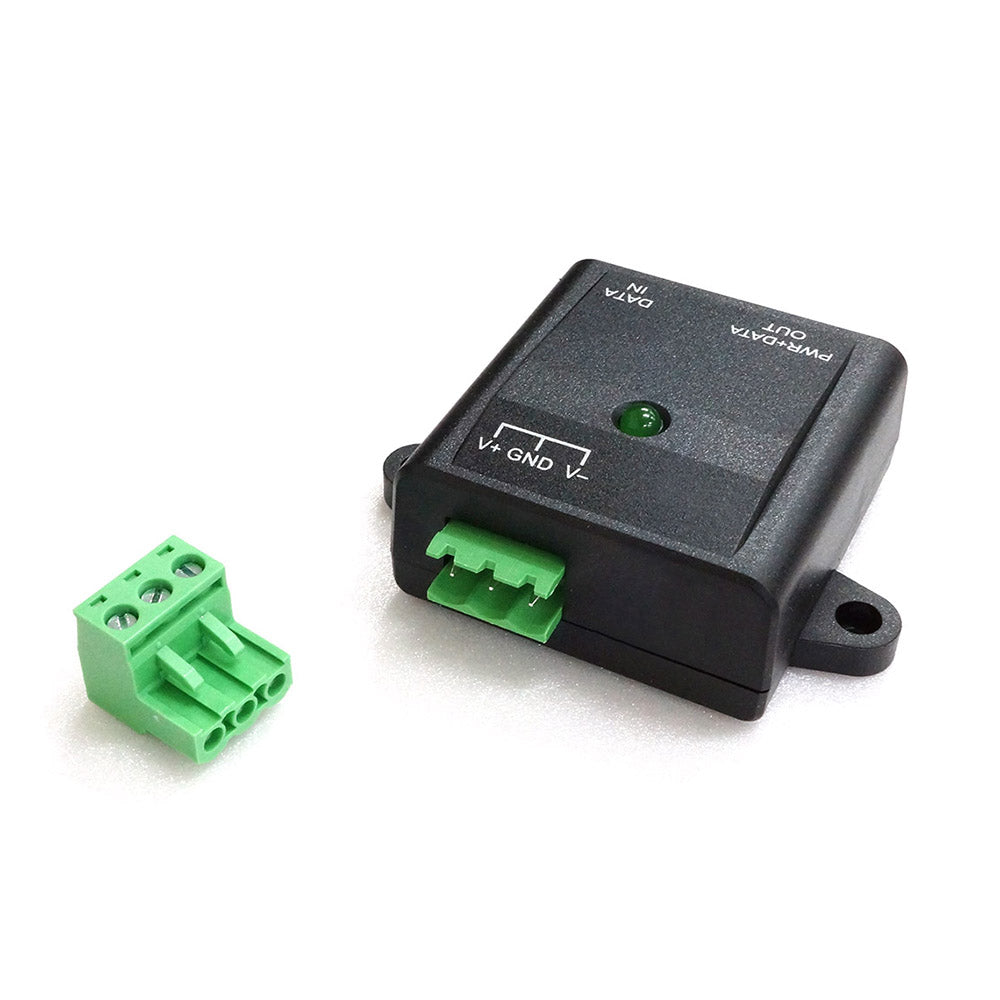

APOE03GP is single-port Gigabit (10/100/1000 Base-T) passive PoE midspan injector
designed to provide stable DC power to PoE enabled network devices. It reliably delivers power through Mode B (pins 4/5 and 7/8 of the Ethernet cable). The APOE03GP effectively meets the powering requirements of various PoE network equipment, ideal for enterprise and commercial applications.

Key features

1. DC input terminal block

2. RJ45 data input

3. RJ45 data + power output

4. LED

Specifications

Input Connector	Terminal Block
Input Voltage	5 Vdc to 75 Vdc
Output Current	500mA max.
Date Input	RJ45 (10/100/1000 Mbps)
Date + Power Output	Output RJ45 (10/100/1000 Mbps)
PoE Output Distance	100 m
Dimensions	67 x 67 x 24 mm
Weight	40 g
Operating Temperature	0°C ~ 40°C
Operating Humidity	0% ~ 95% non-condensing



RJ45 PinOut
	Input	Output
1	TXRX A+	TXRX A+
2	TXRX A-	TXRX A-
3	TXRX B+	TXRX B+
4	TXRX C+	TXRX C+ DC+
5	TXRX C-	TXRX C- DC+
6	TXRX B-	TXRX B-
7	TXRX D+	TXRX D+ DC-
8	TXRX D-	TXRX D- DCThe



Dimension Drawing























Scenario
