AX36RQ-X55
AX36RQ-X55
Advanced home gateway, with 5G modem, WiFi 6, 2.5 Gbps Ethernet and phone support

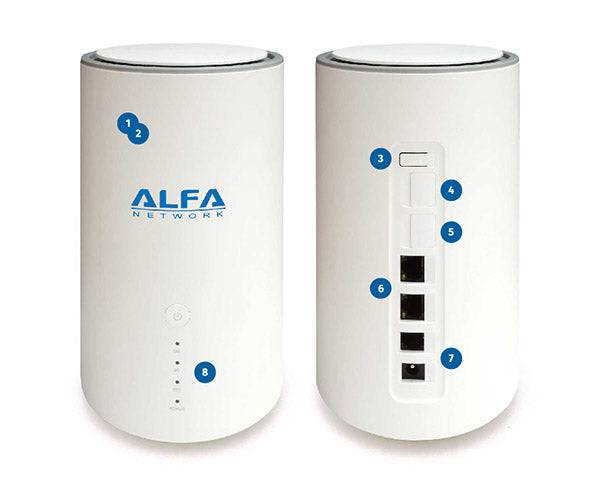

- (1) Qualcomm™ IPQ8072A with 1 GB of DDR3L RAM (2.2 GHz quad-core ARM™ Cortex-A53)
- (2) Qualcomm™ Snapdragon™ X55 (SDX55) modem (multi-band 5G NR/LTE-FDD/LTE-TDD/HSPA+)

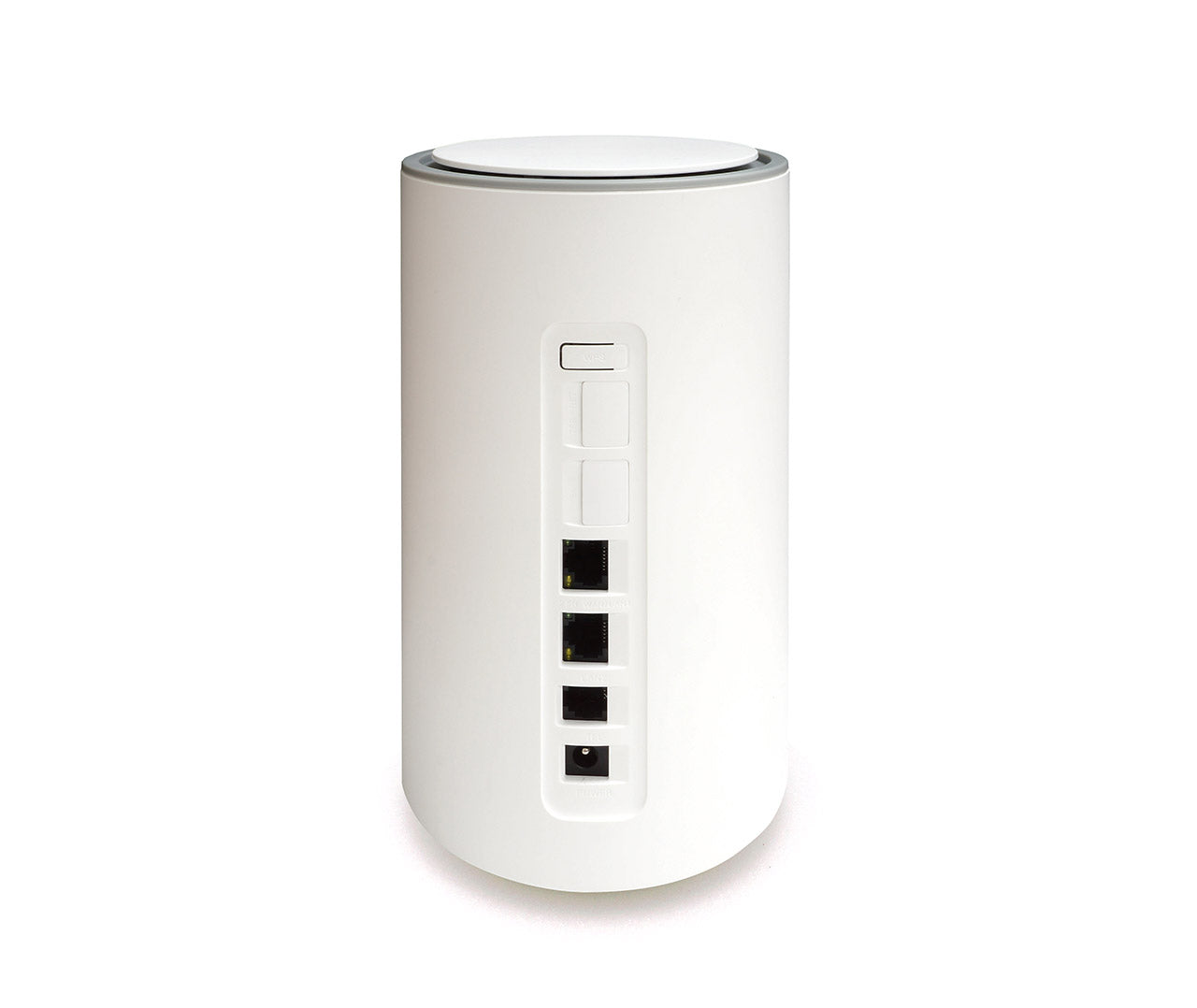

- (3) WiFi/WPS button
- (4) Reset button, TS9 connectors (under cover)
- (5) Nano SIM slot (push-push, under cover)
- (6) 2.5 Gbps and 1 Gbps Ethernet
- (7) Optional RJ11 (phone) and DC jack
- (8) 4x LED

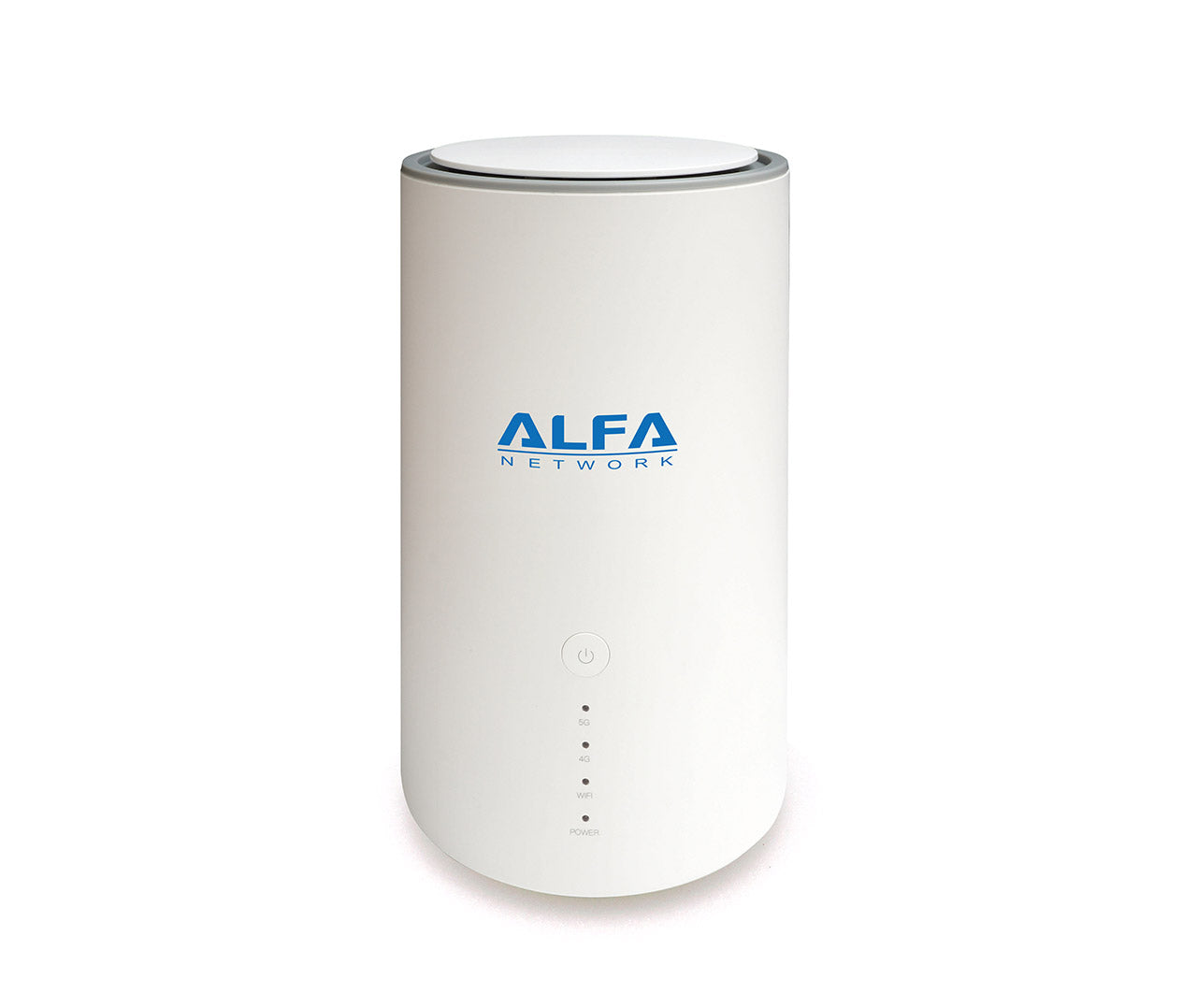

AX36RQ-X55 is the most advanced home gateway, with 5G Sub-6G modem and 802.11ax WiFi built-in
With drastically increased speed, thanks to 5G Next Radio and 2.5 Gbps Ethernet features, compact size and fast ARM based platform, this gateway is a perfect choice for home users looking for fastest mobile or stationary data communication.
WiFi 6 with up to 3.6 Gbps throughput, dual Ethernet (2.5 and 1 Gbps), 4×4 MIMO antenna configurations (modem and WiFi), optional phone support and TS9 antenna connectors for modem, allow to use this product in various of applications.
General specifications
| Parameter | Value |
|---|---|
| Main SOC | Qualcomm™ IPQ8072A (2.2 GHz quad-core ARM™ Cortex-A53) |
| 5G modem | Qualcomm™ Snapdragon™ X55 (SDX55) |
| RAM | 1 GB of DDR3L |
| Flash | 256 MB of NAND flash |
| WiFi | 802.11b/g/n/ax 4T4R 2.4 GHz (up to 1200 Mbps) 802.11a/n/ac/ax 4T4R 5 GHz (up to 2400 Mbps) |
| Ethernet | 1x 2.5 Gbps Ethernet (Qualcomm™ QCA8081) 1x 1 Gbps Ethernet (Qualcomm™ QCA8072) |
| Antenna | 8x internal (4 for modem, 4 for WiFi) 2x external (for modem, TS9 connectors, under cover) |
| Phone | 1x RJ11 (optional) |
| SIM | 1x nano SIM (under cover) |
| Button | 1x push-button (WiFi/WPS)1 1x push-button (reset, under cover)1 |
| LED | 1x 5G 1x 4G 1x WiFi 1x power |
| Power supply | DC jack (5.5/2.1 mm) for 12 V DC input |
| Operating humidity | TBA |
| Operating temperature | TBA |
| Dimensions | 116 x 204 mm |
Modem specifications
| Parameter | Value |
|---|---|
| Chipset | Qualcomm™ Snapdragon™ X55 (SDX55) |
| Data rate (download) | Sub-6G: 2.1 Gbps 4G/LTE: 2 Gbps (Cat 20) HSPA+: TBA |
| Data rate (upload) | Sub-6G: 500 Mbps 4G/LTE: 150 Mbps (cat 13) HSPA+: TBA |
| Carrier aggregation (CA) | DL: up to 5 UL: up to 2 |
| 5G Sub-6G bands | n1 (FDD, 2100 MHz n3 (FDD, 1800 MHz) n5 (FDD, 850 MHz) n7 (FDD, 2600 MHz) n8 (FDD, 900 MHz) n20 (FDD, 800 MHz) n28 (FDD, 700 MHz) n41 (TDD, 2500 MHz) n77 (TDD, 3700 MHz) n78 (TDD, 3500 MHz) n79 (TDD, 4700 MHz) |
| 4G/LTE bands | B1 (FDD, 2100 MHz) B3 (FDD, 1800 MHz) B5 (FDD, 850 MHz) B7 (FDD, 2600 MHz) B8 (FDD, 900 MHz) B20 (FDD, 800 MHz) B28 (FDD, 700 MHz) B32 (SDL, 1500 MHz) B34 (TDD, 2000 MHz) B38 (TDD, 2600 MHz) B39 (TDD, 1900 MHz) B40 (TDD, 2300 MHz) B41 (TDD, 2500 MHz) B42 (TDD, 3500 MHz) B43 (TDD, 3700 MHz) B46 (TDD, 5200 MHz) |
| 3G/UMTS bands | TBA |
| Certification | TBA |
Related Products

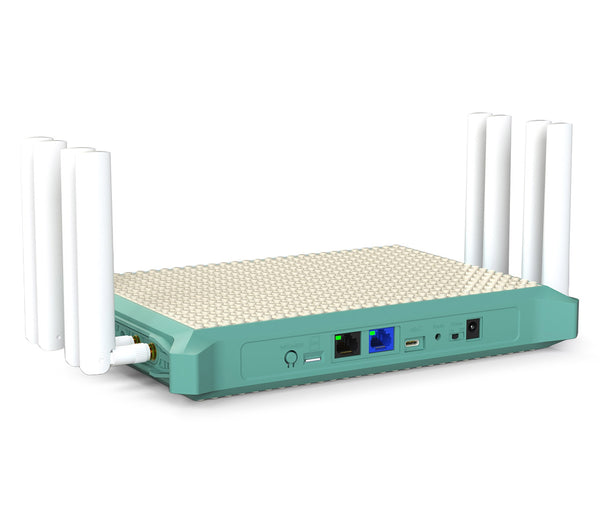

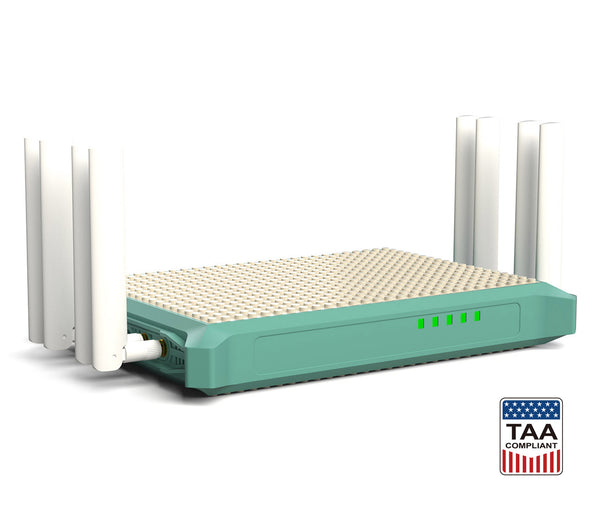

AX5GRM
