HaLow-R

Description

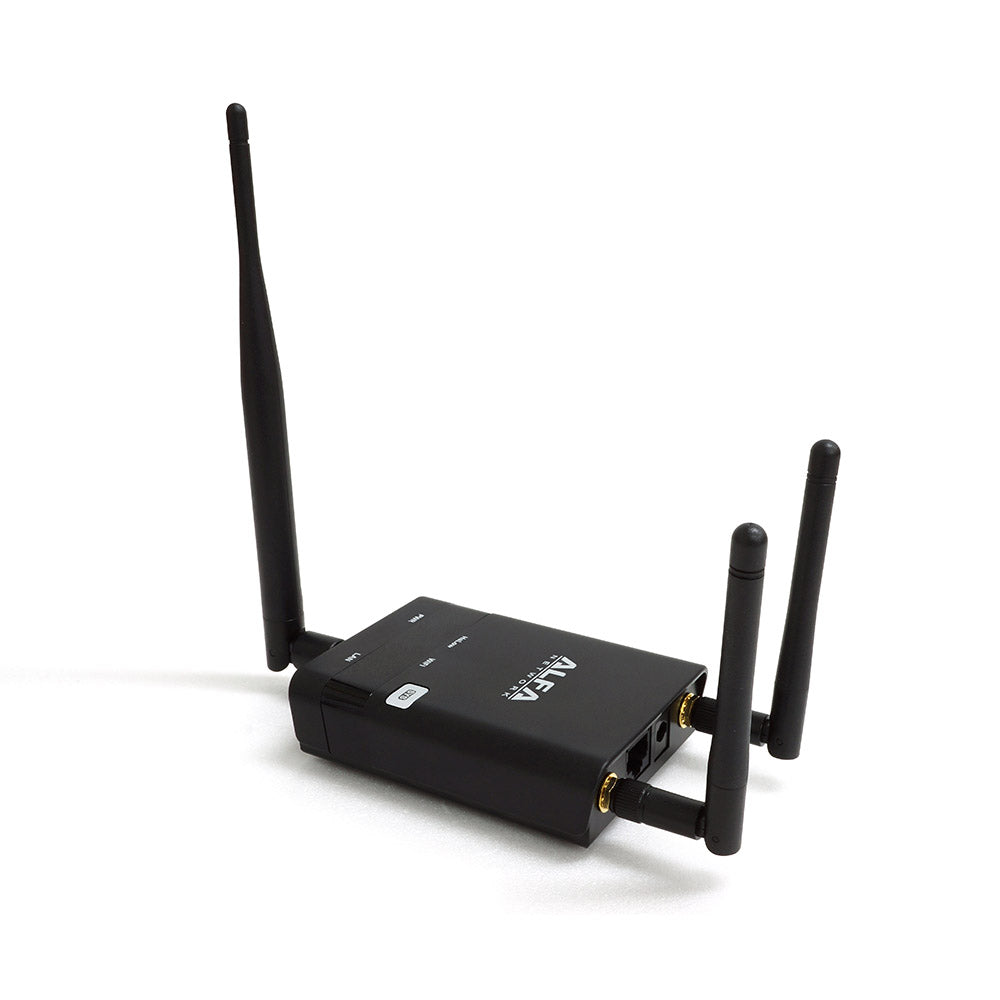

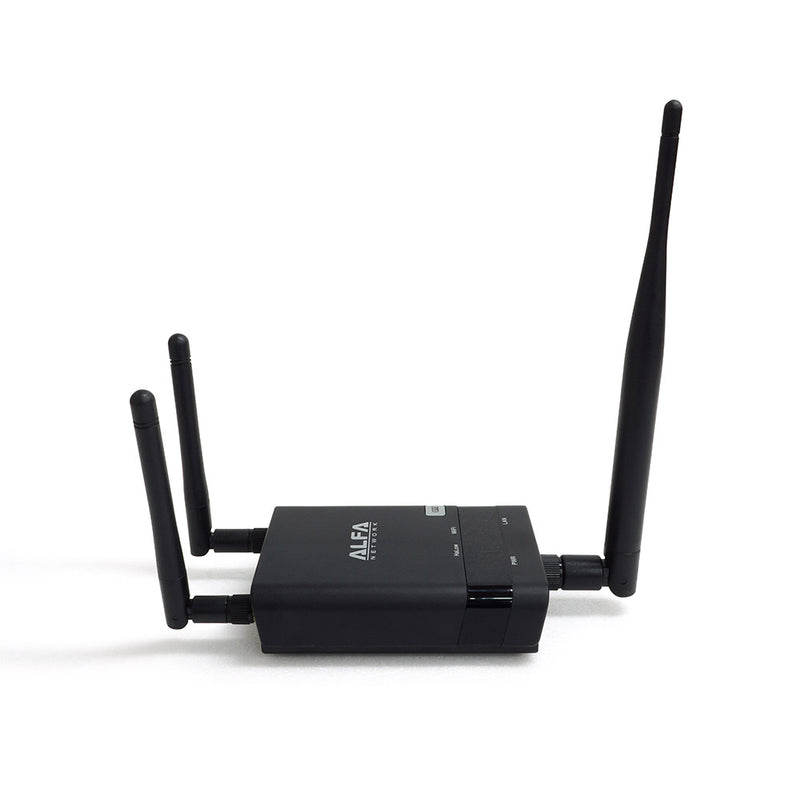

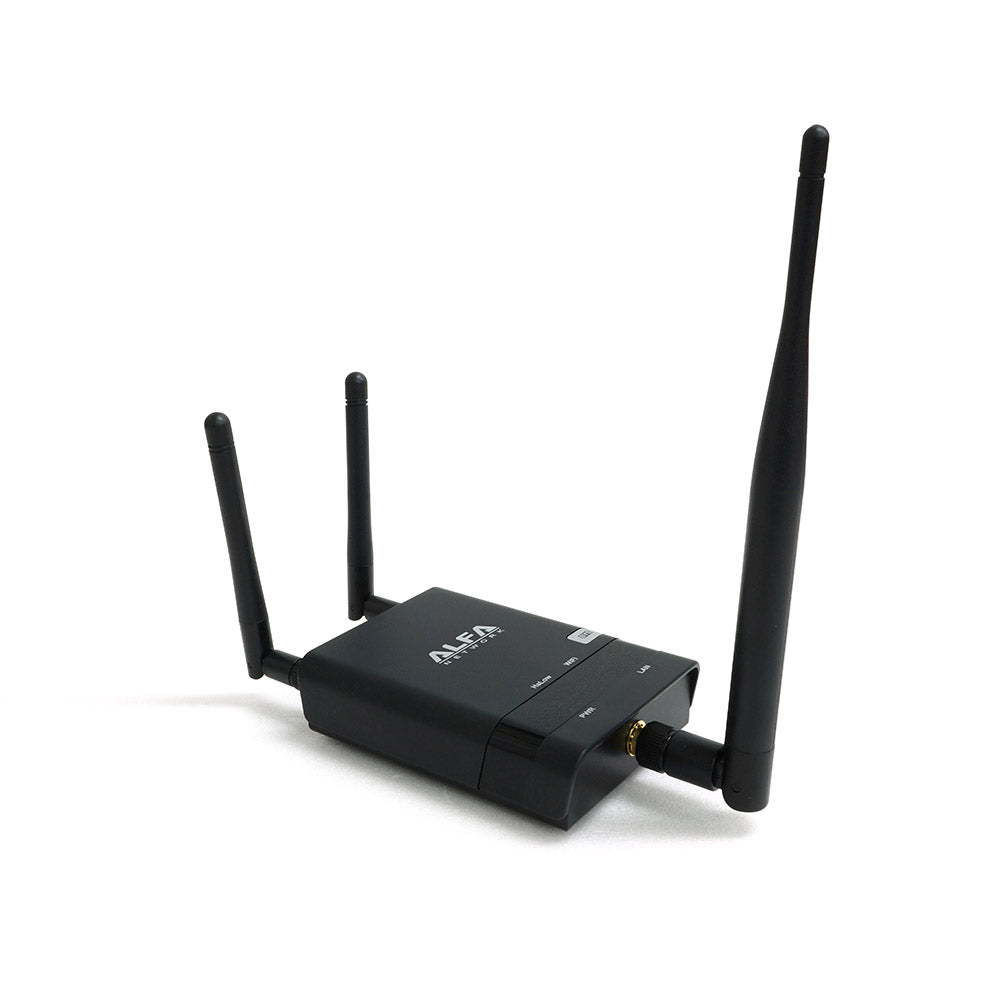

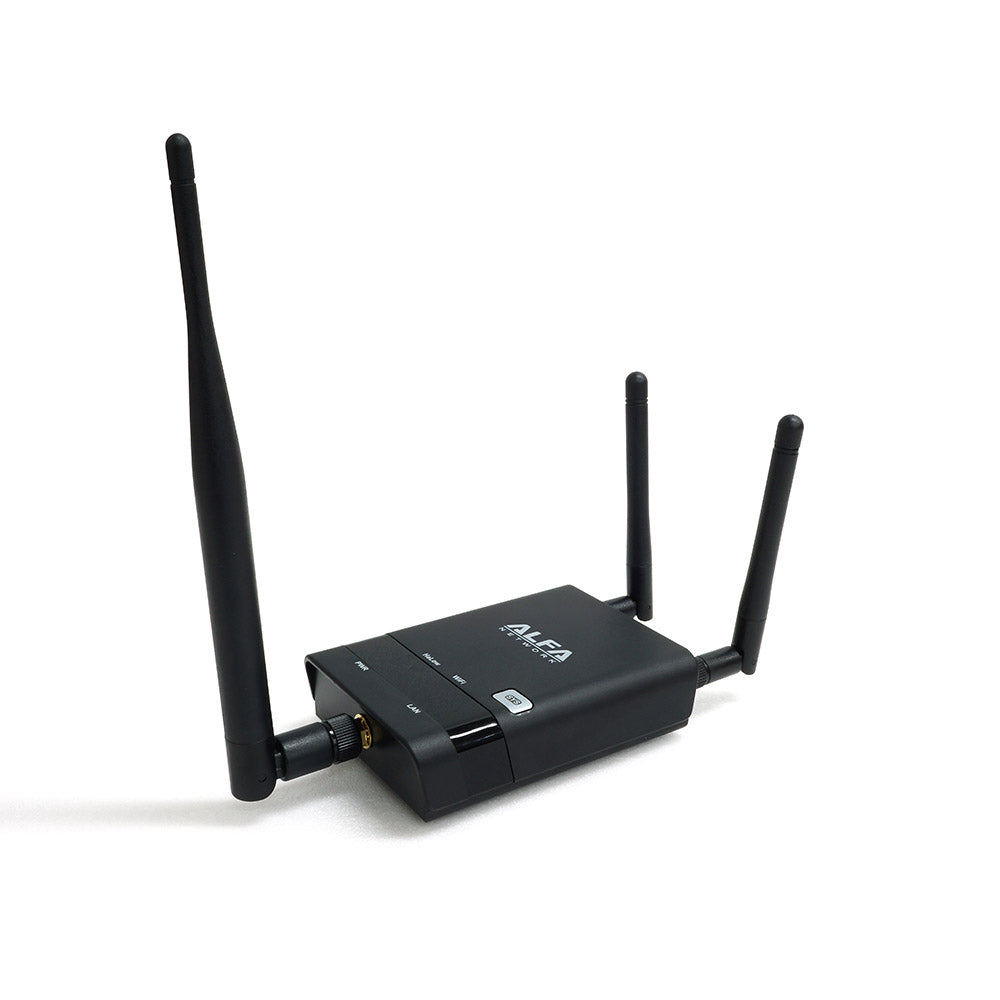

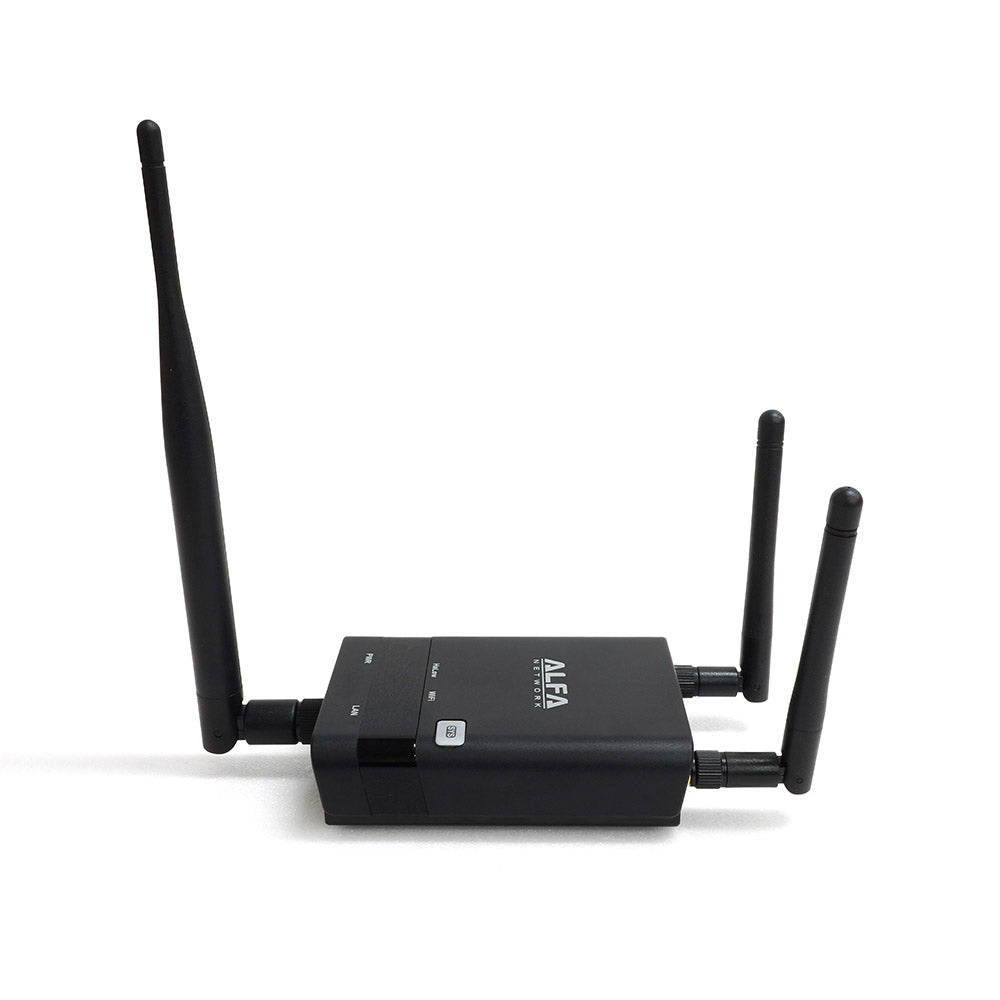

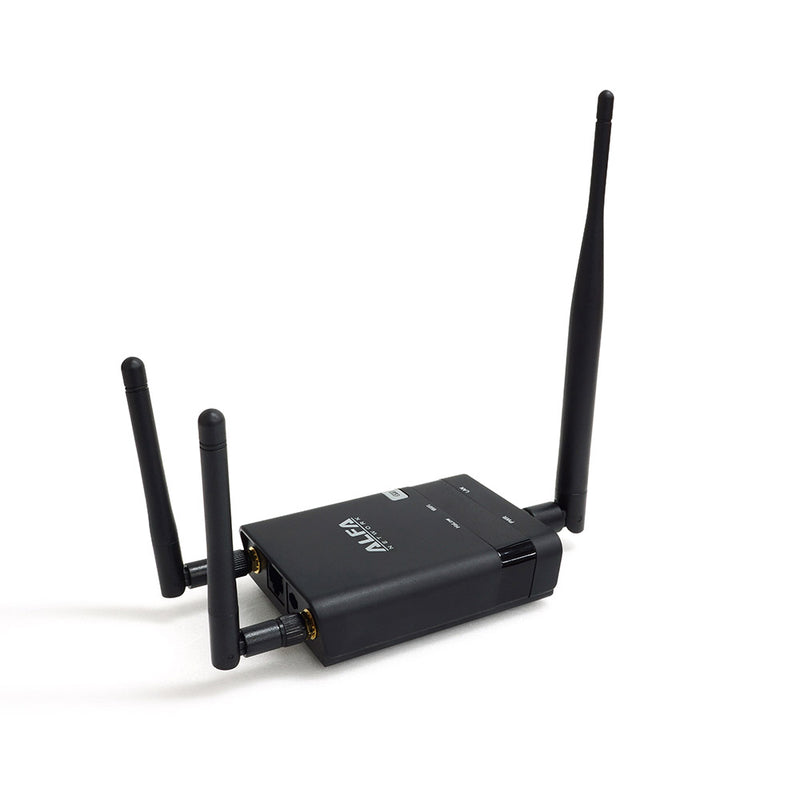

IEEE 802.11ah sub 1 GHz + WiFi 4 Indoor IoT Router

HaLow detachable dipole antenna
HaLow antenna SMA connector
4x LED indicators
MediaTek MT7628 + Morse Micro MM6108
1x Fast Ethernet
2x WiFi 4 antenna RP-SMA connector
2x WiFi 4 detachable dipole antenna

HaLow-R is a WiFi HaLow™ + WiFi 4 Indoor Extender / Router. It allows building long range, ultra-low power WiFi networks in sub 1 GHz license-exempt bands along with popular WiFi 2.4 GHz share Internet connection to laptop or smart phone.

• Applications

Extender Mode
Router Mode Extend existing home WiFi router signal and allow HaLow devices to connect

Router Mode
Extend existing home WiFi router signal and allow HaLow devices to connect As main home WiFi router and allow HaLow devices to connect

Specifications

WiFi 4 (IEEE 802.11n)

Chipset	MT7628
Flash	2 MB
RAM	128 MB
WiFi standard	IEEE 802.11n (2.4 GHz)
Channel bandwidth	WiFi 4: 20/40 MHz
Date rate	300 Mbps
Antenna connector	2x RP-SMA
Antenna	2x 5 dBi dipole antenna

HaLow (IEEE 802.11ah)

Chipse	Morse Micro MM6108
WiFi Standard	IEEE 802.11ah (868/915 MHz)
Channel bandwidth	1/2/4/8 MHz
Date rate	150 kbps ~ 15 Mbps
Antenna connector	1x SMA
Antenna	1x 3 dBi dipole antenna

General

Ethernet	1x Fast Ethernet with ESD protection
Button	1x push-button (reset)
LED	1x Power 1x Ethernet 1x WiFi 1x HaLow 1x Reset / System
Power supply	DC 12V / 1A
Software	OpenWrt-firmware with source available

Order Information

Order Model Information

HaLow-R /US

HaLow-R /EU

HaLow-R /TW

HaLow-R /KR

HaLow-R /JP

902 MHz – 928 MHz

863 MHz – 868 MHz

920.5 MHz – 924.5 MHz

917.5 MHz – 923.5 MHz

916.5 MHz – 923.5 MHz

26 MHz

5 MHz

4 MHz

6 MHz

7 MHz
