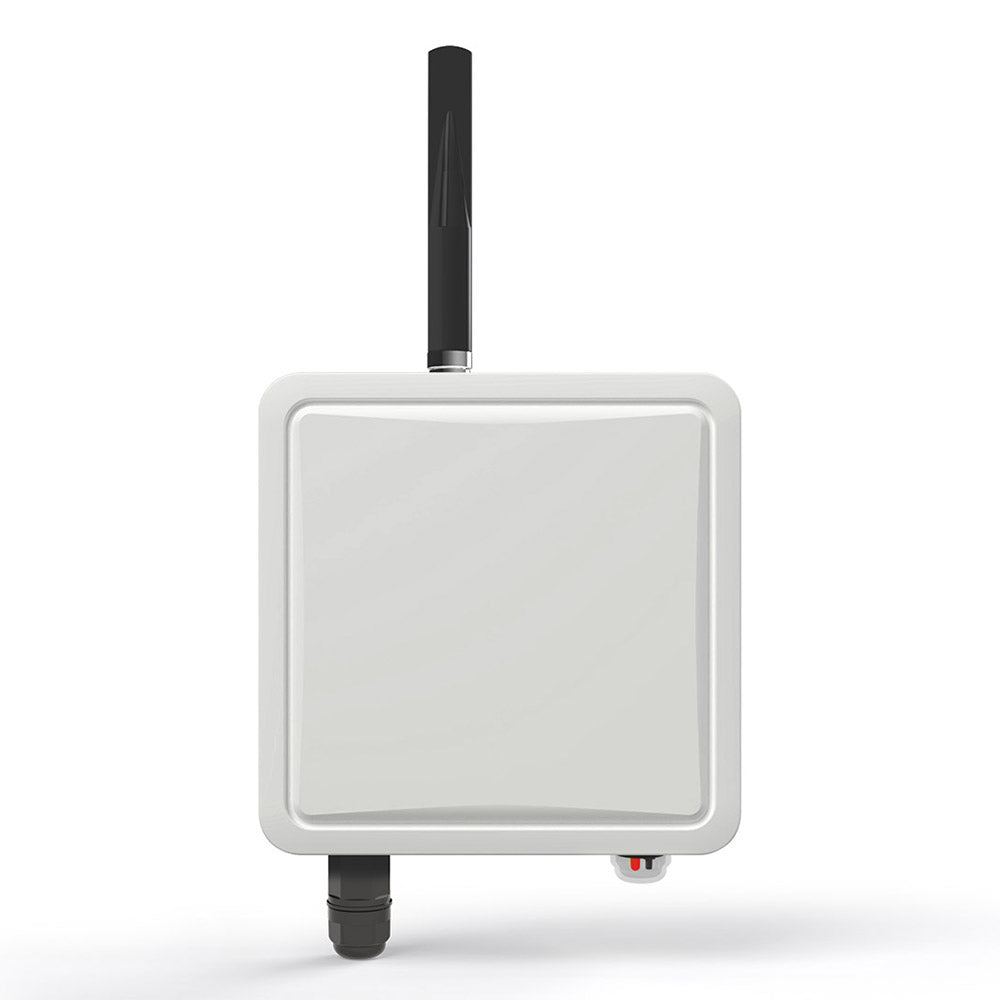

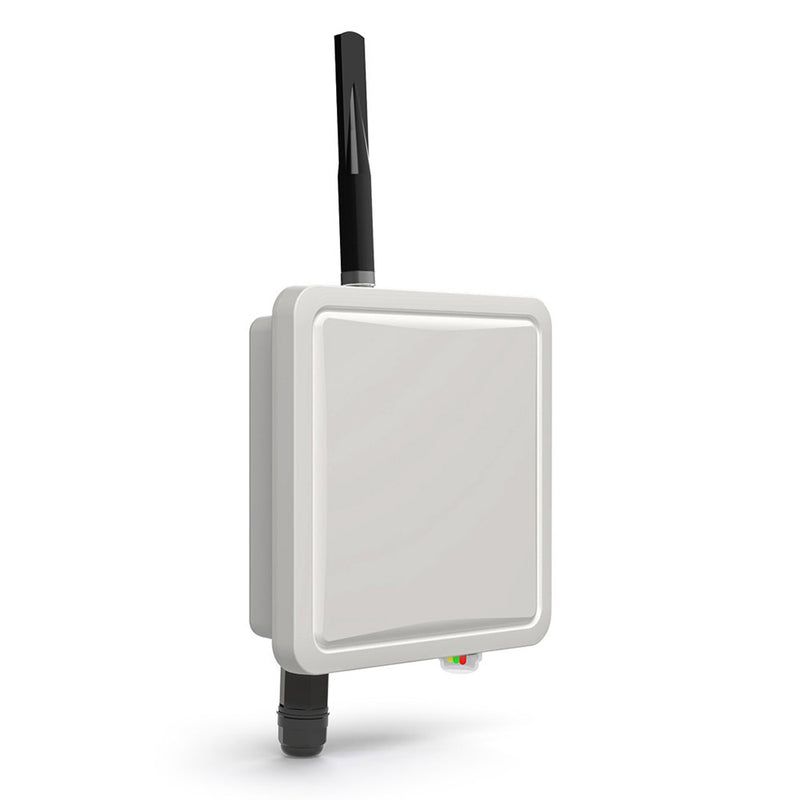

Solo-AHM

Solo-AHM is the outdoor Wi-Fi HaLow AP with integrated 2.4 GHz Wi-Fi. It’s engineered for vast areas and harsh environments. Wi-Fi HaLow technology delivers kilometer-range
transmission, making it perfect for smart agriculture, large-scale logistics, and demanding IoT applications.

Key Features

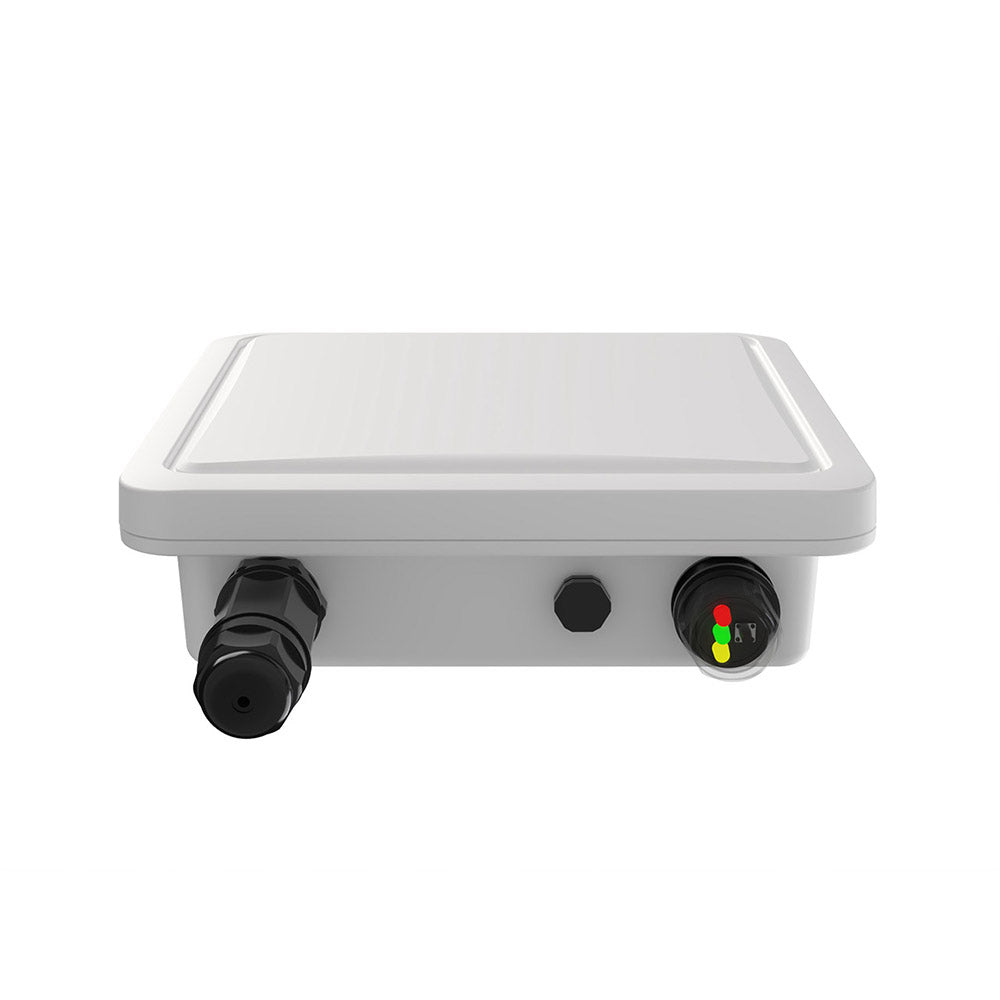

External N female connector for HaLow
Built-in 2x Wi-Fi 2.4 GHz omni antenna
Input standard 802.3at/af PoE
Waterproof vent
Waterproof LED & reset button
Waterproof IP67 design
HaLow Omni Antenna

Specifications

General
CPU			MediaTek MT7628
Flash			32 MB
RAM			128 MB
Ethernet			1x PoE Ethernet port
Button			1x push-button (reset)
LED			1x Power 1x HaLow 1x Reset / System
Power supply			802.3at/af PoE (Package includes PSE-1000GU)
Software			OpenWrt-firmware with source availabl
Wi-Fi HaLow (IEEE 802.11ah)
Chipset	Morse Micro MM6108
WiFi Standard	IEEE 802.11ah (868/915 MHz)
Channel bandwidth	1/2/4/8 MHz
Date rate	150 kbps ~ 15 Mbps
Antenna connector	1x N female
Antenna	Package includes 1x 5 dBi Omni Antenna
Wi-Fi 4 (IEEE 802.11n)
WiFi standard		IEEE 802.11n (2.4 GHz)
Channel bandwidth		WiFi 4: 20/40 MHz
Date rate		300 Mbps
Antenna		Built-in 2x 5 dBi omni antenna
